use and maintenance Pegaso 650 I.E.
2%-/6!,/&4(%&5%,4!.+
Carefully read p. 27 (FUEL) and p. 55
(MAINTENANCE).
aWARNING
Risk of fire.
Wait until the engine and the exhaust si-
lencer have completely cooled down.
Fuel vapours are noxious for your
health.
Before proceeding, make sure that the
room in which you are working is prop-
erly ventilated.
Do not inhale fuel vapours.
Do not smoke and do not use naked
flames.
DO NOT DISPOSE OF FUEL IN THE EN-
VIRONMENT.

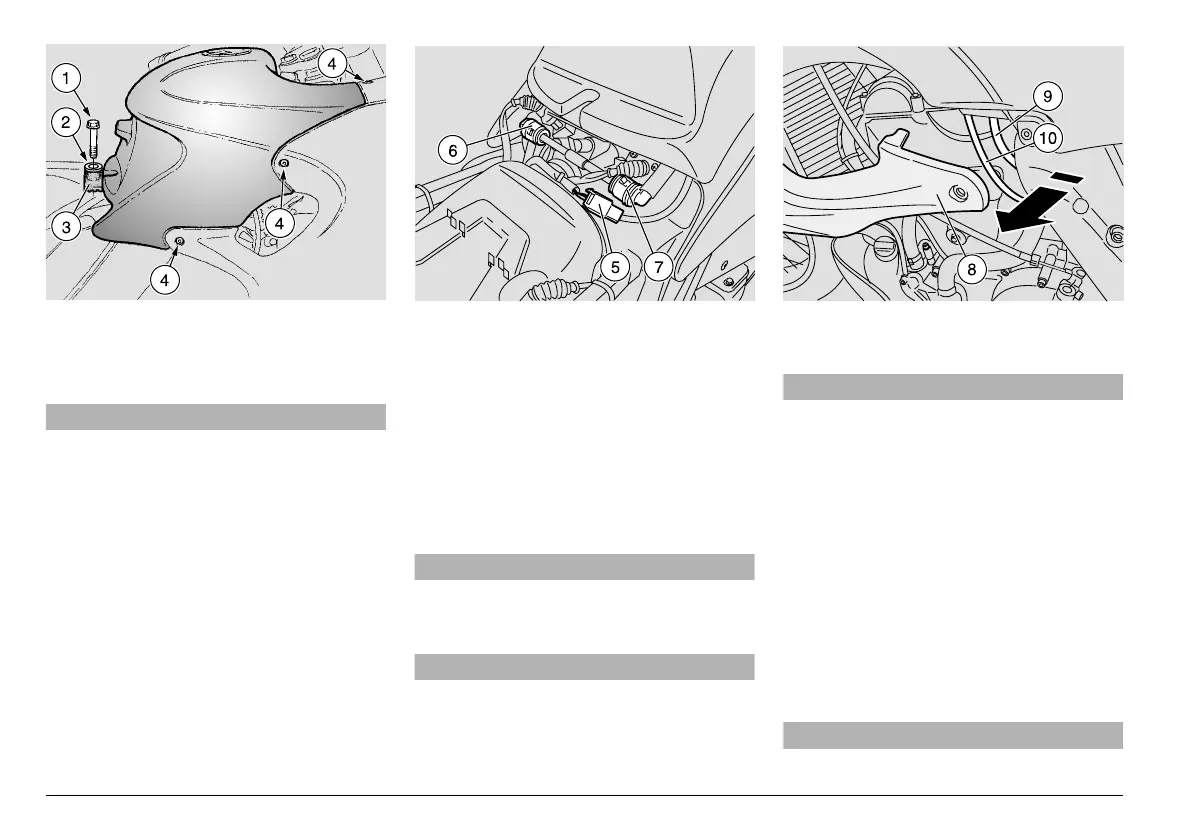

◆ Turn the ignition switch to position “1”.
◆ Remove the rider saddle, see p. 21 (UN-
LOCKING/LOCKING THE SADDLE).
◆ Unscrew and remove the centre screw
(1).
◆ Take the washer (2) and the rubber pad
(3).
~Unscrew and remove the three screws
(4).
◆ Disconnect the electric connector (5)
from the fuel pump.
aCAUTION
Upon reassembly, make sure that the
electric connector (5) is correctly cou-
pled.
aWARNING
Position a clean cloth under the rapid
couplings (6) and (7), in order to absorb
the small quantity of fuel that will flow
out of them after disconnection.
◆ Release and disconnect the rapid cou-
plings (6) (7).
aWARNING
Upon reassembly, make sure that the
rapid couplings (6) (7) are inserted cor-
rectly.
Working from the left-hand side of the
vehicle:
◆ Move the fairing (8) moderately towards
the outside.
NOTE Mark the two pipes (9) (10) in order
to be able to insert them in the relevant union
upon reassembly.
◆ Withdraw the two pipes (9) (10) down-
wards:
– pipe (9) = fuel tank overflow;
– pipe (10) = water drainage from tank
cap.
aWARNING
When reassembling, make sure the
pipes are plugged in properly (9) (10).
