use and maintenance Pegaso 650 I.E.
aCAUTION
Handle the plastic and painted compo-
nents with care to avoid scraping or
damaging them.

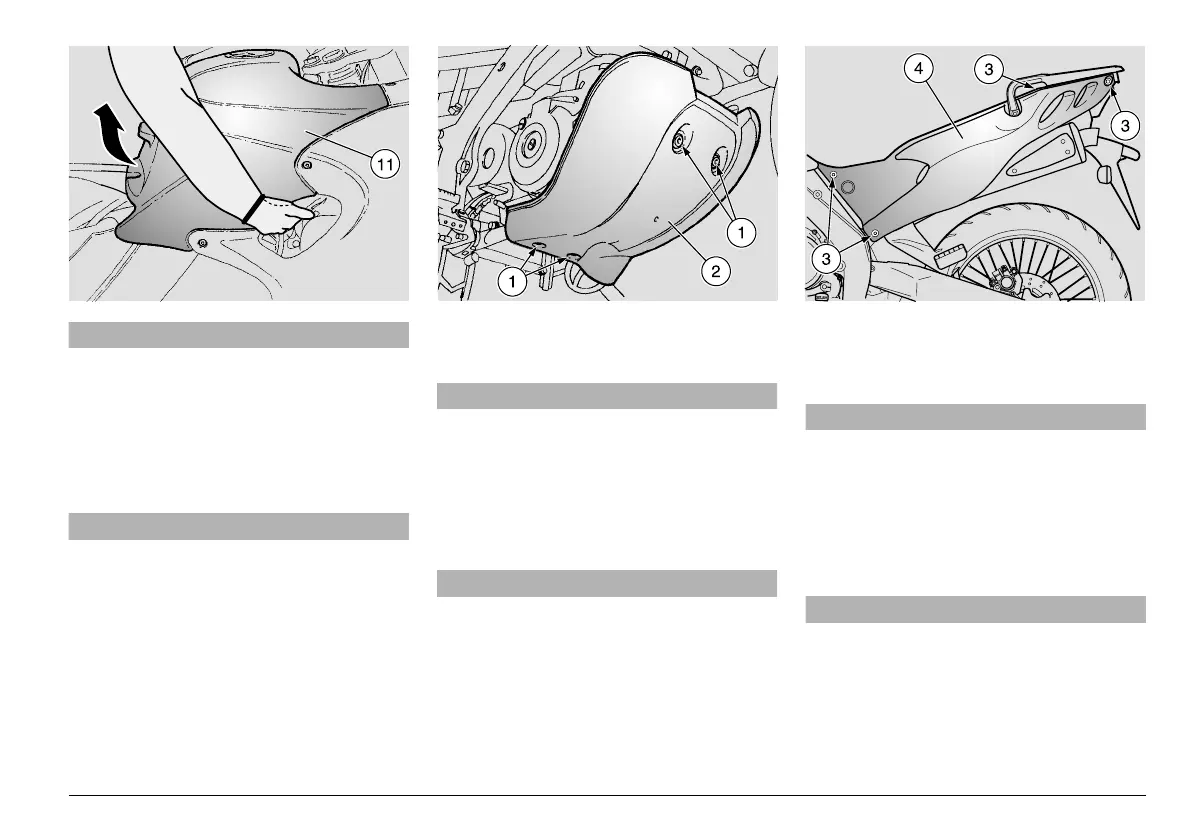

◆ Grasp the tank (11) and, pulling it back-
wards, withdraw it from the two front sup-
ports.
◆ Raise and remove the tank (11).
aWARNING
Position the tank in a safe place, with
the cap facing upwards; neither over-
turn, nor tilt it, since the fillercap is not
tight and the fuel would flow out of the
tank.
2%-/6).'4(%/),35-0'5!2$
Carefully read p. 55 (MAINTENANCE).
aWARNING
Wait until the engine and the exhaust si-
lencer have completely cooled down.
◆ Position the vehicle on the stand, see p.
52 (POSITIONING THE VEHICLE ON
THE STAND).
◆ Unscrew and remove the four screws
(1).
aCAUTION
Handle the plastic and painted compo-
nents with care to avoid scraping or
damaging them.
◆ Remove the oil sump guard (2).
NOTE If the deadening material inside
the oil sump guard (2) is deteriorated, con-
tact an aprilia Official Dealer to have it
changed.
2%-/6).'4(%2)'(4!.$,%&4
3)$%3
Carefully read 55 (MAINTENANCE).
aWARNING
Wait until the engine and the exhaust si-
lencer have completely cooled down.
◆ Remove the saddle, see p 21 (UNLOCK-
ING/LOCKING THE SADDLE).
◆ Unscrew and remove the four screws
(3).
◆ Remove the side cover (4).
aCAUTION
Handle the plastic and painted compo-
nents with care to avoid scraping or
damaging them.
NOTE If the heat-resistant material in-
side the oil sump guard (4) is deteriorated,
contact an aprilia Official Dealer to have it
changed.
