74
use and maintenance Pegaso 650 I.E.
2%-/6).'4(%$2)6%#(!).
'5!2$3
Carefully read 55 (MAINTENANCE).
◆ Position the vehicle on the stand, see p.
52 (POSITIONING THE VEHICLE ON
THE STAND).

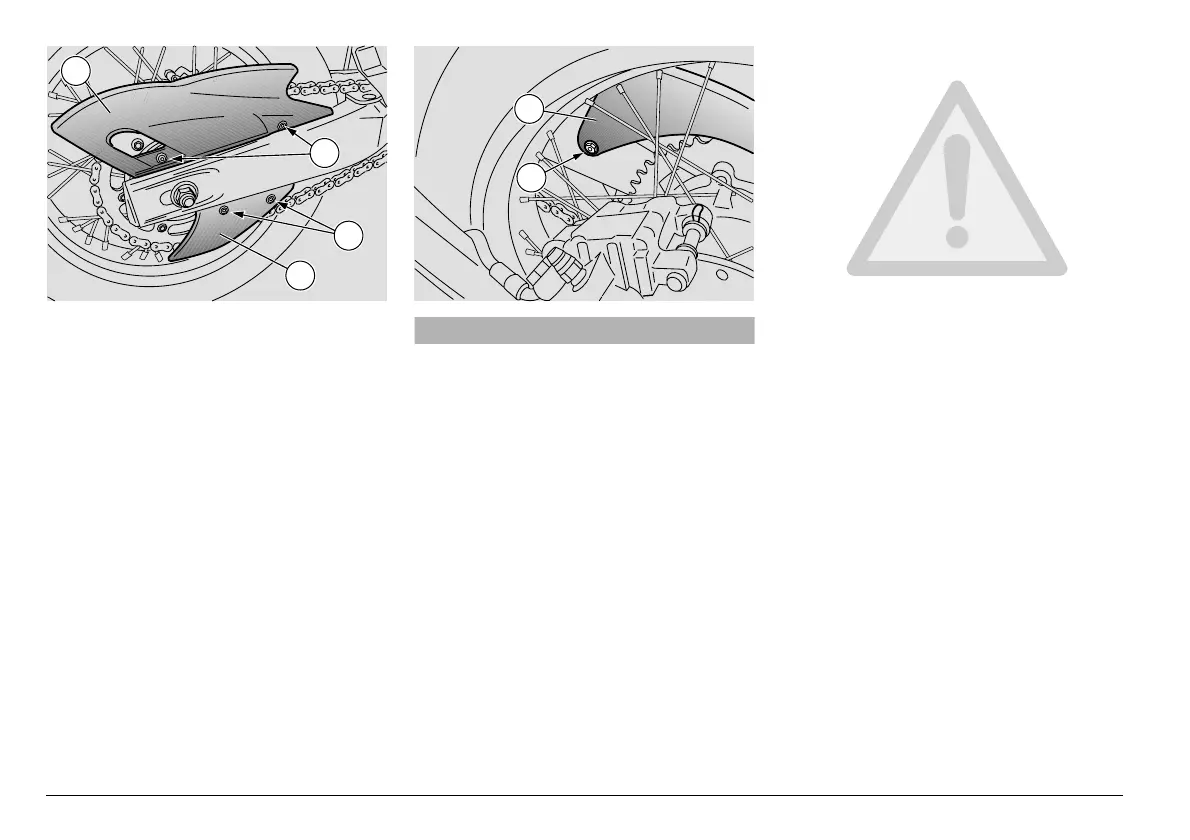

◆ Unscrew and remove the two screws (1).
◆ From the opposite side, unscrew and re-
move the screw (2).
aCAUTION
Handle the plastic and painted compo-
nents with care to avoid scraping or
damaging them.
◆ Lift and remove the upper guard (3).
◆ Unscrew and remove the two screws (4).
◆ Remove the lower protection element
(5).
).34!,,).'4(%3)$%"!'
3500/243mSUPPLIEDAS
STANDARDEQUIPMENTINTHE
COUNTRIESWHEREREQUIRED
NOTE If also the rear case supports
must be installed beside the side bag sup-
ports, it is necessary to install the former
first, see p. 76 [INSTALLING THE REAR
CASE SUPPORTS m (supplied as stand-
ard equipment in the countries where re-
quired)].
Carefully read 55 (MAINTENANCE).
The following parts are supplied togeth-
er with the side bag supports:
– four screws T.E. M8 x 20 (1) (2) with the
relevant washers (3) (4);
– two screws T.C.E.I. M8 x 20 (5);
– two screws T.C.E.I. M8 x 30 (6);
– two spacers (7);
– two front couplings (8);
– two rear couplings (9).
3
1
4
5
2
3
