75
use and maintenance Pegaso 650 I.E.
NOTE The operations marked with ✱ are
not necessary if the rear case supports are
installed.
~Remove the side panels, see p. 73
(REMOVING THE RIGHT AND LEFT
SIDES).

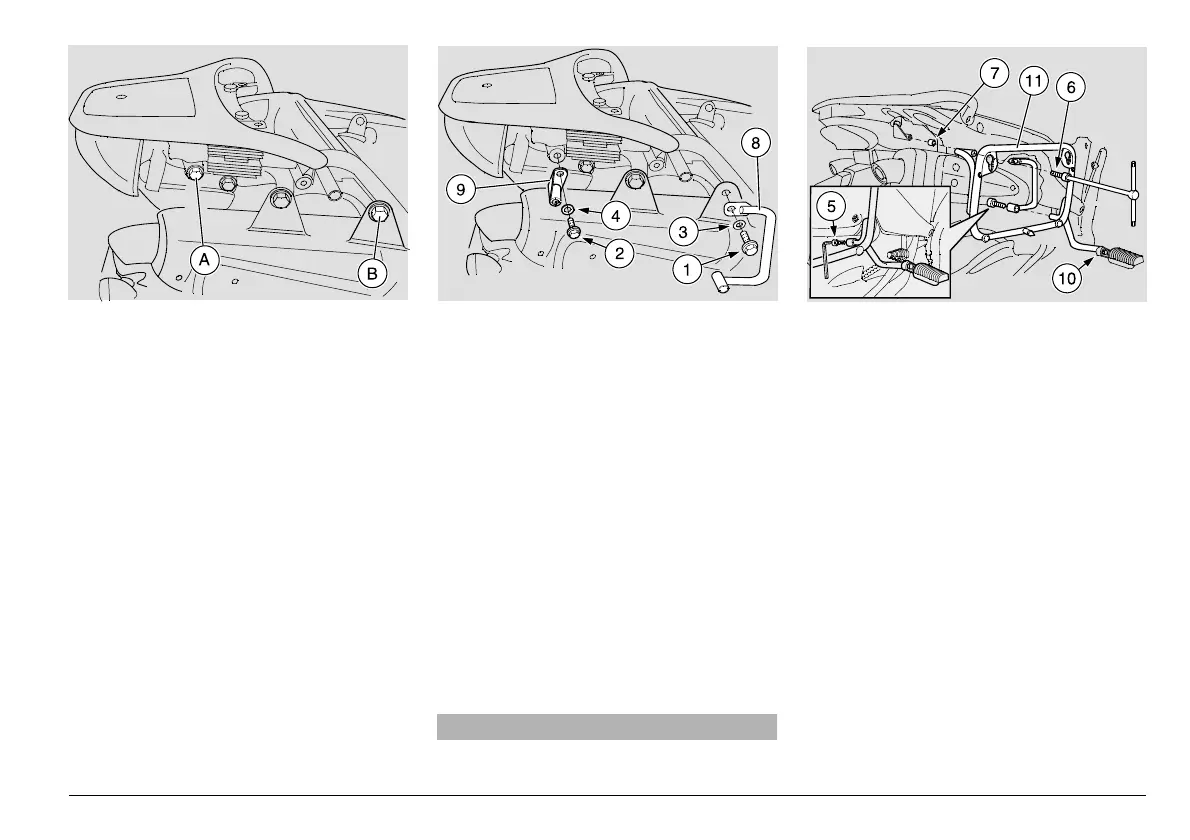

çUnscrew and remove the screw (A).
~Unscrew and remove the screw (B)
and take the washer.
NOTE Take the screws (A) (B) and the
washer and store them in a safe place, so
that if necessary you can use them again.
~Position the front coupling (8).
~Insert the screw (1) with the relevant
washer (3) and screw it manually.
çPosition the rear coupling (9).
çInsert the screw (2) with the relevant
washer (4) and screw it manually.
~Loosen and remove the nut (10) that
fastens the passenger footboard.
~Position the bag support (11).
~Put back the nut (10) and screw it
manually.
çPosition the spacer ring (7).
~Insert the screws (5) (6) and screw
them manually.
~Tighten the screws (5) (6) and the nut
(10), without applying the torque pre-
scribed.
~Tighten the screw (1) and the screw
(2), applying the torque prescribed.
Driving torque of screws (1) (2): 25
Nm (2.5 kgm).
~Unscrew and remove the screws (5)
(6) and the nut (10).
~Remove the bag support (11).
~Put back the side cover, see p. 73
(REMOVING THE RIGHT AND LEFT
SIDES).
aCAUTION
Handle the bag support (11) with care,
and avoid damaging the side.
~Put back the bag support (11).
~Insert and tighten the screws (5) (6),
applying the torque prescribed.
Driving torque of screws (5) (6): 25
Nm (2.5 kgm).
~Put back the nut (10) and tighten it ap-
plying the torque prescribed.
Driving torque of nut (10): 50 Nm (5.0
kgm).
◆ Install the side bags, see p. 24 [SIDE
BAGS m (supplied as standard equip-
ment in the countries where required)].
Check the wear of the coupling pins every
6000 km (3750 mi) or 12 months, and if
necessary have them changed by an april-
ia Official Dealer.
