76
use and maintenance Pegaso 650 I.E.
).34!,,).'4(%2%!2#!3%
3500/243mSUPPLIEDAS
STANDARDEQUIPMENTINTHE
COUNTRIESWHEREREQUIRED
Carefully read 55 (MAINTENANCE).

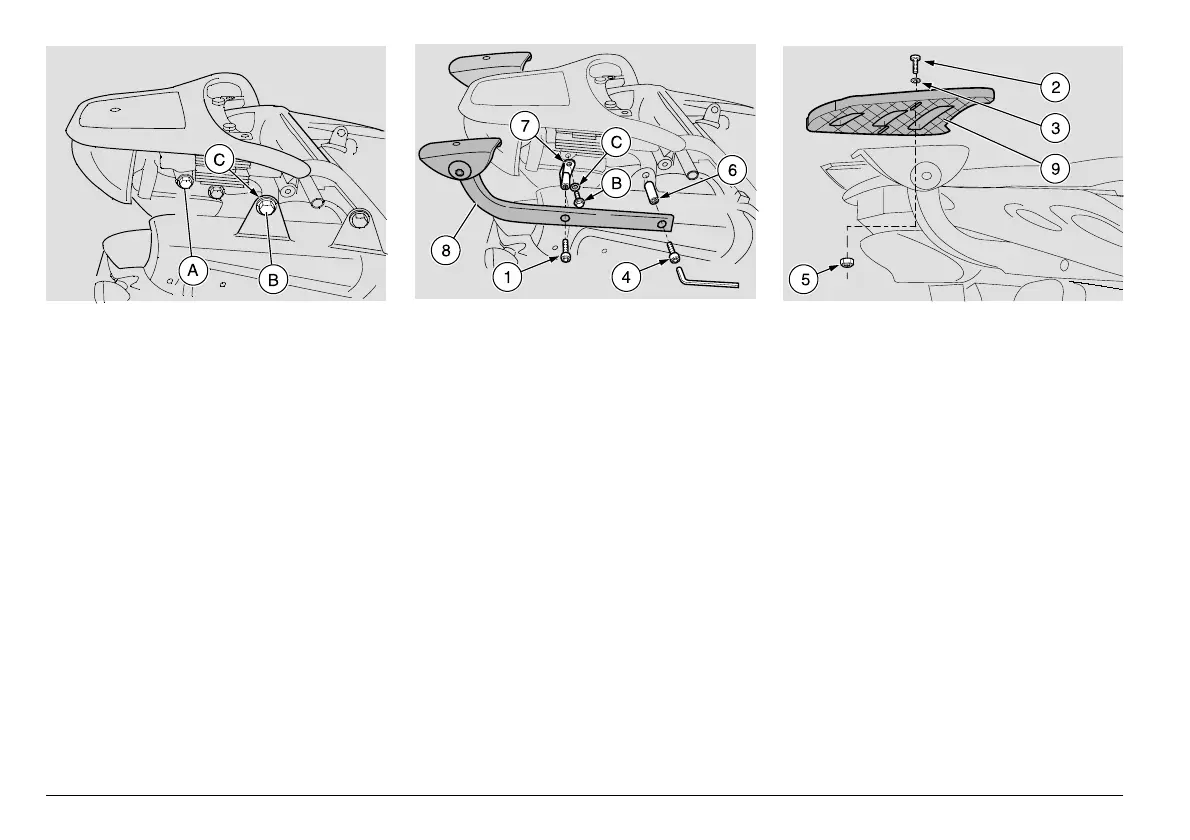

The following parts are supplied togeth-
er with the rear case supports:
– two screws T.C.E.I. M8 x 20 (1);
– two screws T.C.E.I. M8 x 30 (2) with the
relevant washers (3);
– two screws T.C.E.I. M8 x 55 (4);
– two lock nuts (5);
– two spacers (6);
– two rear couplings (7).
NOTE The operations marked with ✱ are
not necessary if the side bag supports are
installed.
~Remove the side panels, see p. 73
(REMOVING THE RIGHT AND LEFT
SIDES).
çUnscrew and remove the screw (A).
~Unscrew and remove the screw (B)
and take the washer (C).
NOTE Take the screw (A) and position it
in a safe place in order to be able to use it
agan if necessary; the screw (B) and the
washer (C) will be reused in the following
operations.
çPosition the rear coupling (7).
çInsert the screw (B) with the relevant
washer (C) and screw it manually.
~Position the spacer ring (6).
~Position the case side support (8).
~Insert the screws (1) (4) and screw
them manually.
~Position the plate (9) on the two side
supports (8).
~Insert one of the screws (2), with the
relevant washer (3).
~Working on the lower side, position the
nut (5) and tighten it manually.
çTighten the screw (B), applying the
torque prescribed.
Screw (B) driving torque: 25 Nm (2.5
kgm).
~Tighten the screws (1) (4) and the nut
(5), applying the torque prescribed.
Driving torque screws (1) (4) and nut
(5): 25 Nm (2.5 kgm).
~Put back the side panels, see p. 73
(REMOVING THE RIGHT AND LEFT
SIDES).
◆ Install the rear case, see p. 26 [REAR
CASE m (supplied as standard equip-
ment in the countries where required)].
Check the wear of the coupling pin every
6000 km (3750 mi) or 12 months, and if
necessary have it changed by an aprilia
Official Dealer.
