ELECTRICAL SYSTEM
6 -23
RSV mille
,)'(433934%-

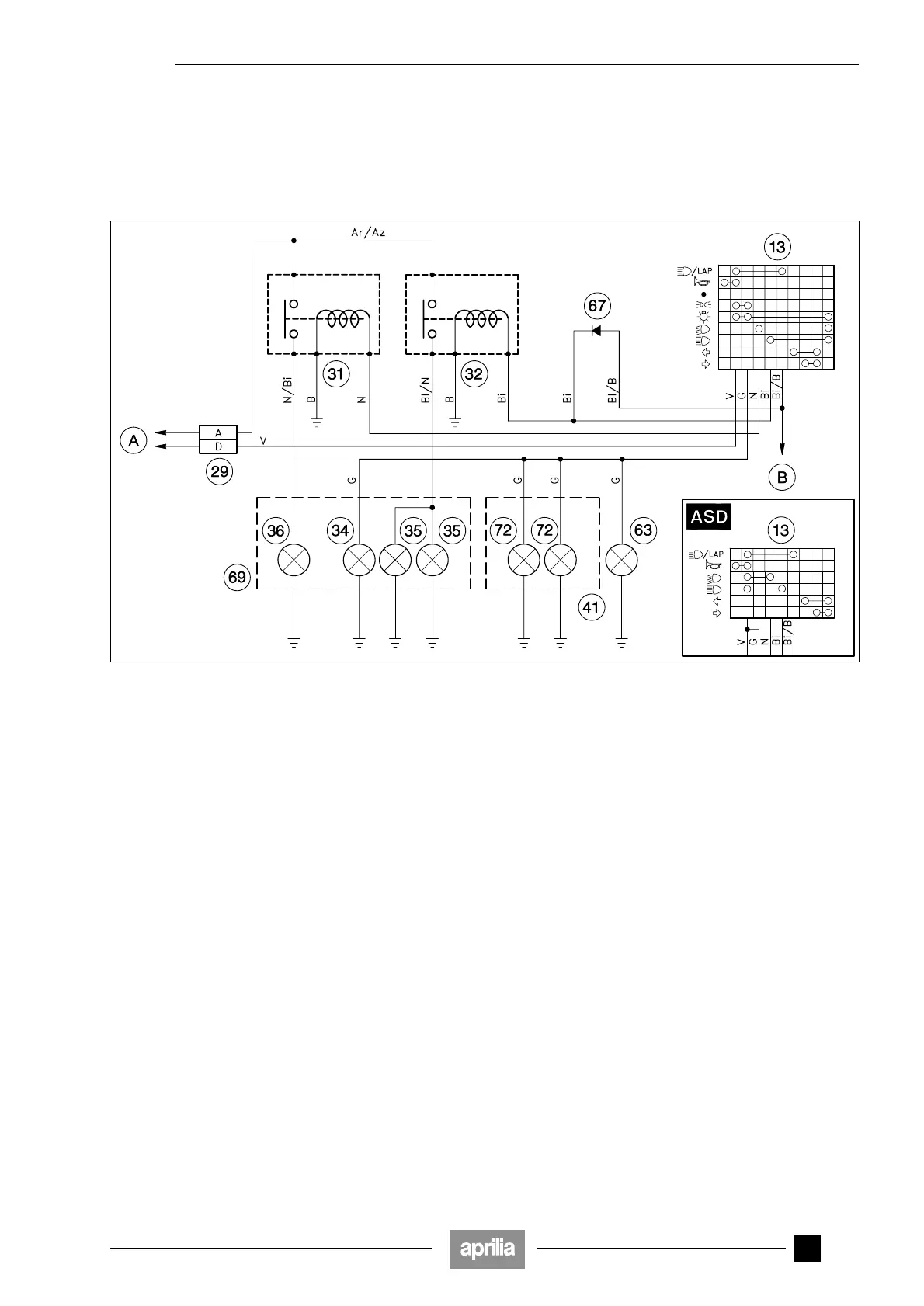

6.8.1 WIRING DIAGRAM
NOTE See 6.2 (ELECTRIC COMPONENTS LAYOUT)
for the positioning of the components.
Wiring diagram key
13) Left dimmer switch
29) Secondary fuses(15 A)
31) Low beam relay
32) High beam relay
34) Front parking light bulb
35) High beam bulbs
36) Low beam bulb
41) Rear light
63) Dashboard bulbs
67) Dimmer switch diode / LAP (multifunction)
69) Headlight
72) Rear parking light / stoplight bulbs
A) To the battery / ignition switch
B) To the right display / chronometer
