APRILIA RSV4 FACTORY Service Station Manual

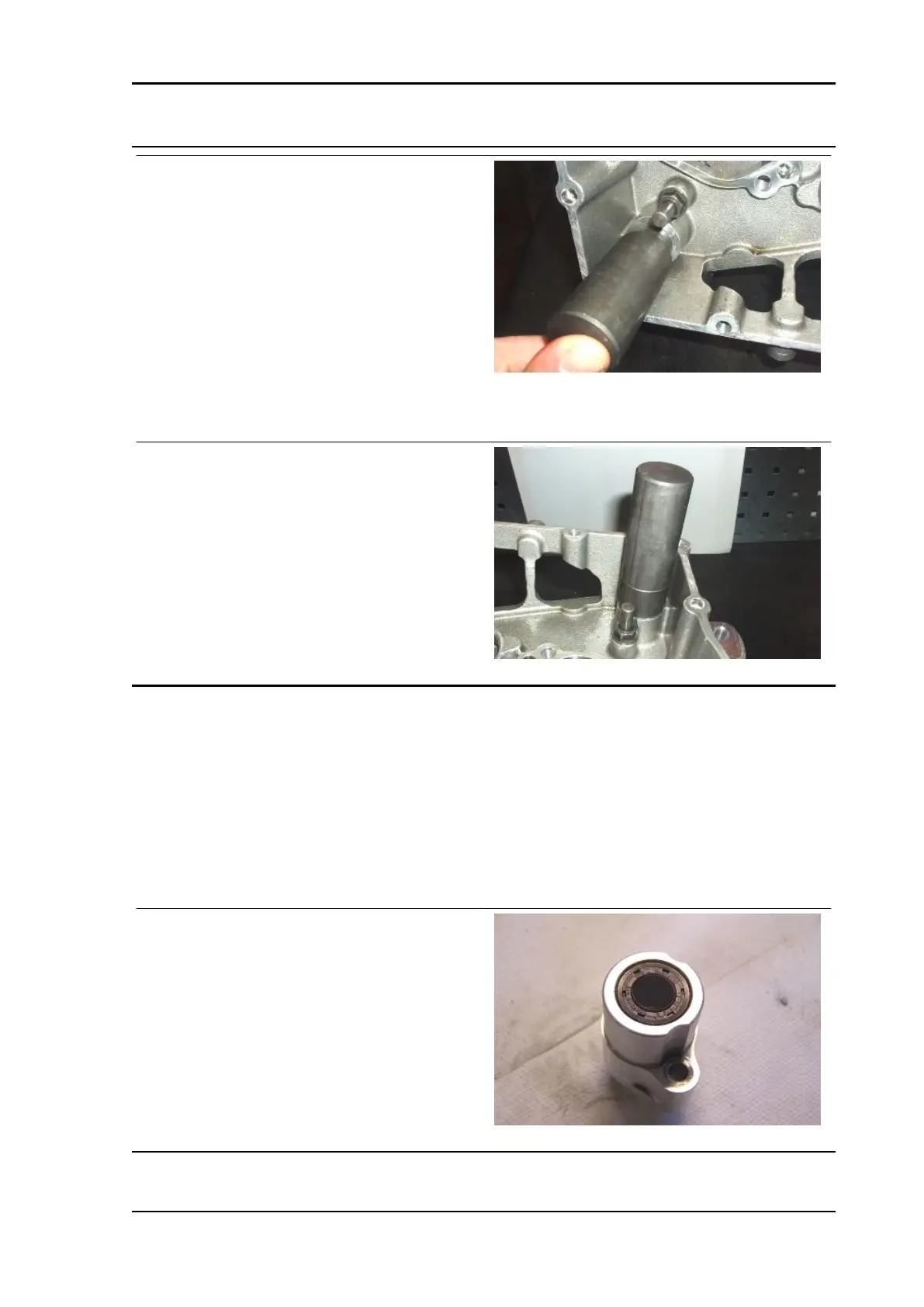

GEARBOX CONTROL ROD ROLLER CAGE,
CLUTCH SIDE
•
Remove the lower crankcase.
•
The specific tool without an adaptor
must be used to remove the gearbox
control rod roller cage from the clutch
side.
Specific tooling
020862Y Gearbox control rod roller cage fitting
punch
•
Fit the adaptor on the specific tool to
insert the roller cage at the controlled
depth.
•
Lubricate the seat and insert the new
roller cage from the clutch side.
Specific tooling
020862Y Gearbox control rod roller cage fitting
punch
GEARBOX CONTROL ROD OIL SEAL AND ROLLER CAGE, SPACER
•
Remove the gearbox control rod spacer.
•
Remove the oil seal and the roller cage.
•
Install a new gearbox control rod roller cage on the spacer, using the specific tool without
an adaptor.
Specific tooling
020862Y Gearbox control rod roller cage fitting punch
•
Position a new oil seal on the spacer
with the writing on the edge of the oil
seal facing outward.
•
Install the oil seal on the spacer using
the specific tool without an adaptor.
Specific tooling
020862Y Gearbox control rod roller cage fitting
punch
RSV4 Factory Engine
ENG - 255

APRILIA RSV4 FACTORY Specifications

General

Displacement	1099 cc
Power	217 HP
Transmission	6-speed
Power RPM	13, 000 rpm
Torque RPM	10, 500 rpm
Seat Height	845 mm
Torque	125 Nm
Front Suspension	Öhlins NIX, 43 mm fully adjustable fork
Rear Suspension	Öhlins TTX36 shock absorber
Front Brakes	Dual 330 mm discs with Brembo Stylema calipers
Rear Brakes	220 mm disc with Brembo caliper
Fuel Capacity	17.9 liters
Fuel System	Electronic fuel injection
ABS	Yes
Frame	Aluminum dual beam
Engine Type	Aprilia longitudinal 65° V4, 4-stroke, liquid-cooled, double overhead camshafts (DOHC), four valves per cylinder
