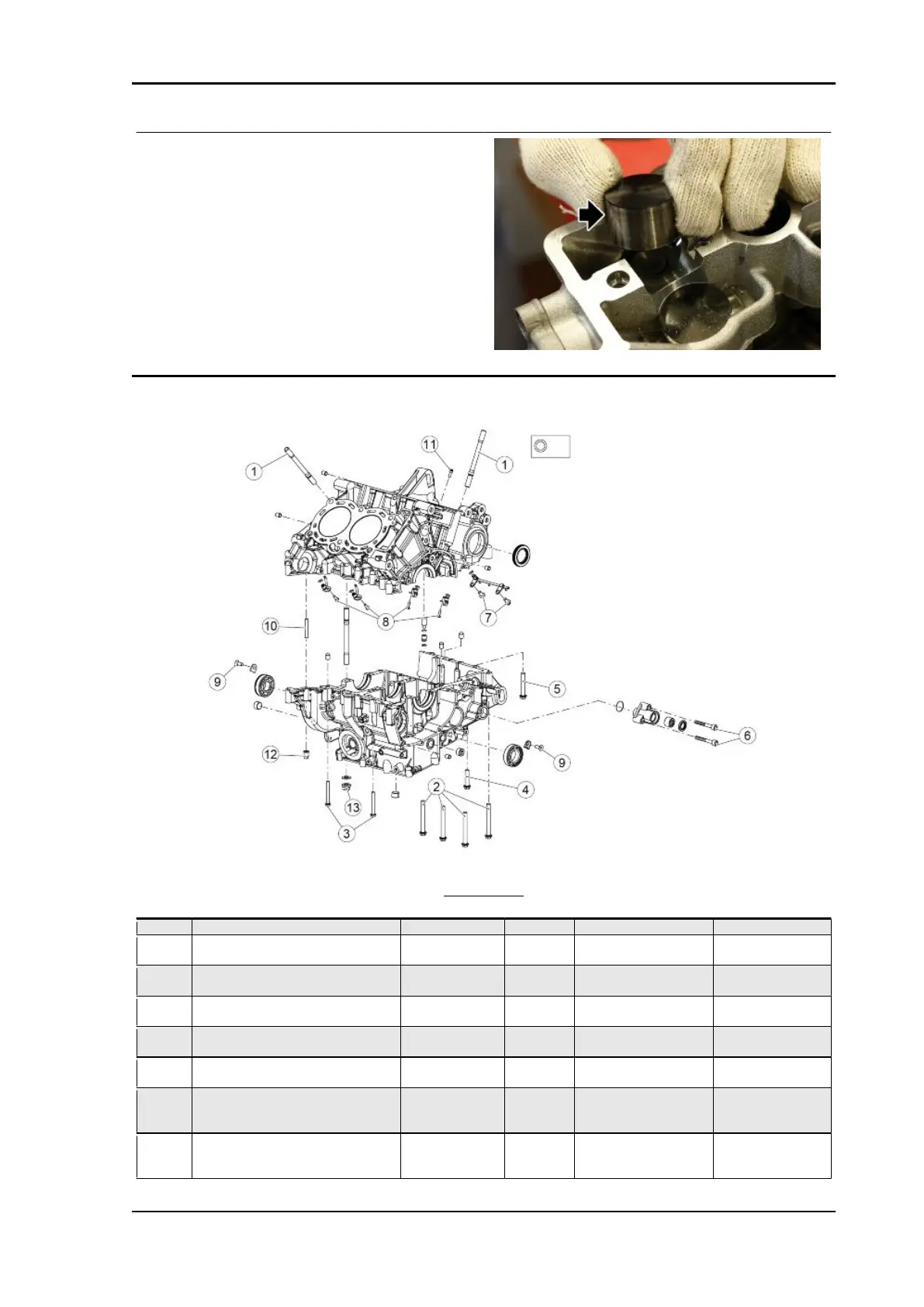

Position the bucket tappets.
Crankcase
CRANKCASE
Pos. Description Type Quantity Torque Notes
1 Stud bolts M10 18 20 Nm (14.75 lb ft) Loct. 270
2 TE Flanged screw M8x70 4 25 Nm (18.44 lb ft) Lubricate the head
and under the head.
3 TE Flanged screw M6x50 8 10 Nm (7.38 lb ft) Lubricate the head
and under the head.
4 TE Flanged screw M8x35 1 25 Nm (18.44 lb ft) Lubricate the head
and under the head.
5 TE Flanged screw M8x50 3 25 Nm (18.44 lb ft) Lubricate the head
and under the head.
6 Gearbox control rod support SHC fix-
ing screws
M6x35 2 10 Nm (7.38 lb ft) Lubricate the head
and under the head.
7 Flanged TE screw fixing fuel rail
gearbox lubrication
M6x12 2 10 Nm (7.38 lb ft) Pre-impregnated
screw and in ab-
sence Loct.2045
8 TB TORX screw 4x12 4 5 Nm (3.69 lb ft) Pre-impregnated
screw, in absence
Loct.2045
RSV4 RR-RF Engine
ENG - 345
