* Hang the cable using the rope to manage
and reduce tension on the cable.
* Disconnect the Head Cable by pulling up on the collar on the connector. This will disengage its locking
mechanism.

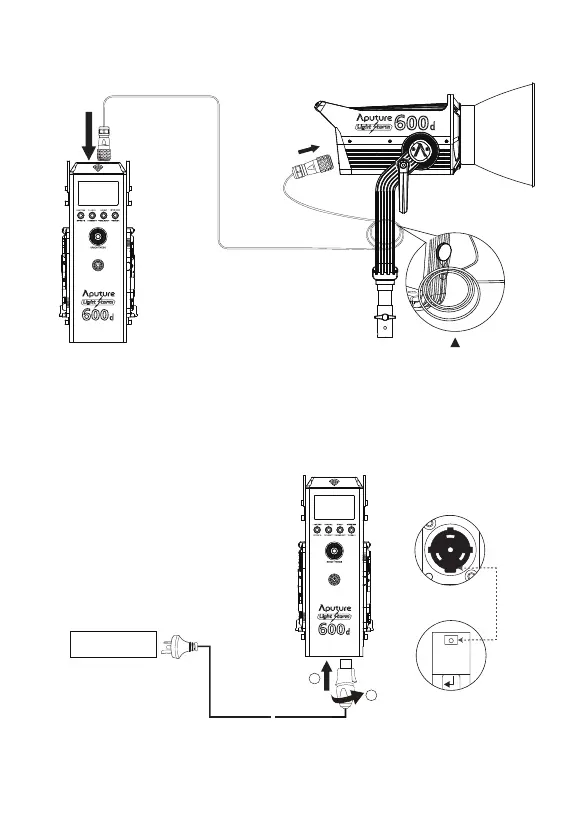

5. Connect the Lamp Head to the control box
Connect the Lamp Head to the control box using the LS 600 Series 5-Pin Head Cable.
1) Powering by AC
6. Powering up the controller
Neutrik® powerCON
Male Connector
Neutrik® powerCON Female
Locking Connector
1
2
AC 100V-240V
~ ~
PUSH
To disconnect the Neutrik® powerCon cable, pull back on the yellow release tab on the
cable connector, and rotate the connector counterclockwise.
