(Primary Data Link)
4.Data 2- (Optional
Secondary Data Link)
5.Data 2+ (Optional
Secondary Data Link)
2. Channel Selection
In DMX mode, match the channel of your DMX controller with the light, and then adjust accordingly.
The default DMX channel is “001”.
The range of DMX channels is 1 to 512.
5. Controlling Device Via DMX

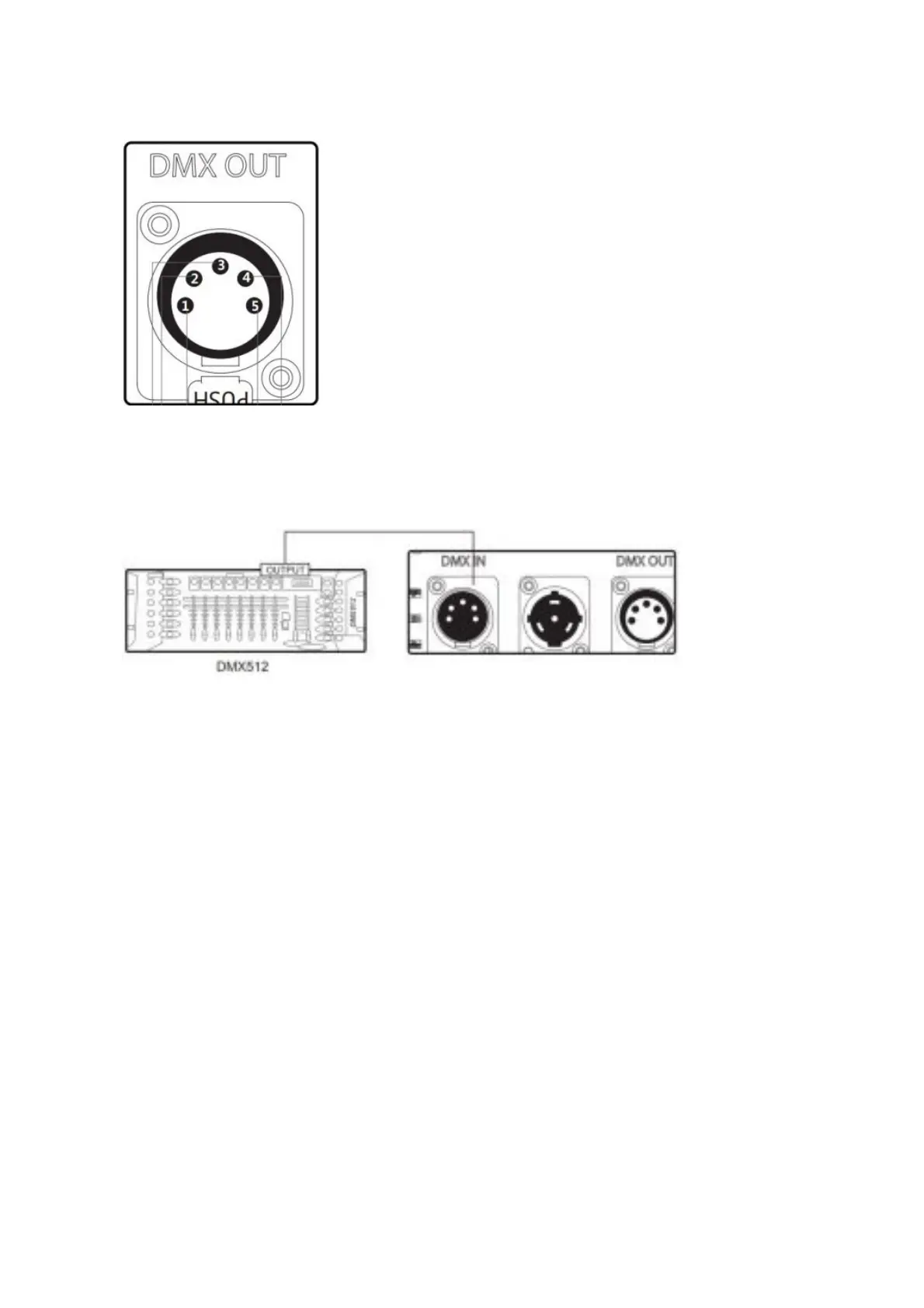

1. Connect the DMX controller’s OUTPUT to the 300x’s controller INPUT as shown in the figure below.
2. DMX Chart
DMX Channel Values / Functions 6 DMX Channels
Channe Value Function
1
0-255
Dimmer
Intensity 0 to 100%
CCT Control
0-5 2700K
6-10 2800K
To Next Page
