Aputure LS 300x - DMX Connectivity - Initial Setup; Connecting a DMX Controller; DMX Interface Schematic

The remote control can only be used to operate lighting eects if the lights are in groups C or D.
4. Connecting to DMX

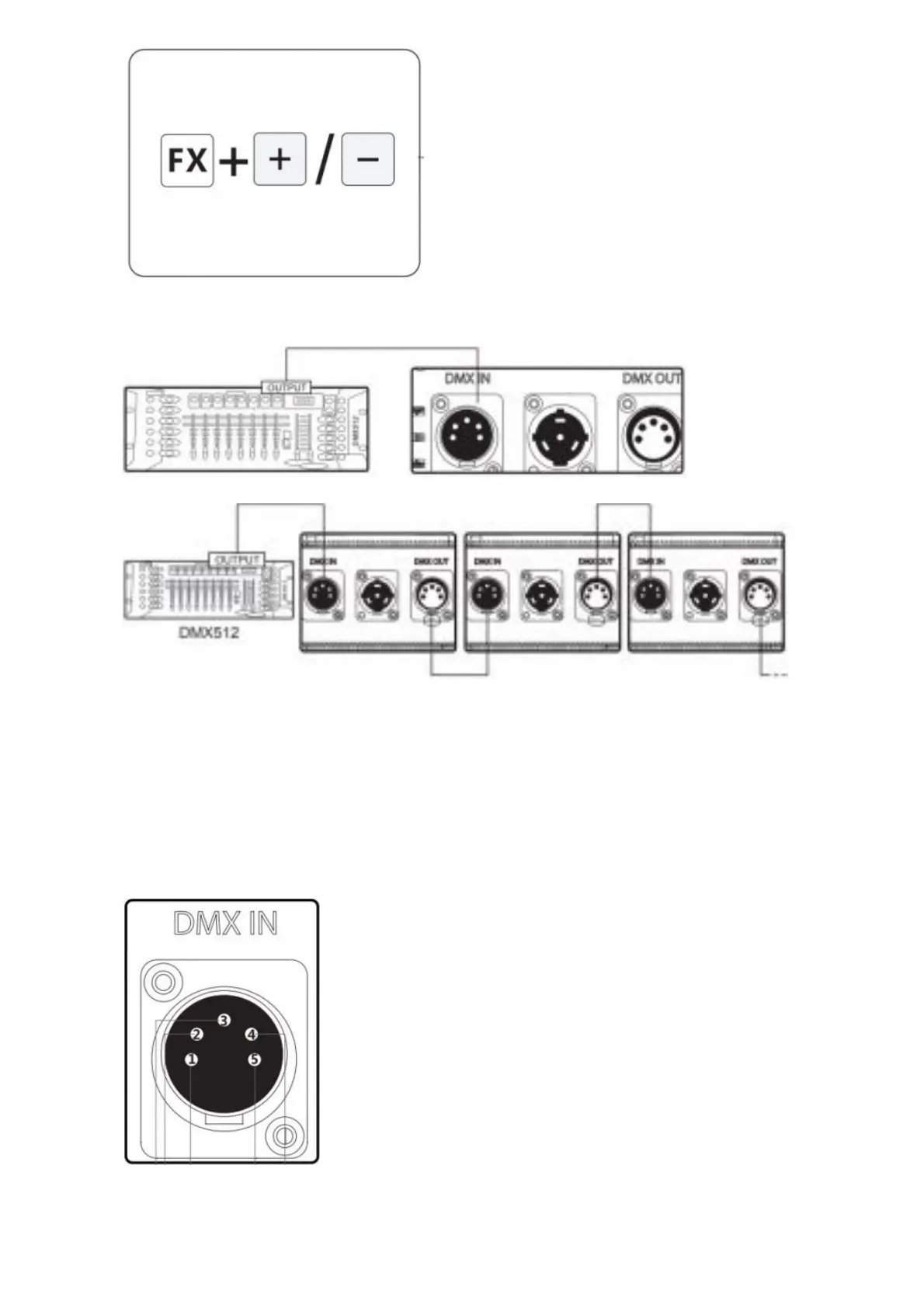

1. Connect a standard DMX controller
Connecting DMX to only one 300x
Daisy chaining multiple lights using DMX
The DMX interface schematic is shown in the pictures below
1.Signal Common
2.Data 1-
(Primary Data Link
3.Data 1+
(Primary Data Link)
4.Data 2-
(Optional Data 1- Secondary Data Link)
5.Data 2+
(Optional Secondary Data Link)
1.Signal Common
2.Data 1-
(Primary Data Link)
3.Data 1+
