Notice: Always remove the protection cover prior to turning on the light. Always re-install the cover when
packing

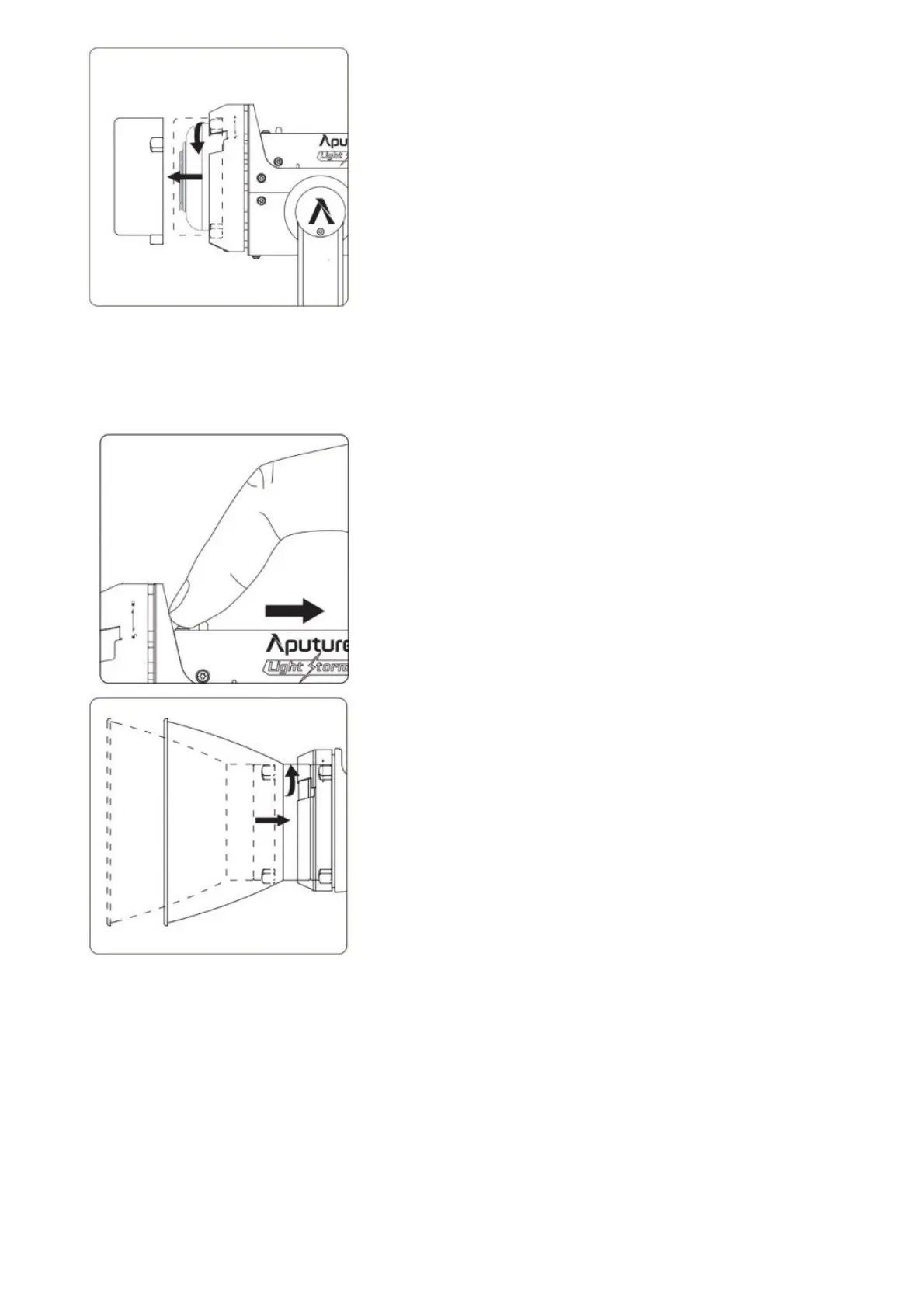

3. Attaching/detaching the Hyper-Reflector
To install the reflector, pull back the retaining pin, insert the reflector into the Bowens mount, and rotate it
counterclockwise as shown in the following pictures. To remove the reflector, pull back the retaining pin and rotate the
reflector clockwise.
4. Setting up the Light
Mount the light onto a light stand, then fix it in place using the T-Handle/Mounting Screw on the Baby Pin
Receiver/Mounting Column (5/8in. / 16mm). Then loosen/tighten the handbrake locking mechanism on the yoke to
adjust the fixture’s angle of tilt.
