AQUASTREAM ULTIMATE
agree to fully indemnify Aqua Computer GmbH & Co. KG for any damages
resulting from such application!
3.
3.3.
3. Scope of delivery
Scope of deliveryScope of delivery
Scope of delivery
● One aquastream ULTIMATE pump
● One internal USB cable (replacement part no. 53085)
● One aquabus/speed signal cable (3 contacts, replacement part no. 93111)
● One ATX adapter for starting the power supply unit (replacement part no.
93112)
4.
4.4.

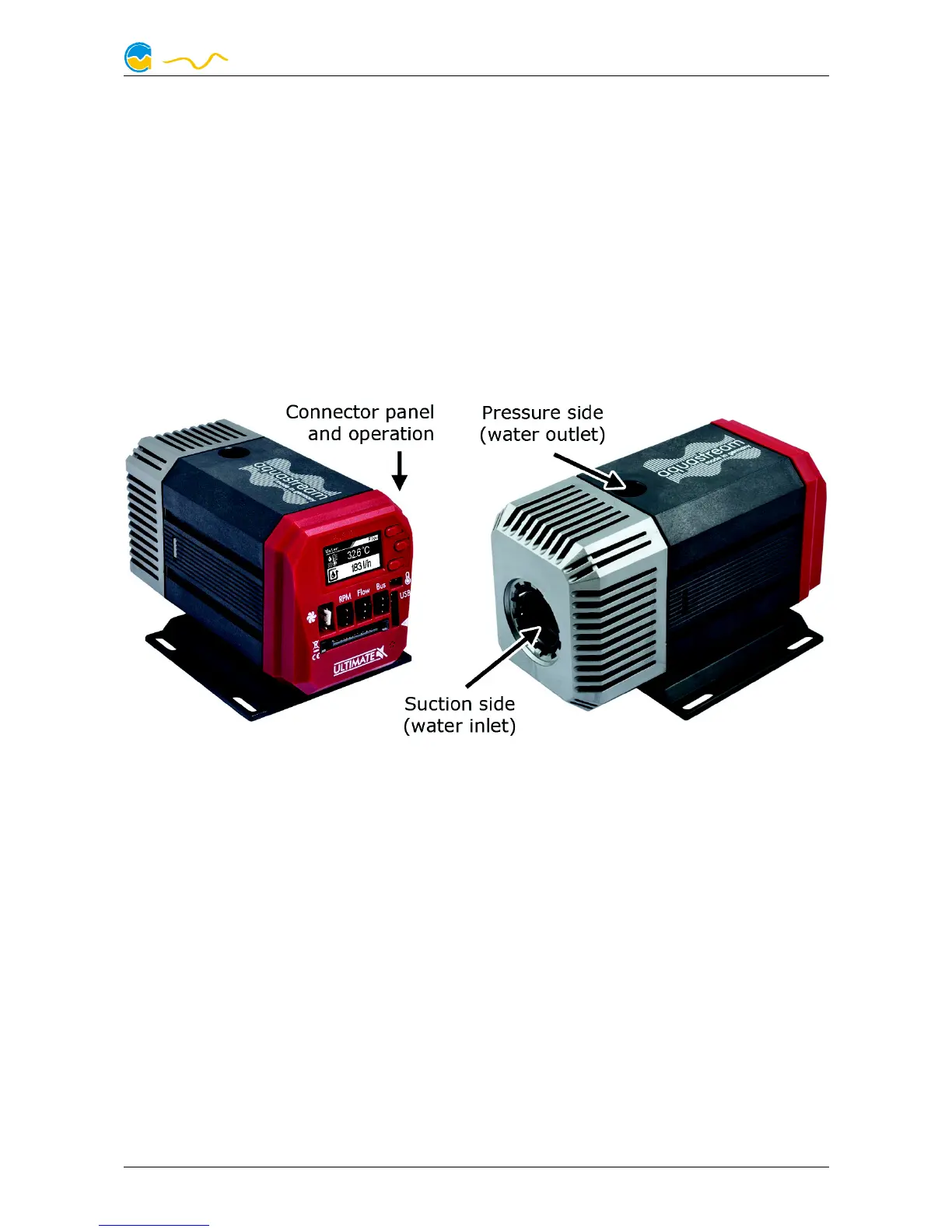

4. Overview of the aquastream ULTIMATE pump
Overview of the aquastream ULTIMATE pumpOverview of the aquastream ULTIMATE pump
Overview of the aquastream ULTIMATE pump
5.
5.5.
5. Assembly instructions
Assembly instructionsAssembly instructions
Assembly instructions
Install connecting adapters (not included in delivery) to the aquastream ULTIMATE.
The adapters should generally be screwed in without a tool
without a toolwithout a tool
without a tool. The black o-ring must
go completely into the pump housing and is not visible if the adapter is correctly
installed. Excessive force may damage the pump!
Should you be using a plug-on reservoir with the pump (e. g. aquainlet series), re-
move the silver suction grille and mount the tank directly onto the water inlet port
of the aquastream ULTIMATE pump. In this case no connecting adapter is to be
installed into the inlet port.
© 2016-2018 Aqua Computer GmbH & Co. KG - 5 -
Gelliehäuser Str. 1, 37130 Gleichen
