HC151+ pH(Rx)-Cl(J) / HC200+ pH(Rx)
ENGLISH

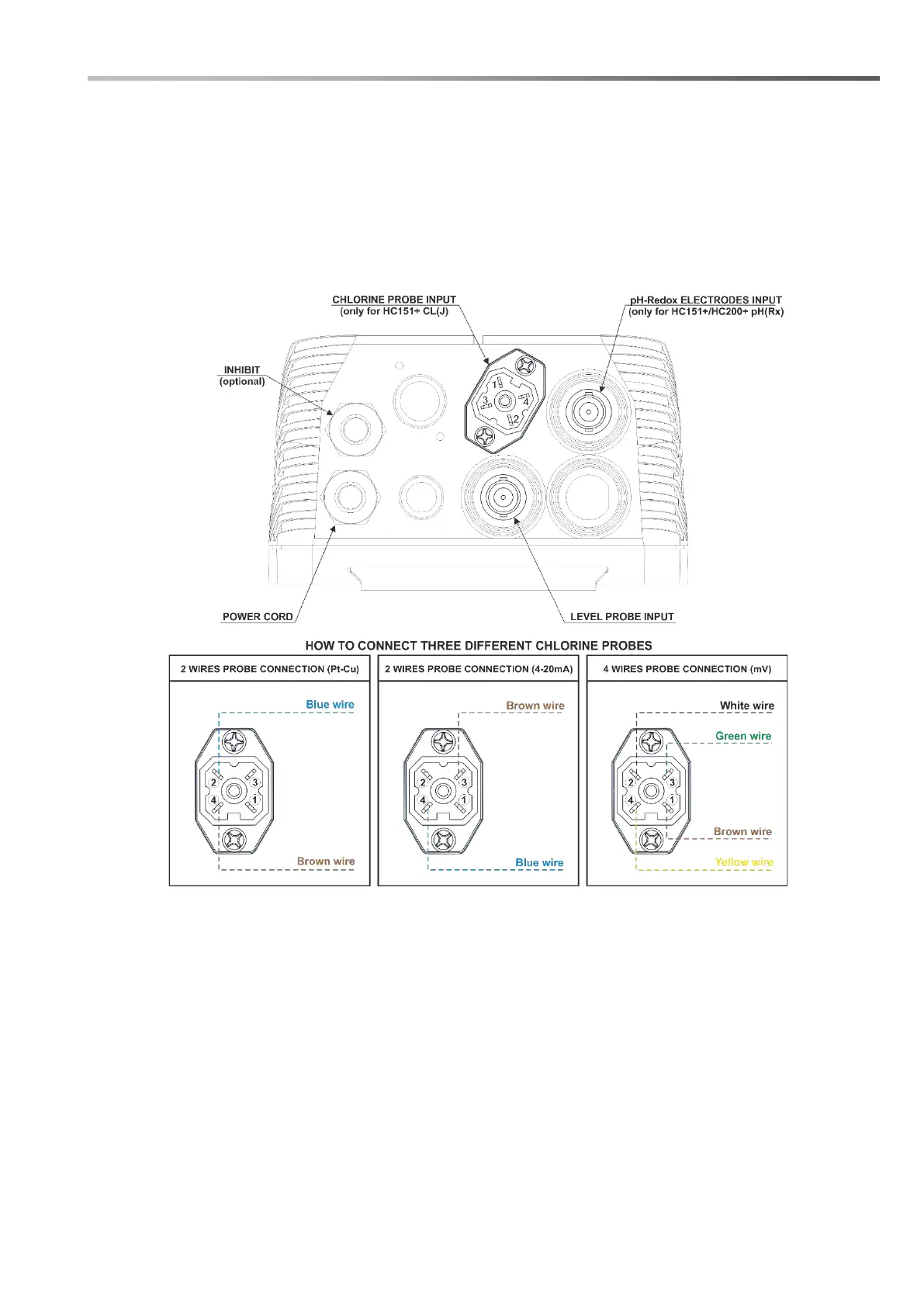

5. ELECTRICAL CONNECTIONS
5.1 HC151+ PImA model pump
The connector on the bottom of the pump allows the connection of an external signal coming from a
pulse emitting water meter or a mA signal. Obviously, if a pulse emitting water meter is connected, a
mA signal cannot be connected and vice versa. The pump is also equipped with a BNC connector for
connecting a level probe (not included in the package).
