2.3 Electric connection
CAUTION !!!!!
Verify that the earth system is perfectly functional and complies with the
applicable regulations. Make sure that the highly sensitive differential switch is
present (0.03 A). Verify that the rated values of the pump are compatible with those
of the mains. Never install the pump directly in parallel with inductive loads (e.g.
motors/solenoid valves) if necessary, use an isolating relay.
There are 2 protection devices inside the pump: a varistor and a fuse.

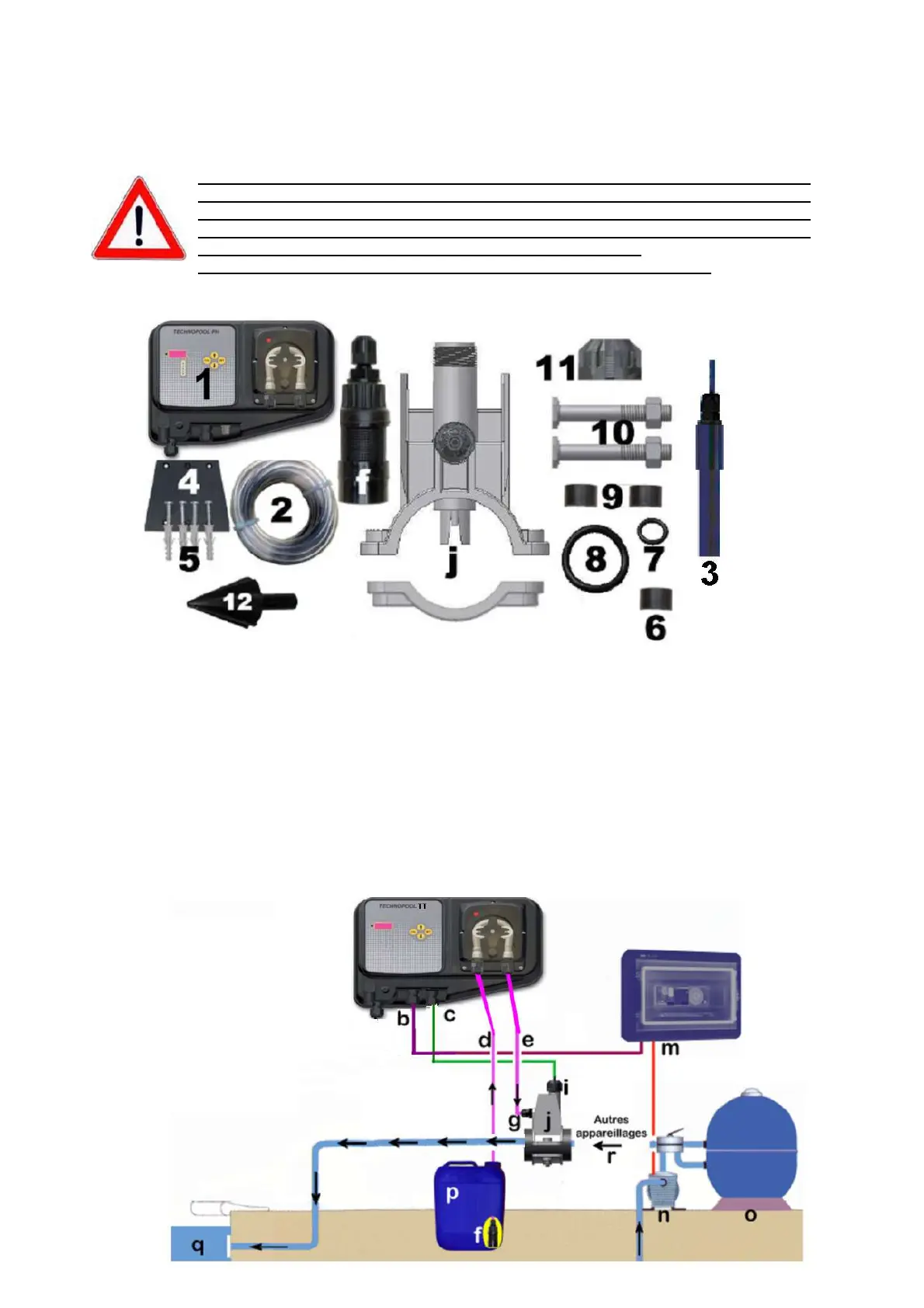

2.4 Standard accessories:
1 Technopool TT pump 2 Suction and delivery tubing
3 Temperature probe 4 Wall mount for pump
5 Wall fixing screws 6 Spacer for probe sealing (2 No)
7 O-ring for probe sealing (2 No) 8 O-ring for sealing probe-holder J
9 Spacer for D63 assembly 10 Nuts and bolts for probe-holder J
11 Nut for fixing and probe protection 12 Drill bit Ø 24 mm
f Footvalve strainer
j 2 in 1 Injection probe-holder
2.5 Electric and hydraulic connection scheme
