28/06/2013 ADSP7000596 TECHNOPOOL TT FRA-ING-ITA-SPA-POR Rev1.2
16

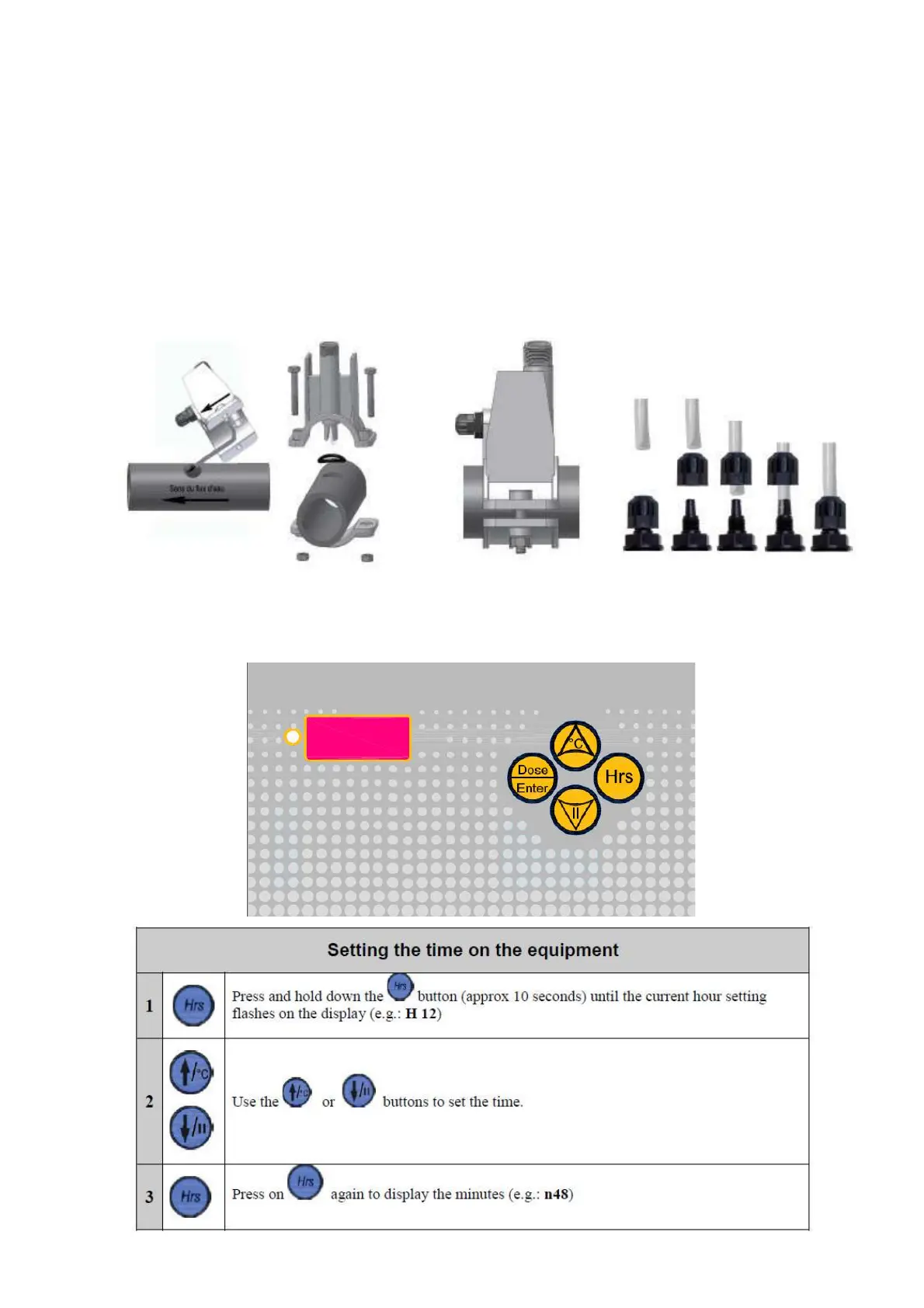

2 in 1 Probe holder installation(ref. j) :
- Put the o-ring (ref. 8) on the injection tube
- Insert the injection tube inside the PVC tube, ensuring that the injection is in the same direction
as the pool circulation (indicated by the arrow on the sticker)
- Put the big o-ring in its seat keeping it in its position, place the upper part of the probe holder (ref.
j) on the PVC tube
- Use the screws to join the 2 parts of the probe holder (if the PVC pipe is DN63 use the 2 spacer
(ref. 9))
Warning Do not fully tighten one nut before the other.
Installation of 4 x 6 tube
(ref. 2) on d e f g elements
3.0 TECHNOPOOL PROGRAMMING
