ilux Digital Bath with diverter installation instructions Page 12
A secondary remote
control is supplied.
This connects wirelessly
to the main controller.
!

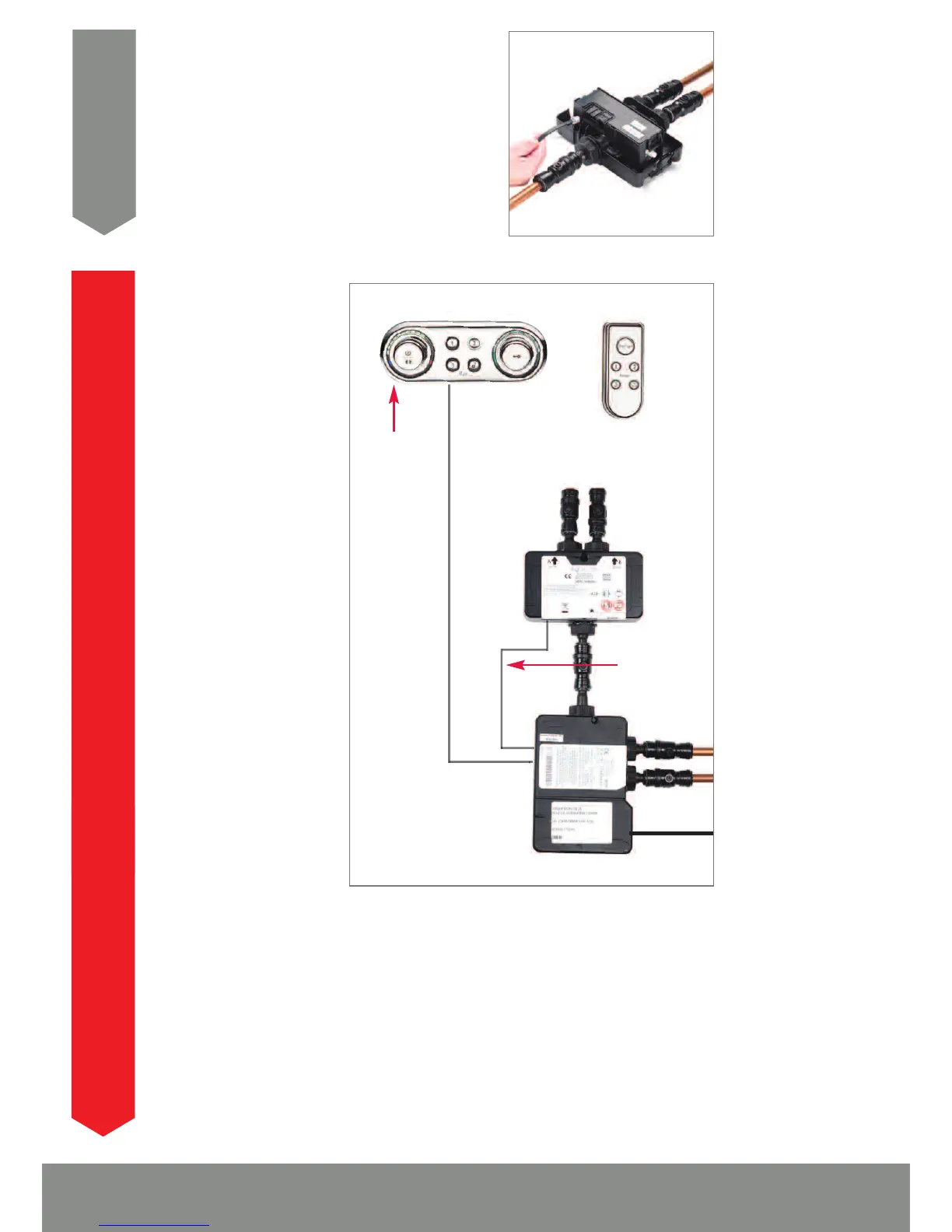

Connect the 2m low voltage patch lead to
both the diverter valve and secondary socket
on the processor box. Feed the cable out of the
processor and diverter ensuring it is correctly
routed within the data cable channel.
18
2m patch
lead data
cable
Bath divert
controller
with 10m
data cable
