Aqualisa ilux - Connecting Processors and Pipework; HP;Combi Processor Connection Diagrams; Gravity Pumped Processor Connection Diagrams; Isolation Valves and Pipe Routing

ilux Digital Bath with diverter installation instructions Page 7

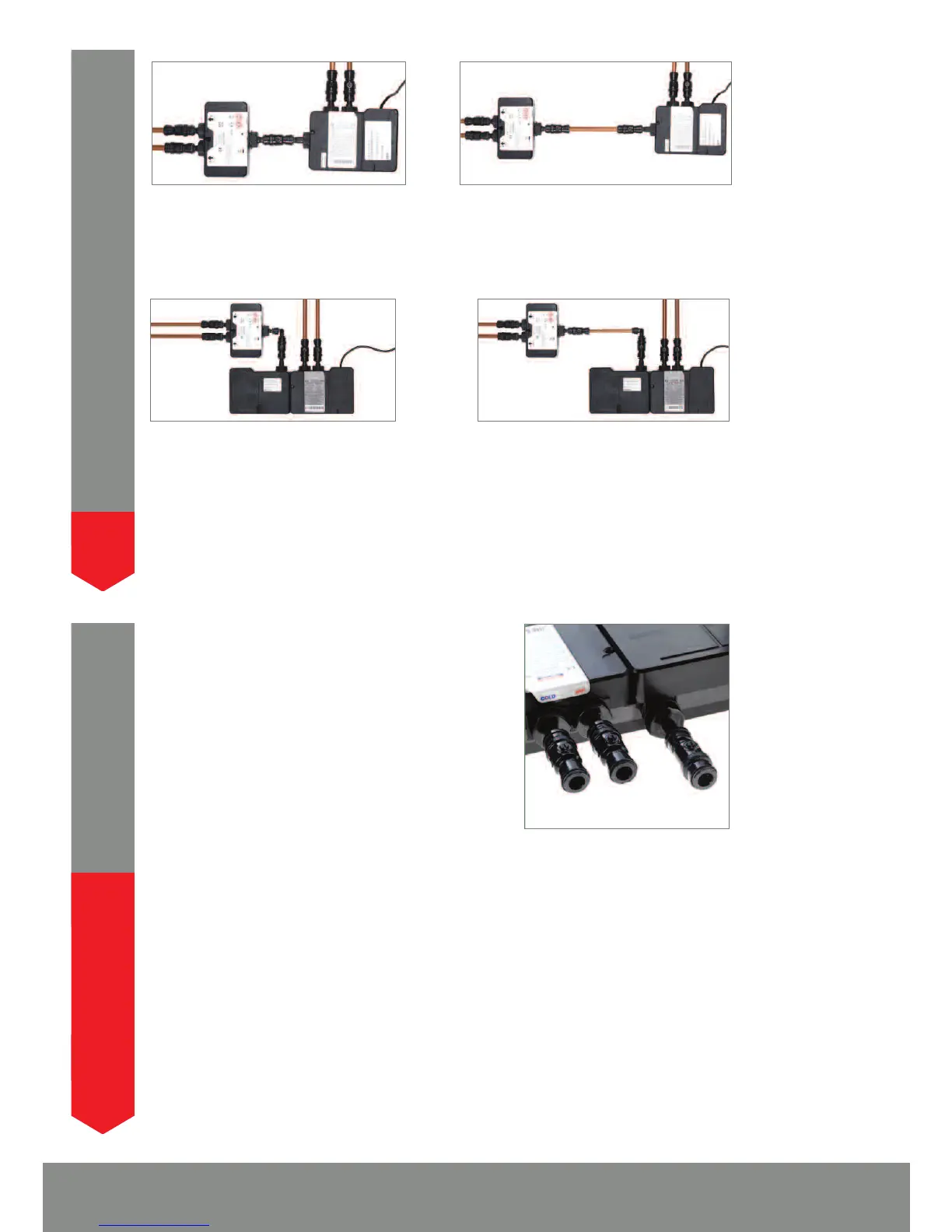

Processor connected to diverter with
additional pipe
Processor connected to diverter with
additional pipe
Processor connected directly
to diverter valve
Processor connected directly to
diverter valve
HP/Combi processor
IMAGES SHOWN ARE AERIAL VIEWS AND ARE FOR ILLUSTRATIVE PURPOSES ONLY.
!
Gravity Pumped processor
Isolation valves are supplied with the Digital
processor and diverter valve and must be fitted on
both inlets and the blended water outlets. All
pipe work should be run in 15mm pipe. All pipe
work should be supported. For externally pumped
gravity fed installations, 22mm pipe work should
be run as close to the processor as possible before
reducing down to 15mm.
2
The inlet supply centres are 48mm. The inlet supply centres deviate from EN1111
and EN1287, but are deemed to be a special case.
Please note arrow on isolation valve to indicate direction of flow.
Compression fittings should not be used on the inlet and outlet spigots and may
affect the warranty if fitted.
!
