ilux Digital Bath with diverter installation instructions Page 6
Installation instructions
70mm
90mm
445mm
270mm
350mm
265mm

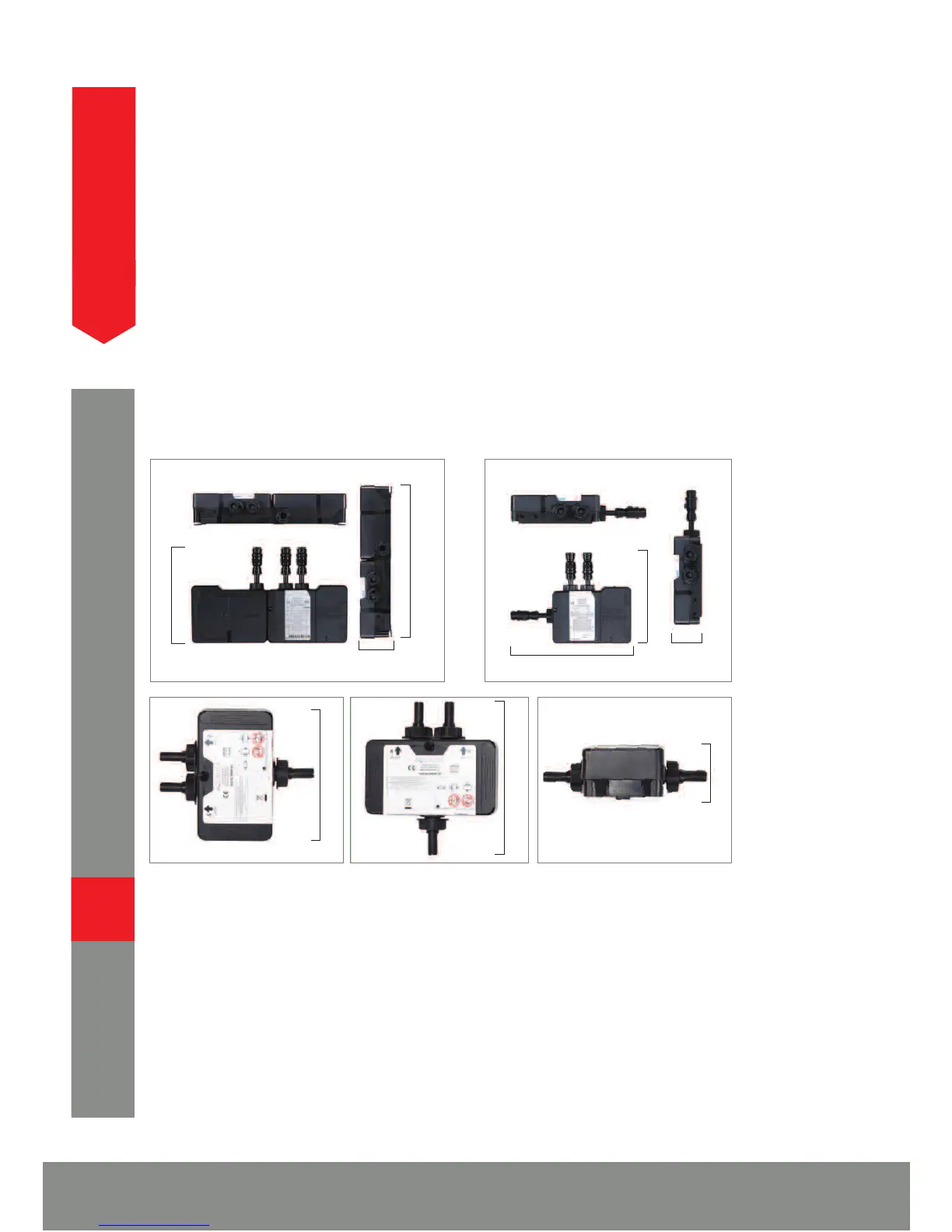

To ensure safe operation and installation of this product, the processor and the Digital di-
verter MUST be installed in one of the orientations shown.
1
This product must be installed by a competent person in accordance with the relevant
current Water Supply Regulations.
In addition to the guide below it is essential that the written instructions overleaf are
read and understood and that you have all the necessary components (shown
overleaf) before commencing installation.
!
The ilux Digital Bath system is supplied with universal fixings intended to secure it to
a suitable wall.
!
!
Please note the orientations match the processor orientations and are shown on the
Digital diverter valve label.
!
197 mm
240 mm
70 mm
