AQUARK BS130 - Dimension

7
7. Dimension
E
D
C
F
G
A
H
B
※ Above data is subject to modification without notice.

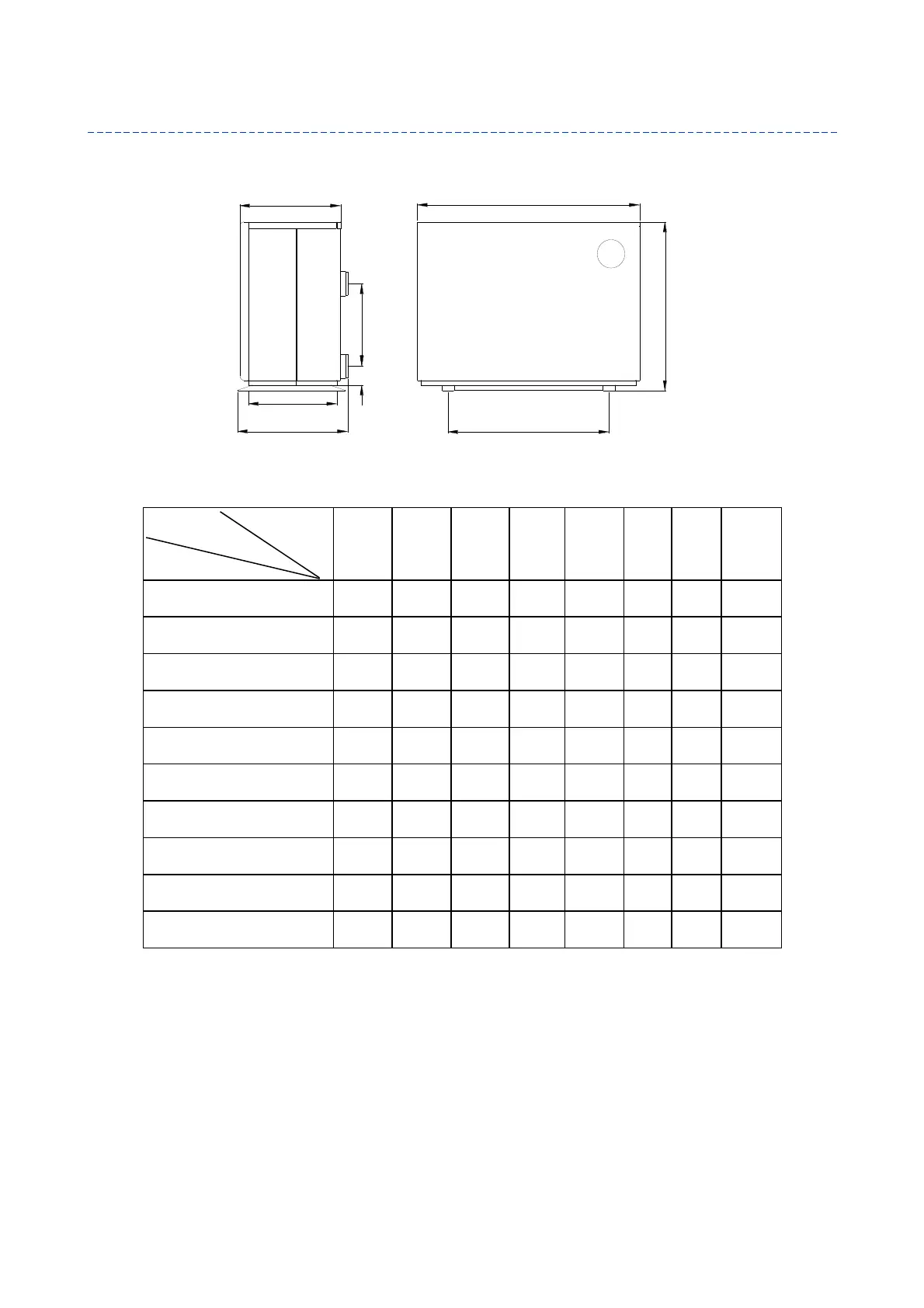

Note: The picture above is the specification diagram of the pool heater, for technician’s installation and
layout reference only. The product is subject to adjustment periodically for improvement without further
notice.
A
B
C
D
E
F
G
H
BS70
410
645
404
440
890
250
75
658
BS90
410
645
404
440
890
250
75
658
BS110
410
645
404
440
890
290
75
658
BS130
410
645
404
440
890
280
75
658
BS150
410
645
404
440
970
320
75
658
BS170
410
710
404
440
1060
320
75
658
BS210
410
710
404
440
1060
460
75
758
BS280
410
710
404
440
1060
640
75
958
BS280s
410
710
404
440
1060
640
75
958
BS350s
492
950
486
512
1314
650
75
958
Name
Size(mm)
Model
