AquaSure AS-HS64D User Manual

8
www.AQUASUREUSA.com
Tel: 1-800-661-0680
STEP 3. Connecting the System
IMPORTANT! On copper plumbing systems be sure to install a grounding wire between the
inlet and outlet piping to maintain grounding.
WARNING! Any solder joints being soldered near the valve must be done before connecting
any piping to the valve. Always leave at least 6” (152 mm) between the control valve and
joints being soldered when soldering pipes that are connected to the valve. Failure to do this
could cause damage to the valve.

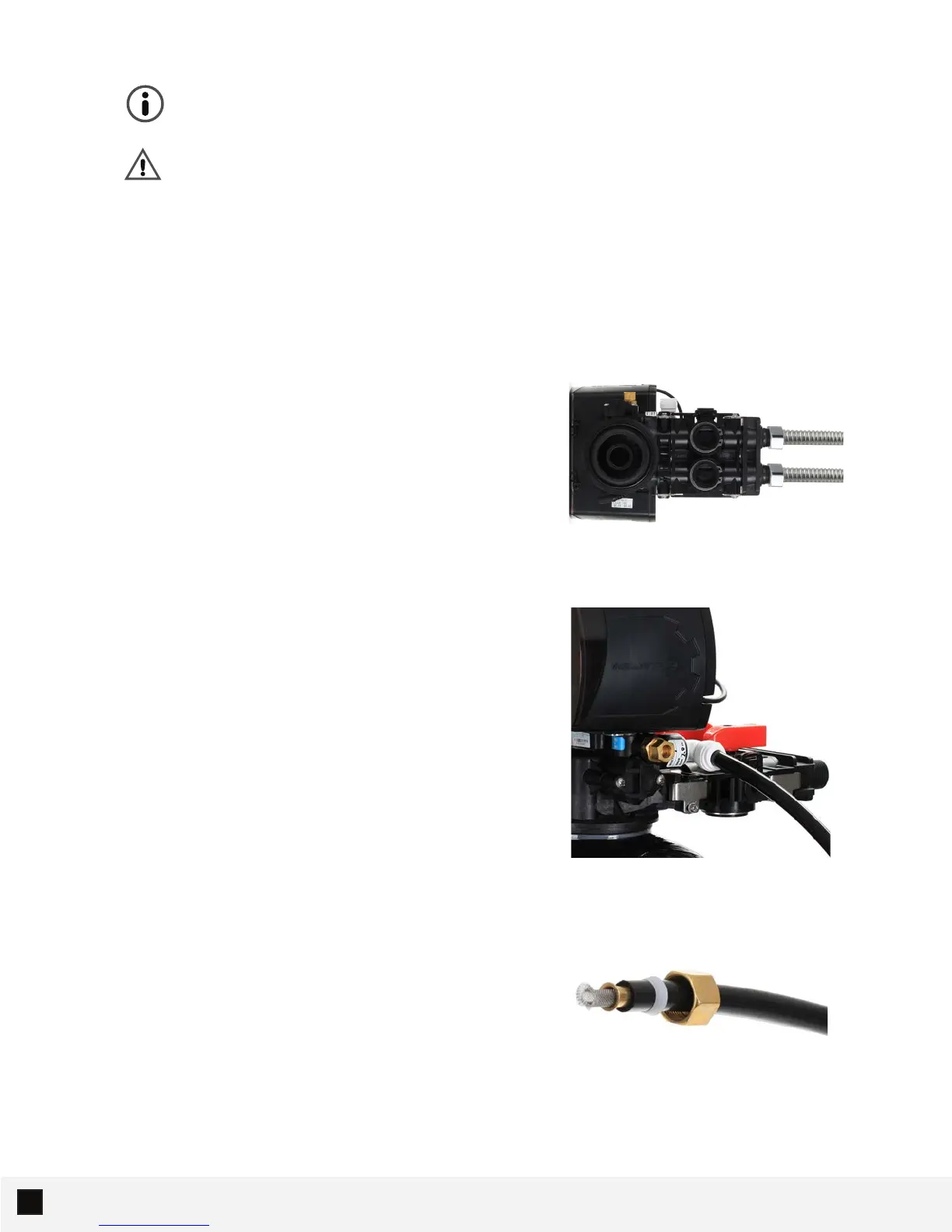

1. The Aquatrol valve is equipped with 3/4” male
NPT connections. It is recommended that these
connections are made using Teon tape.
2. The inlet and outlet can be identied on the
bypass valve. There are arrows stamped in the
bypass valve showing the ow direction. The
arrow pointing toward the valve is the inlet and
the arrow pointing away from the valve is the
outlet.
3. Apply the Teon tape onto the bypass inlet and
outlet ttings.
4. Connect the inlet and outlet of the softener using
appropriate ttings.
5. All piping should be secured to prevent stress on
the bypass valve and connectors.
6. Connect the drain hose to the valve by pressing
it into the Quick Connect port. Run the drain
hose to the nearest laundry tub or oor drain.
This can be ran up overhead or down along the
oor. Drain hose should be a minimum of 1/2”. If
running the drain line more than 20 ft linear, it is
recommended to increase the hose size to 3/4”
and be sure there is no sags or a “drop” in the hose
all the way to the drain destination.
Note: A direct connection into a waste drain is not
recommended. A physical air gap of at least 1.5”
Should be used to avoid bacteria and wastewater
traveling back through the drain line into the softener.
7. Connect the brine line to the control valve by
removing the nut on the control valve and sliding
it on the brine line. Then install the plastic sleeve
on the brine line. Push the brass tube stiffener in
the brine line. Install the cone shaped screen in the
brass tube stiffener.
