11
Quantum UV

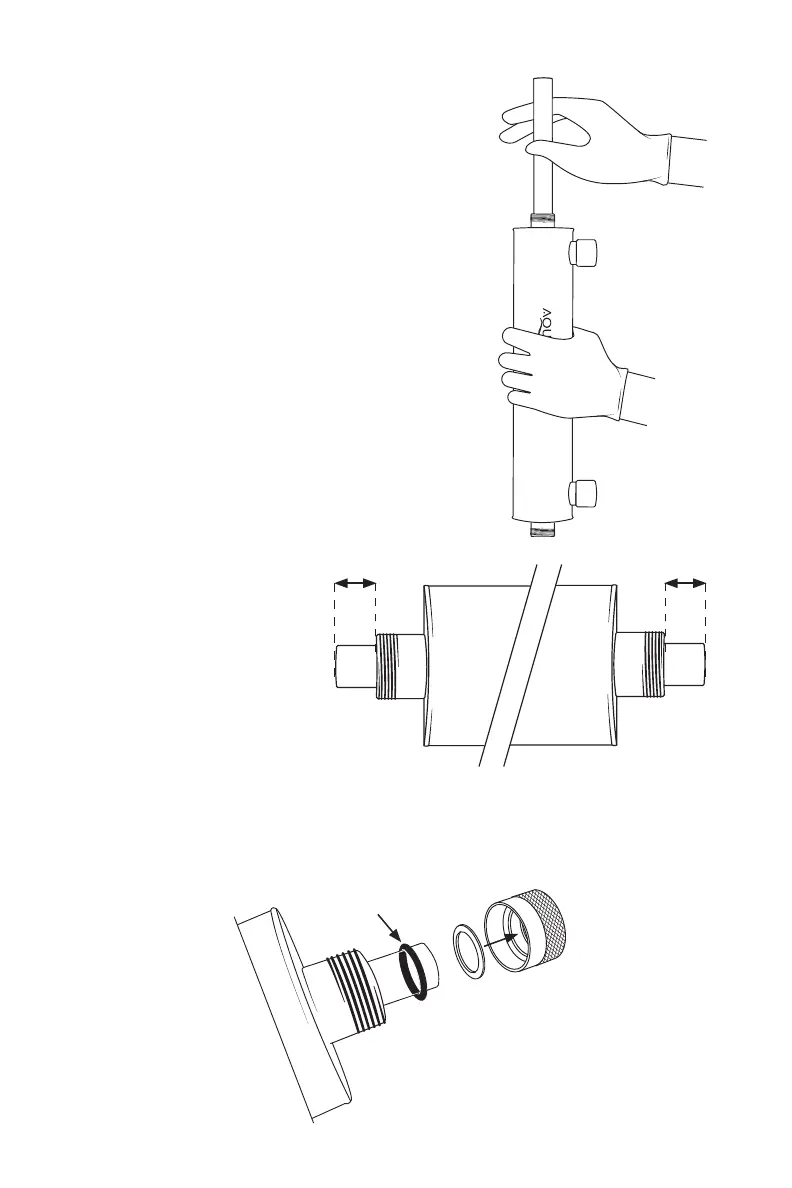

4. Insert the quartz sleeve into the UV chamber.
IMPORTANT: The quartz sleeve is
fragile and should be handled with care.
Positioning the UV chamber vertically
and slowly lowering the quartz sleeve into
the UV chamber. This method can avoid
the sleeve making contact with the inner
surface of the UV chamber.
IMPORTANT: Leave
equal amount of the
quartz sleeve exposed
on either end of the
chamber.
5. Insert and seat the white pressure seal into the innermost position of the end
cap. Gently roll on the black o-ring over the end of the quartz sleeve. Do this
for both sides of the exposed quartz sleeve and both end caps.
