AQUOR Wall Hydrant V1+ - Parts Description; Hydrant; Debris Cover; Hose Connector

www.aquorwatersystems.com
1-800-458-1749
Aquor
®
Wall Hydrant V1+
ASSE 1019C / ASME A112.18.1 / CSA B125.1 APPROVED
7
Debris Cover
7. Debris Cover Gasket
8. Debris Cover Wedge
9. Debris Cover Nut & Bolt
10. Debris Cover

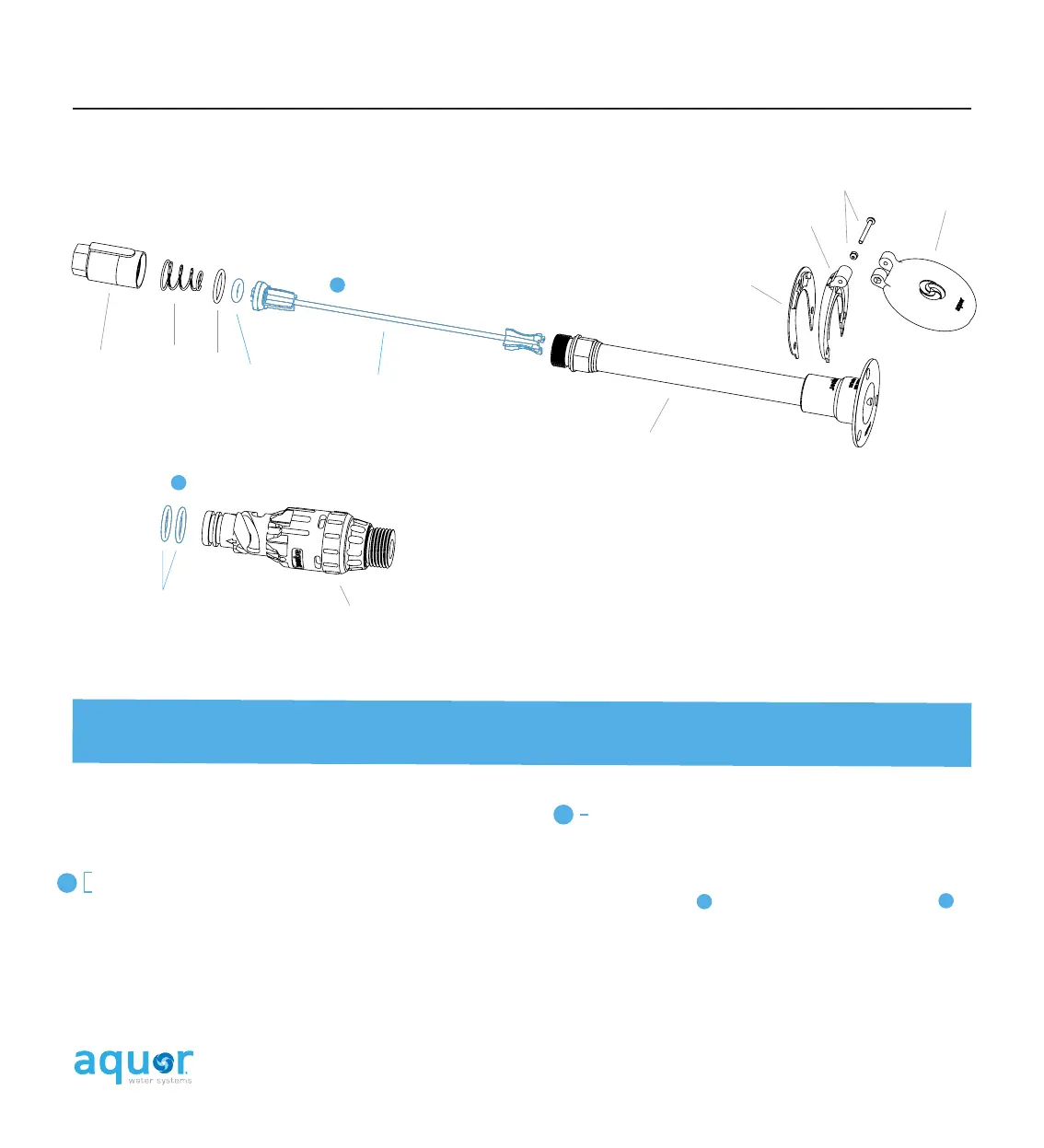

PARTS DESCRIPTION
Hydrant
1. Rear Valve Housing (inlet)
2. Valve Return Spring
3. Hydrant Body O-Ring
4. Main Valve O-Ring
5. Operating Rod
6. Hydrant Body
Hose Connector
11. Connector O-Rings
12. Connector Body
Parts Description
1
2
3
5
4
6
7
8
9
10
11
12
Need Parts? Stem Replacement Kits available in 2”, 4”, 6”,
8”, 10”, and 12” and Hose Connector O-Ring Kits
are available.
For help, email us at contact@aquorwatersystems.com
or call us at 1-800-458-1749.
