11

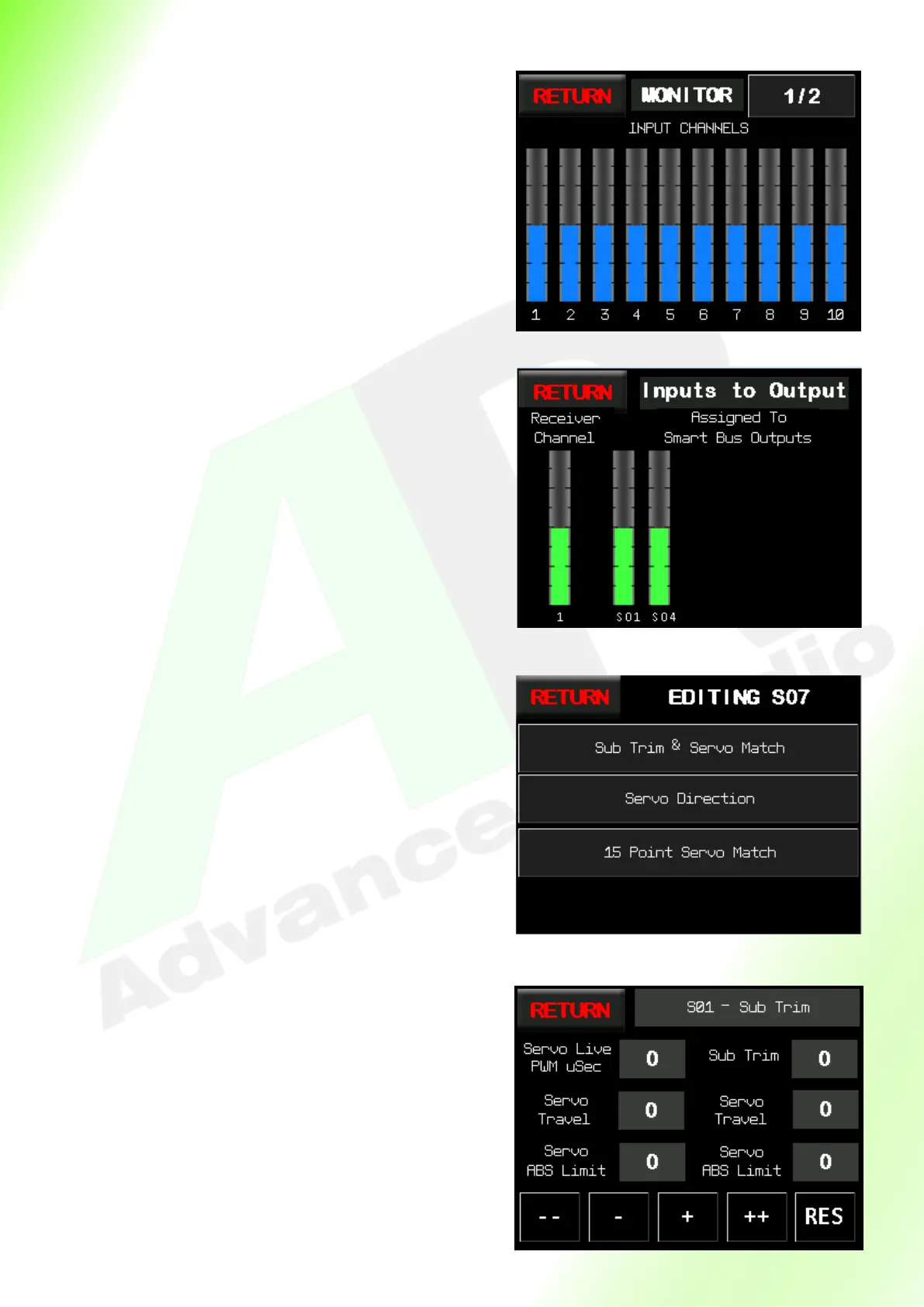

Channel Monitor screen
Return
Takes you back to the previous screen.
1/2
Changes the page to higher channels.
Channel Bars
The bars show the current input channels and posion.
Note: The bars have two colours.
Blue = no servo output has been assigned.
Green = one or more servo outputs has been assigned to
this channel.
Tapping any of the green bars will take you to the inputs
to outputs screen and show corresponding assigned
input to output channel(s).
We will expand on this feature in the servo matching
Sub Trim
Return Returns you back to the previous screen.
Servo Live PWM Shows the live PWM value of the
servo output.
Sub Trim Level shis the enre range of the chosen
servo channel.
Servo Travel Are end point adjustment to increase or
reduce servo range relave to sck movement. Also used
in conjuncon to match mulple servos.
Servo ABS Limit Adjusts the absolute maximum and
minimum travel of a servo.
Sub Trim and Servo Match Menu
Return
Returns you back to the previous screen.
Servo Direcon
Reverses the selected servo direcon.
Sub Trim & Servo Match
Takes you to the Sub Trim page for the chosen Servo
15 point Servo Match
Takes you to the Mul-point match page.
To Next Page
