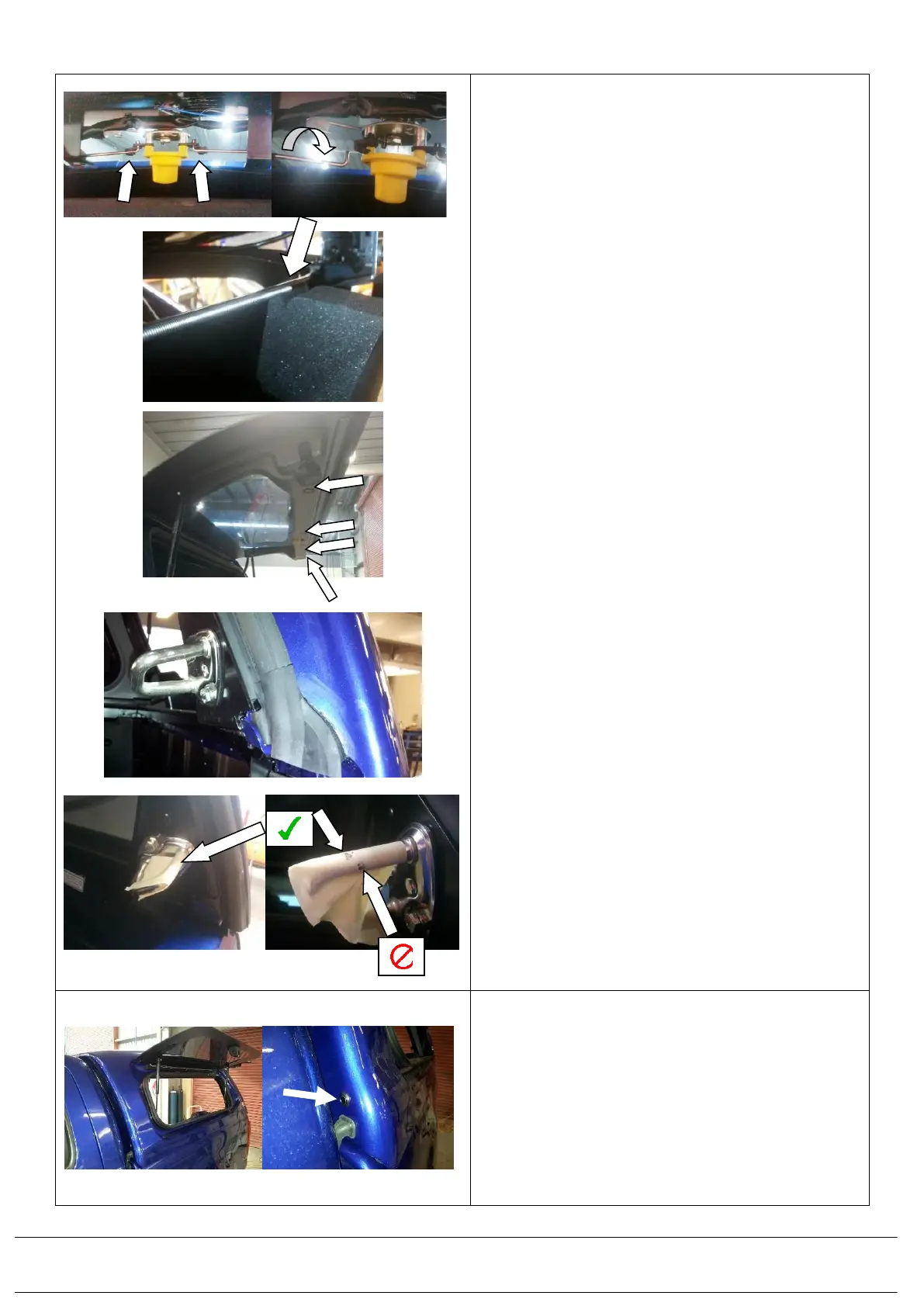

If the latches do not operate simultaneously,
locate the black plastic clips on each end of the
pull rods to the latches, unclip a pull rod and
length or shorten it by winding it in / out and re-
clip in. Close the latches with your fingers again
and test operation via the interior rear door
handle to operate simultaneously.
Once satisfied, refit the door cover lower portion
with the scrivets, but ensure to guide the pull
rods into slits in the foam blocks on the door
cover at both ends.
If the latches can be seen to bind on the door
frame strikers, it may be necessary to adjust
the door frame strikers. Do this by the
following:
Place one thickness of masking tape around the
striker bar where the latches contact. Open and
close the door. If the tape shown signs of wear
through on the top side or underneath of the
striker bar, it is necessary to adjust the striker
away from the side on which the wear is shown.
The aim is only to have wear on the outward
face of the striker bar.
Undo the M6 screws slightly on the strikers and
adjust their position slightly. Re-torque screws
to 9Nm.
Test the door again and adjust via the above
methods until satisfied.
5.4) Operate the push button switch on side lift up
windows. If the windows will not open, and the
solenoid can be heard working, the latch can be
adjusted in the following steps.
