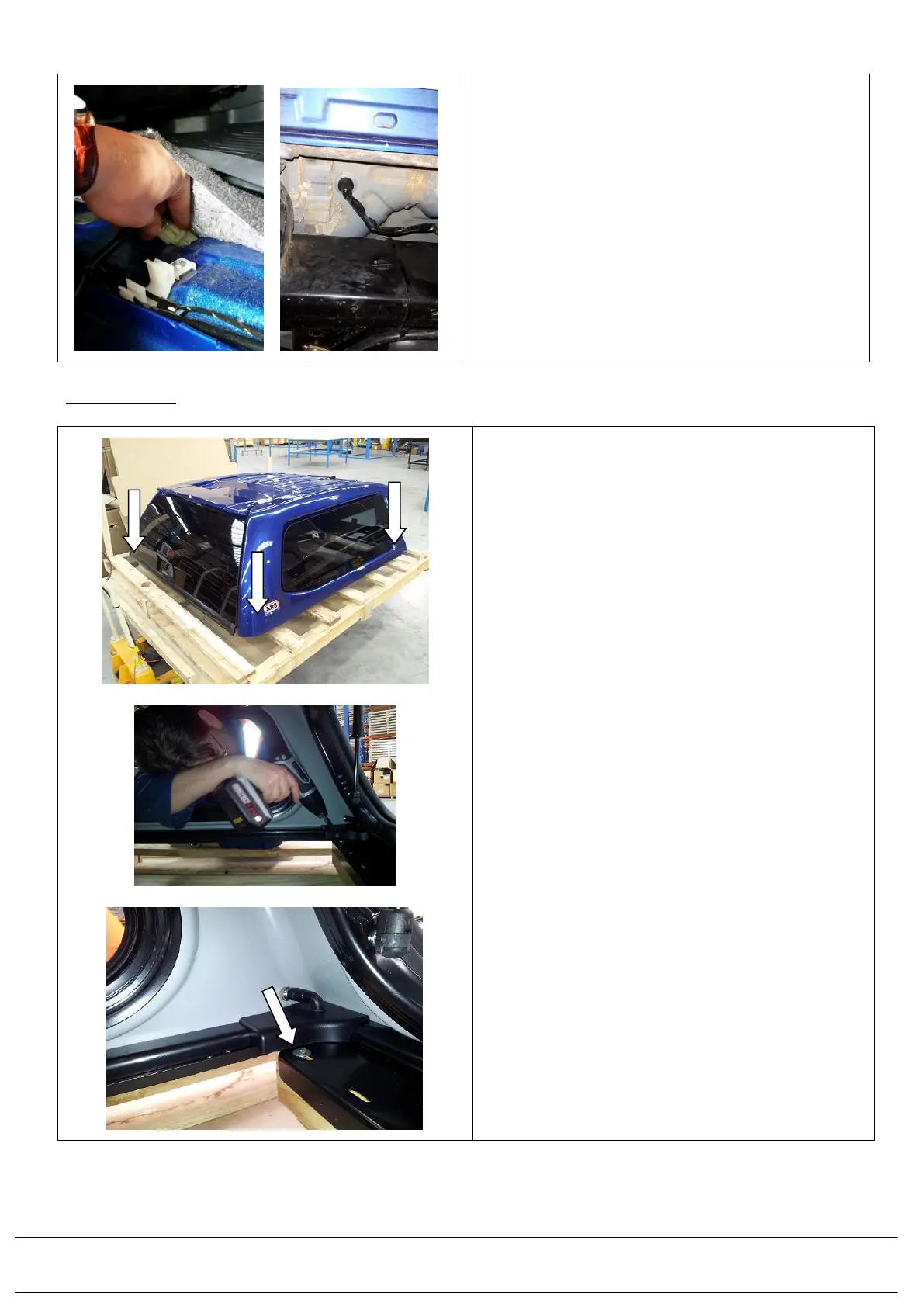

3.22) Lift the rear carpet and remove the underfloor
grommet.
3.23) Insert the 4 pin white connector through the hole
in the floor.
3.24) Pull the loom through from underneath the vehicle
3.25) Ensure the grommet is fully seated in the hole
to seal. Run the connector end to the canopy
back along the top chassis rail. Do not cable
tie yet.
SECTION 4: FITTING THE CANOPY
4.0) Unscrew the canopy on the pallet by removing the
4 wood screws in each corner. Gain access to
screws via opening the rear door and front lift up
window.
4.1) The front lift up window can be unlatched by
reaching in underneath the canopy on the pallet
and pushing forward on the glass towards the front
of the canopy to push the latch buttons upwards
on both latches to unlock the window, to gain
access.
