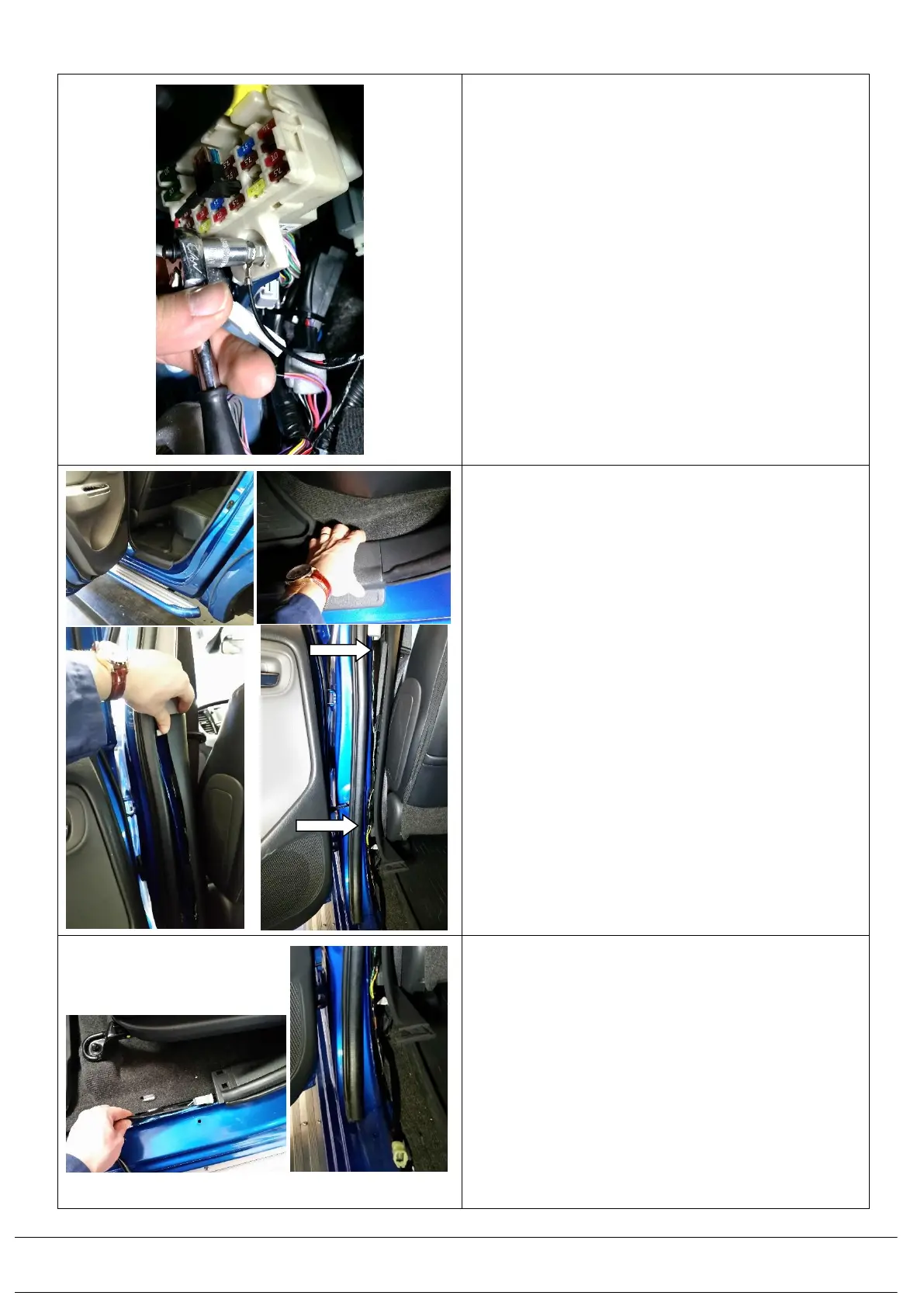

3.17) Using an M6 flange nut (6151173), fix the earth
eyelet on the canopy patch loom over the top of
the existing M6 nut at the bottom of the fuse box.
3.18) Open the passenger side rear door.
3.19) Remove the lower scuff plate.
3.20) Unclip the B-Pillar mouilding and prise it away
from the vehicle pillar.
3.21) Run the 4 pin white connector on the canopy
patch loom from the front kick panel behind the B-
pillar cover to the rear kick panel, keeping away
from the seatbelt.
