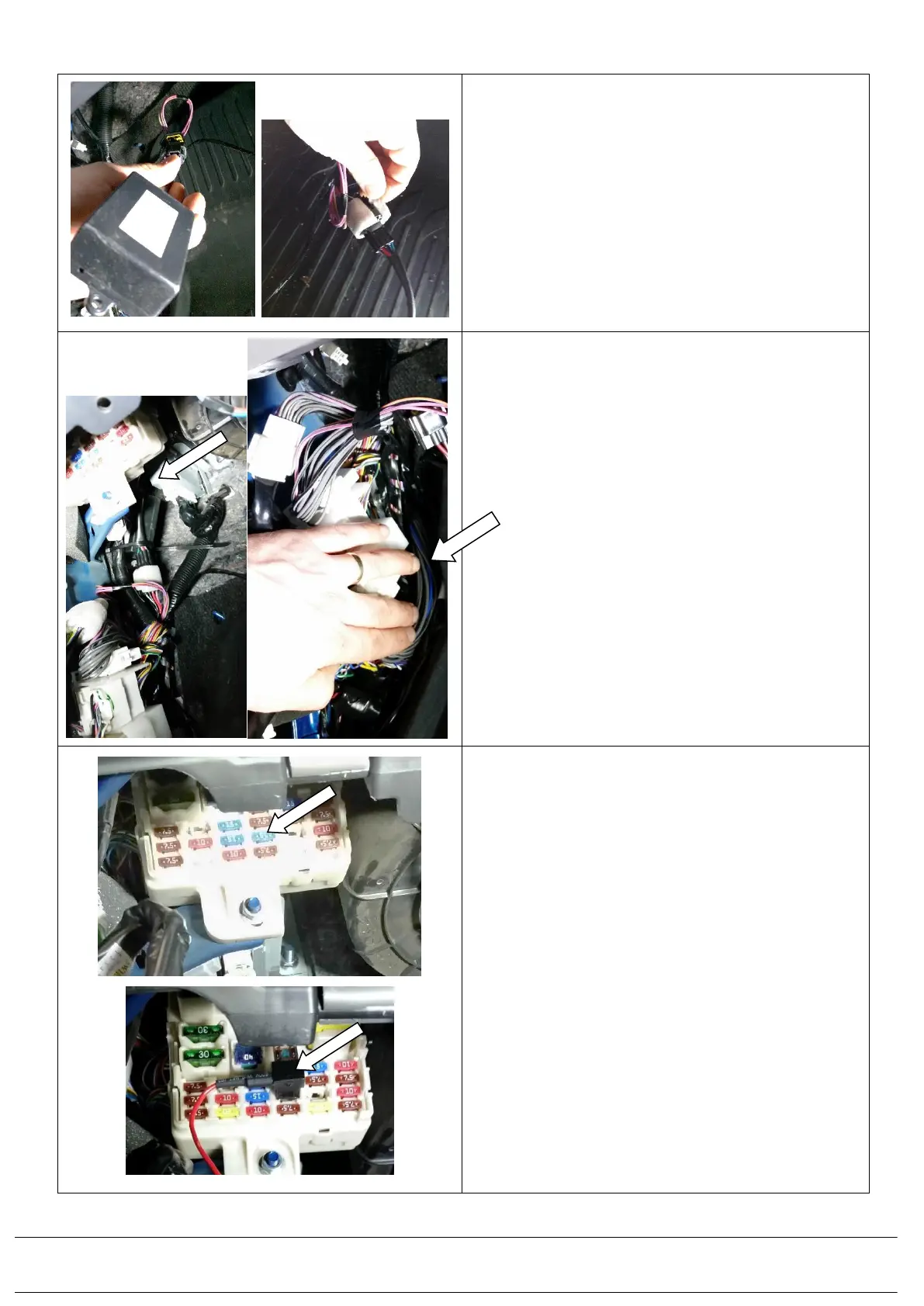

3.11) Connect the (668PJ015) latching relay to the
matching 6 pin connector on the canopy patch
loom.
3.12) Wrap all connectors in anti-rattle foam tape
(669PB015)
3.13) Using 2 off 200mm cable ties secure the
668PJ015 latching relay to the loom branch
behind the fuse box under the dash.
3.14) Neatly tuck the wiring in behind the junction box.
3.15) Remove the 15 Amp fuse indicated in the fuse
box.
3.16) Insert the blade fuse adapter form the canopy
patch loom in replacement of the 15 Amp fuse.
