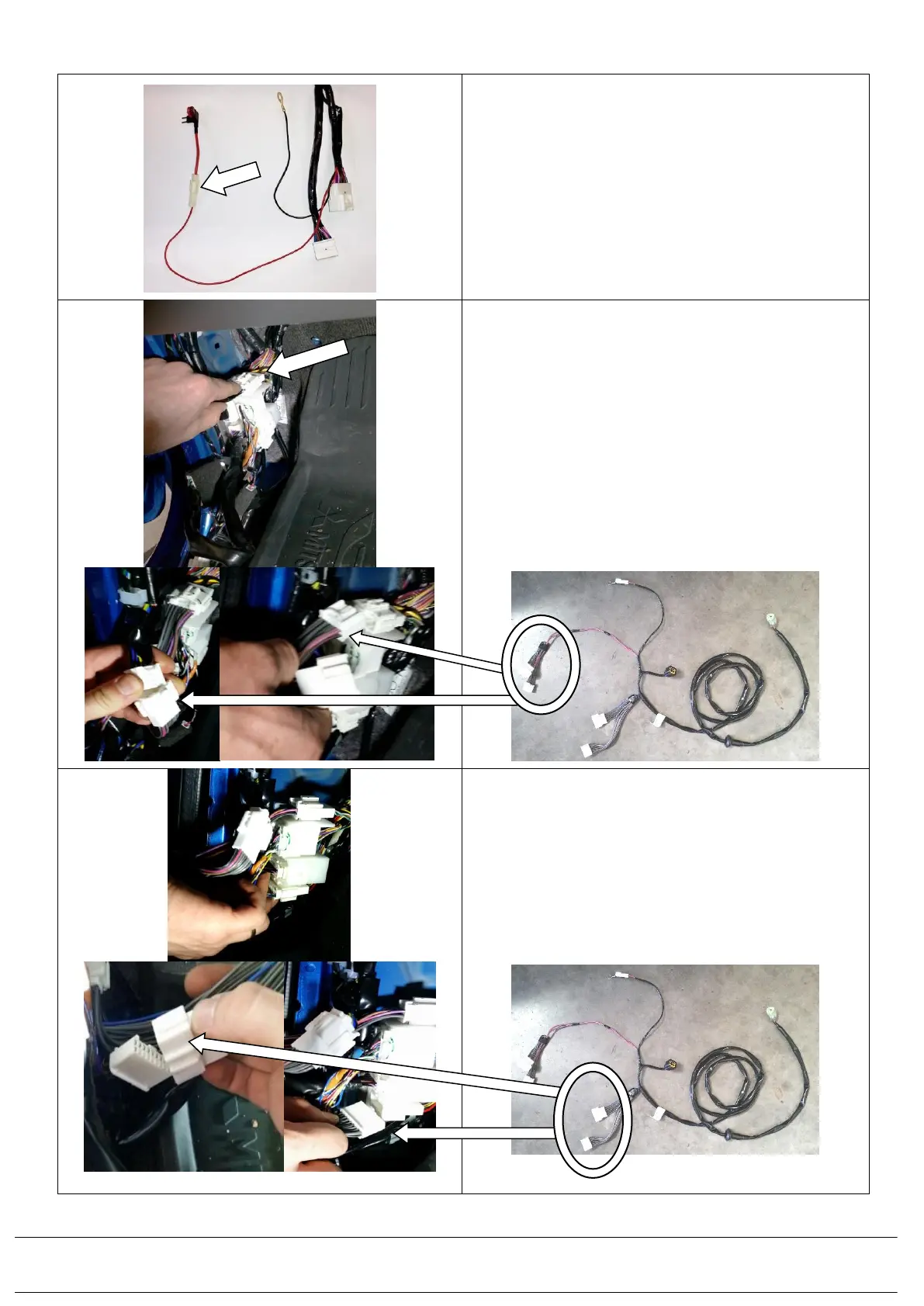

3.4) Connect the assembled blade fuse adaptor to the
connector on the main patch loom as shown.
3.5) Remove the top 14 pin connector from the junction
box in the kick panel area.
3.6) Insert the vehicle’s 14 pin connector plug into the
canopy loom 14 pin receptacle.
3.7) Insert the canopy patch loom 14 pin connector plug
into the vehicle 14 pin receptacle as shown.
3.8) Remove the bottom 18 pin connector from the
vehicle’s junction box.
3.9) Insert the vehicle’s 18 pin connector plug into the
canopy loom 18pin receptacle.
3.10) Insert the canopy patch loom 18 pin connector
plug into the vehicle’s 18pin receptacle as shown.
