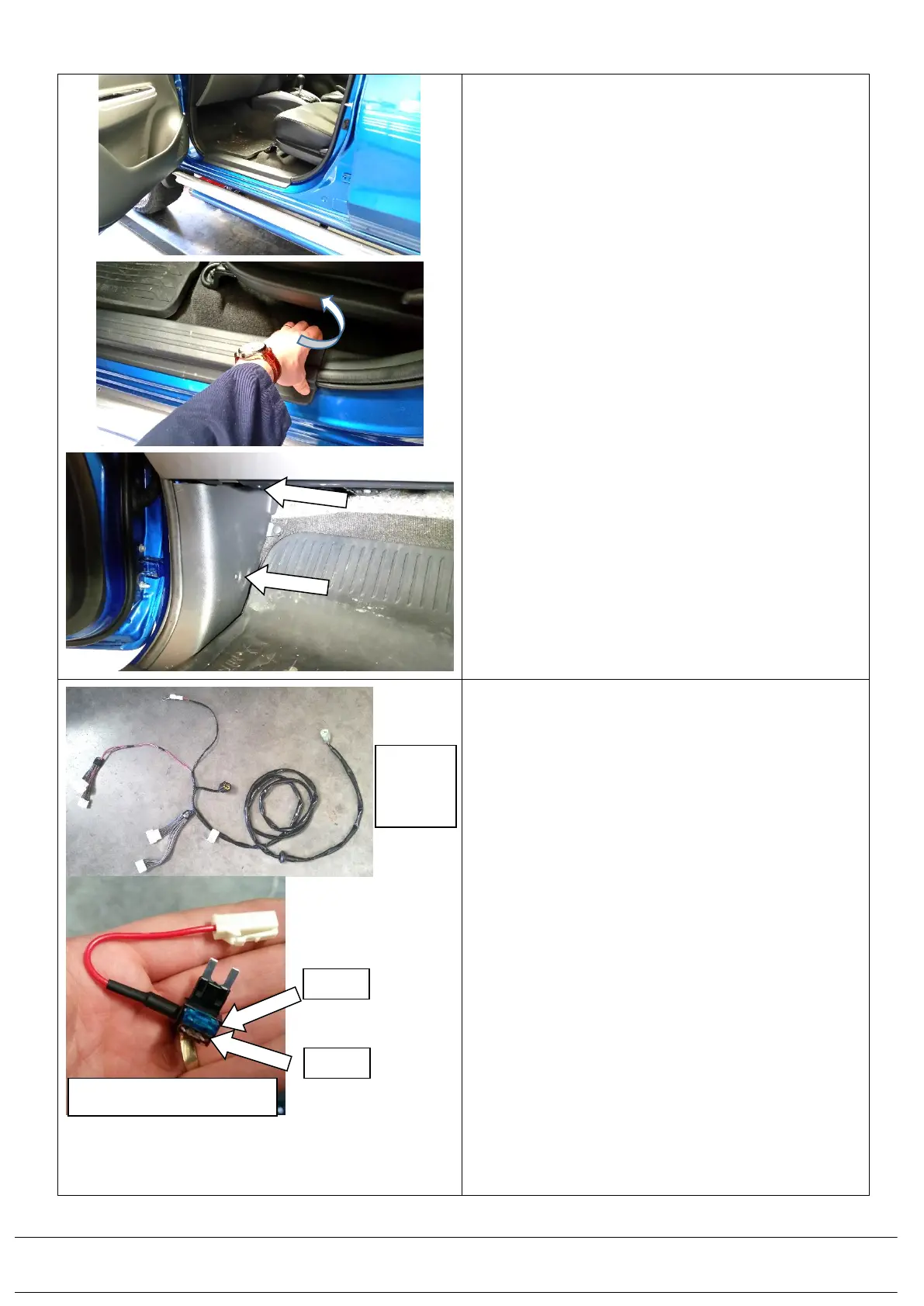

3.0) Go to the passenger side front door
3.1) Carefully remove the lower scuff panel by peeling
back the front and rear edges from the inside, and
lifting the panel with the aid of a plastic trim
removal tool
3.2) Remove the side kick panel, by first removing the
two fasteners shown and gently pulling into the foot
well. A plastic trim removal tool will aid
3.3) The vehicle electrical patch wiring loom (668PJ020)
has 2 parts. The main patch loom and the blade
fuse adaptor.
Ensure the blade fuse adaptor is fitted with a
7.5 Amp and 15 Amp blade fuse as shown
opposite
