SECTION 6: BED LINER FITTING WITH CANOPY TUB MOUNTING BRACKET SYSTEM
6.0) If no bed liner is to be fitted, proceed to fit the canopy as per Section 2.
6.1) If a OEM before 2019 bed liner is already fitted to the vehicle, remove the bed liner and retain hardware and
fit as instructed in Step 2.27. If a 2019 MR Triton Bed liner MZ330745TB is fitted, complete all steps to up to
and including Section 2, step 2.26 for fitting the canopy first, then refer to steps 6.22-6.30
6.2) The canopy will suit fitment to ARB under rail bed liner P/N: KUL2179. Complete all steps to up to and
including Section 2, step 2.26, for canopy fitting first, then refer to steps 6.4 - 6.14.
6.3) The canopy will also suit fitment to ARB Sport Guard P/N:10052233. Complete all steps to up to and
including Section 2, step 2.26, for canopy fitting first, then refer to steps 6.15 – 6.21
ARB UNDER RAIL LINER PART NUMBER: KUL2179

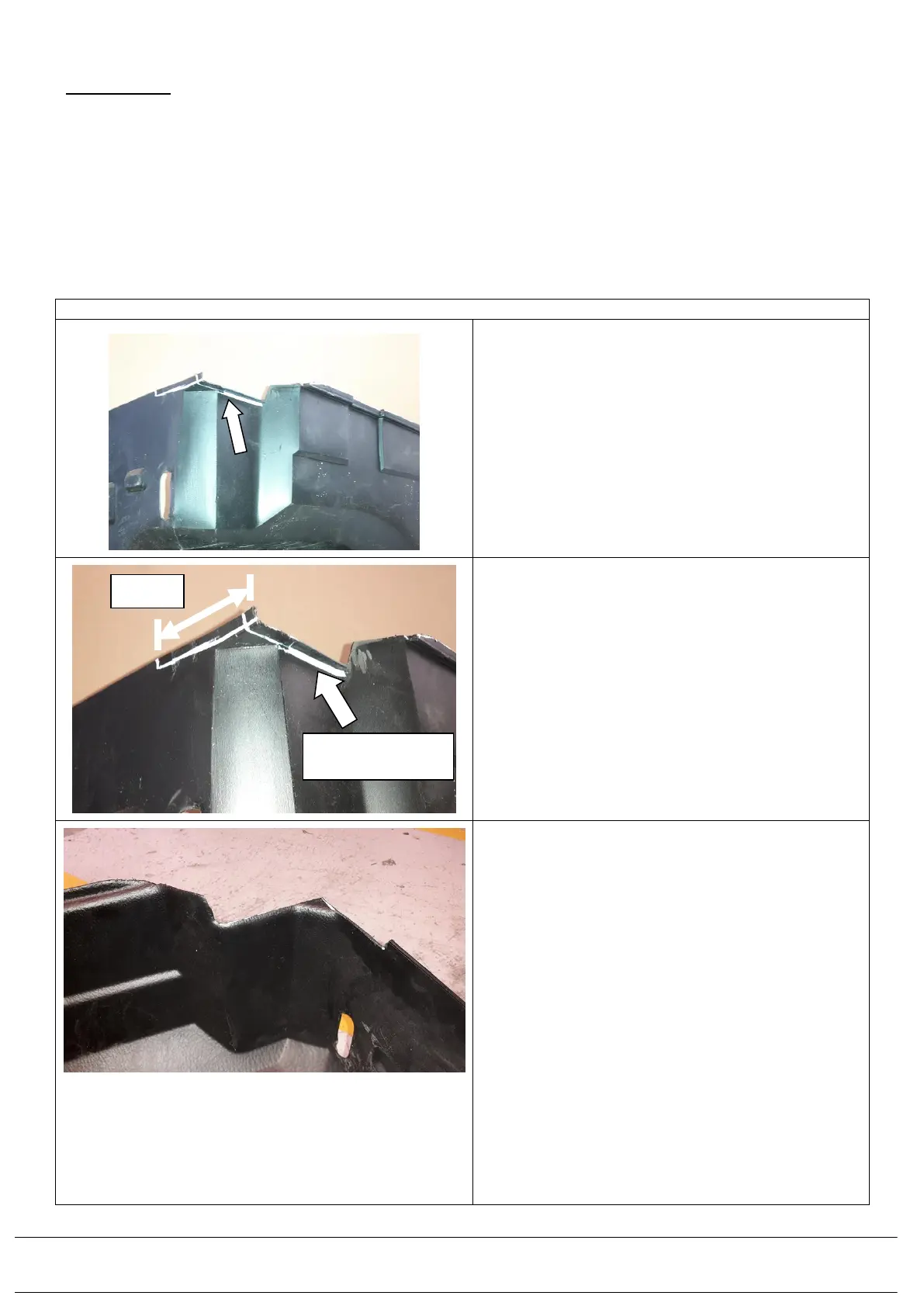

6.4) You will need to trim the bed liner to provide
clearance to canopy mounting brackets in the
vehicle tub. The following steps are based on
fitment to the ARB under rail bed liner. This is
based on fitting a new bed liner. (ARB bed
liner P/N: KUL2179)
6.5) Shown opposite is the LH front corner of the bed
liner. Mark this as shown on the outside of the
part and also on the opposite front corner in
mirror image. Cut the bed liner using a jig saw
and sand the cut edge.
6.6) The completed trim in the LH front corner should
look like that in the picture opposite when viewed
from inside the bed liner.
