ARB RD116 - Wiring the Actuator System

5 Mounting & Connecting the Electrical System
32

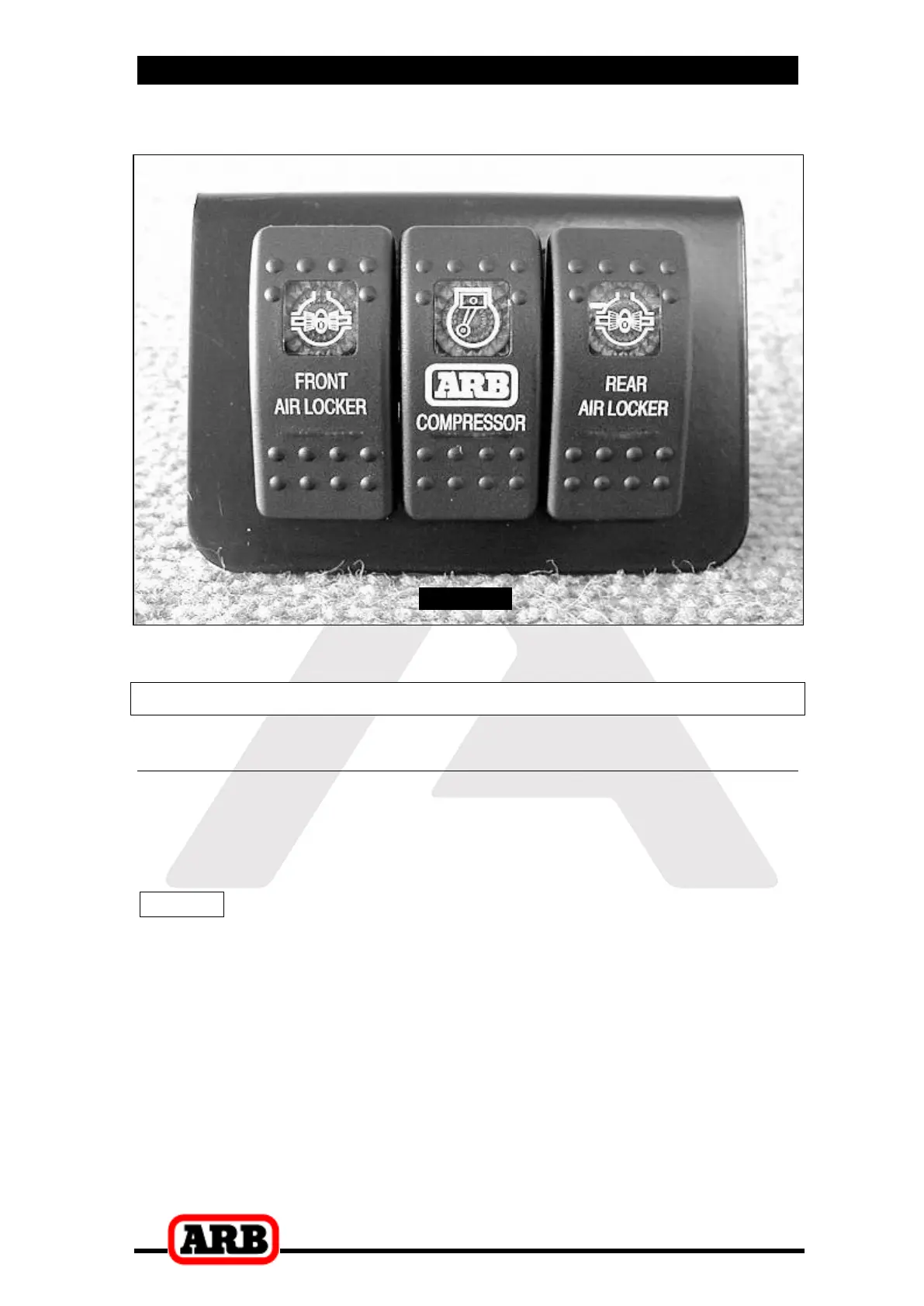

Figure 19.
5.2 Wiring the Actuator System
5.2.1 Connection to an ARB Air Compressor
When wiring the Air Locker actuator switch(es) and solenoid(s) to an
ARB Air Compressor, all connections can easily be set up directly from
the supplied wiring loom. (Fig. 20.)
NOTE : Refer to your ARB Air Compressor Installation Guide
for details on configuring your installation.
