CI Guide AV8/9 V1 Page 3 of 7
Pembroke Avenue, Waterbeach, Cambridge, CB5 9QR, England
Tel +44 (0) 1223 203200 Fax +44 (0) 1223 863384
Engineering Menu
(It is possible to change the remote control protocol from 16 to 19 for zone 1
in this menu and toggle between remote off/on modes)
To enter this menu press buttons CD + DVD + OK then press the THX button
Use the arrow keys to scroll through the menu and the volume control to
change the setting. See diagram below
DVD SAT AV VCR PHONO/AUX CD TUNER TAPE DVDA
THX
UP
MODE
DOWN
EFFECT
DISPLAY MENU OK
The menu will appear as below.
16* RC5 Zone 1 <default> Option on RC5 system code 19
16* RC5 Zone 2 <default> Option on RC5 system code 19
Scrolling Messages Dealer demonstration tool with various messages
HQ Video OSD <on/off> OSD insert on HQ option
Restore Defaults <on/off> Restores AV8 too original factory settings
Diagnostics <on/off> RS232 Control Only – Arcam use only
Front Panel IR RX <on/off> Option to disable front panel IR reception
Exit <Press OK to exit> Exit menu
Rear panel trigger lead configuration
This lead allows the AV8/9 to power toggle on/off the P7 Amplifier and Zone 2
as well (The menu must be setup)
AV8
Zone 1
Mono
Zone 2
Mono
Zone 1
Zone 2
0V
Zone 1
Zone 2
OV
0V

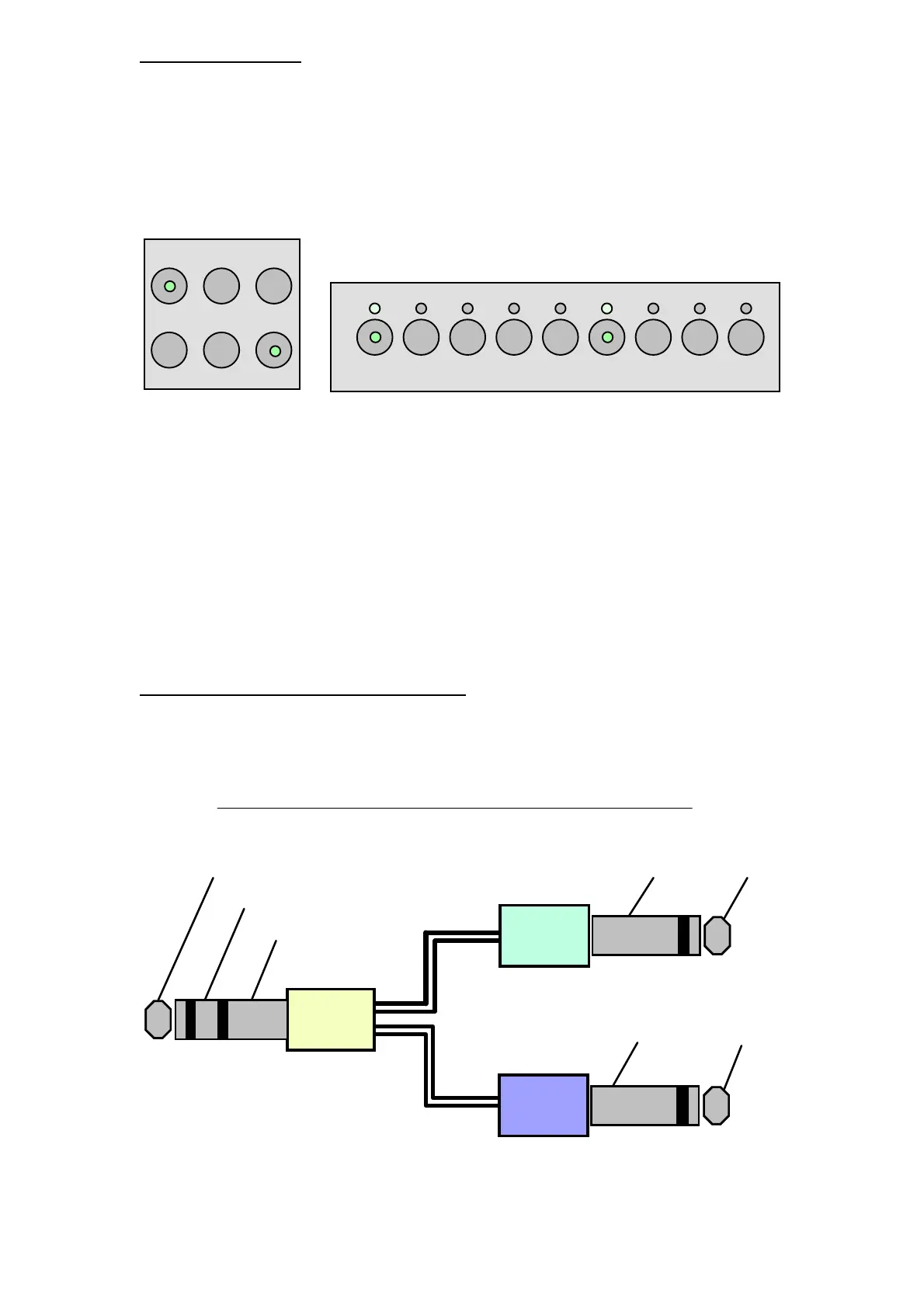

AV8 trigger output Zone 1 and Zone 2 - 3.5mm configuration.
