Arcam SA-30 - Printed Circuit Boards (Bottom Views)

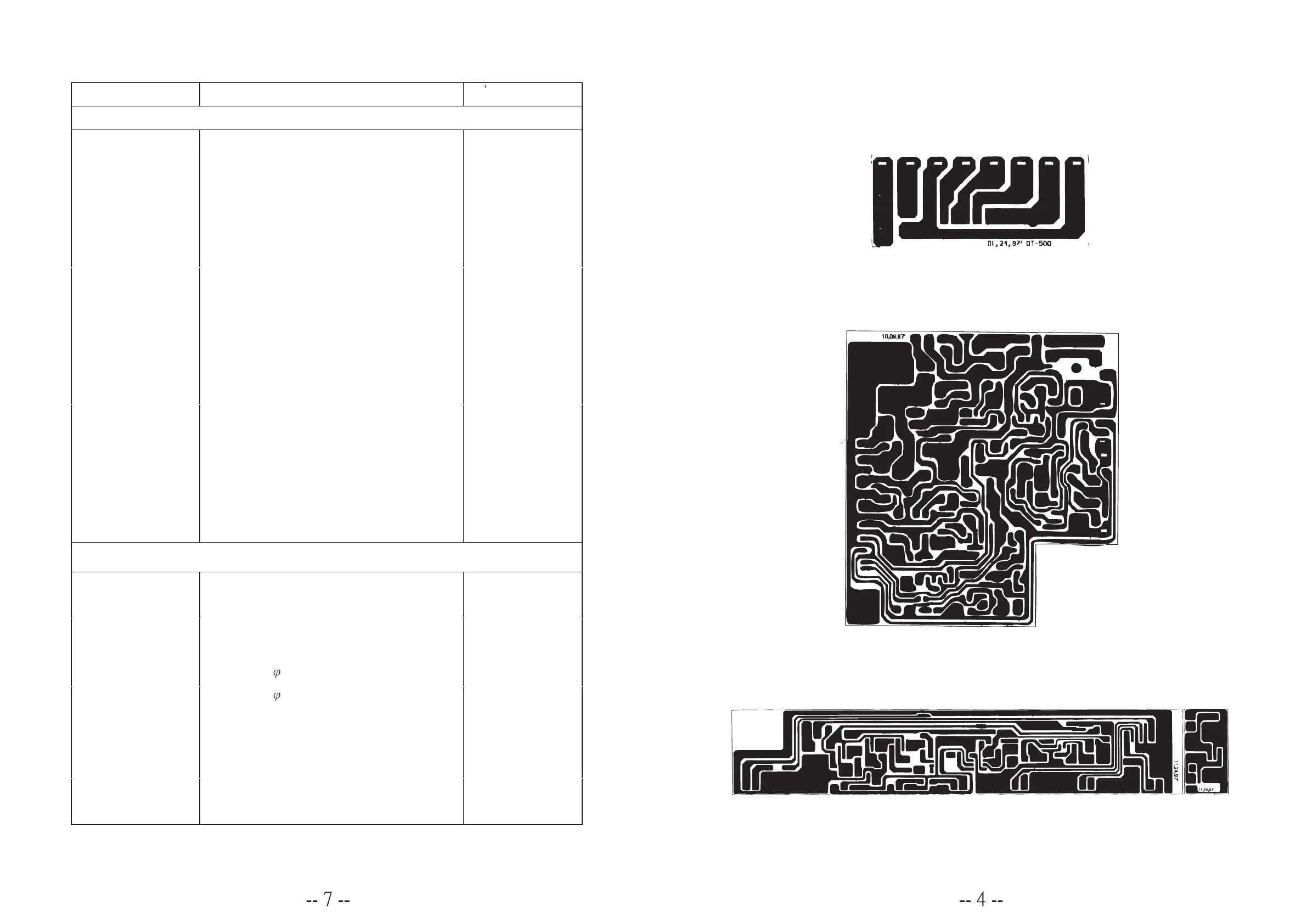

PRINTED CIRCUIT BOARDS (bottom views)
OUTPUT PCB
POWER PCB
PRE-PCB
30 WATT-VOL
30 WATT-PU
30 WATT-POW
ELECTRICAL PARTS LIST
Ref. No. Description
Mfr
s Part No.
Ceramic Capacitors
C1 0.001uF Z5E CC210G
C10 0.001uF Z5E CC210G
C12 0.001uF Z5E CC210G
C13 470PF Y5E CC147D
C17 100PF SL CC110C
C18 470PF Y5E CC147D
C3 22PF NPO CC022B
C37 100PF SL CC110C
C39 100PF SL CC110C
C41 33PF NPO CC033B
C42 33PF NPO CC033B
C45 150PF SL CC115C
C47 33PF NPO CC033B
C49 33PF NPO CC033B
C51 10PF NPO CC010B
C52 330PF Y5E CC133D
C6 0.001uF Z5E CC210G
C8 22PF NPO CC022B
Electrolytic
Capacitors
C11 10uF 16V CE610D
C14 47uF 25V CE647E
C2 1uF 50V CE510G
C20 1uF 50V CE510G
C23 2200uF 35V 16*31.5mm CE822F
C24
2200uF 35V
16*31.5mm
CE822F
C25 10uF 16V CE610D
C26 22uF 16V CE622D
C27 33uF 16V CE633D
C28 10uF 16V CE610D
C29 33uF 16V CE633D
