Arcan A20015 - Parts List and Diagram

XL20 User Manual 5 rev. 081314

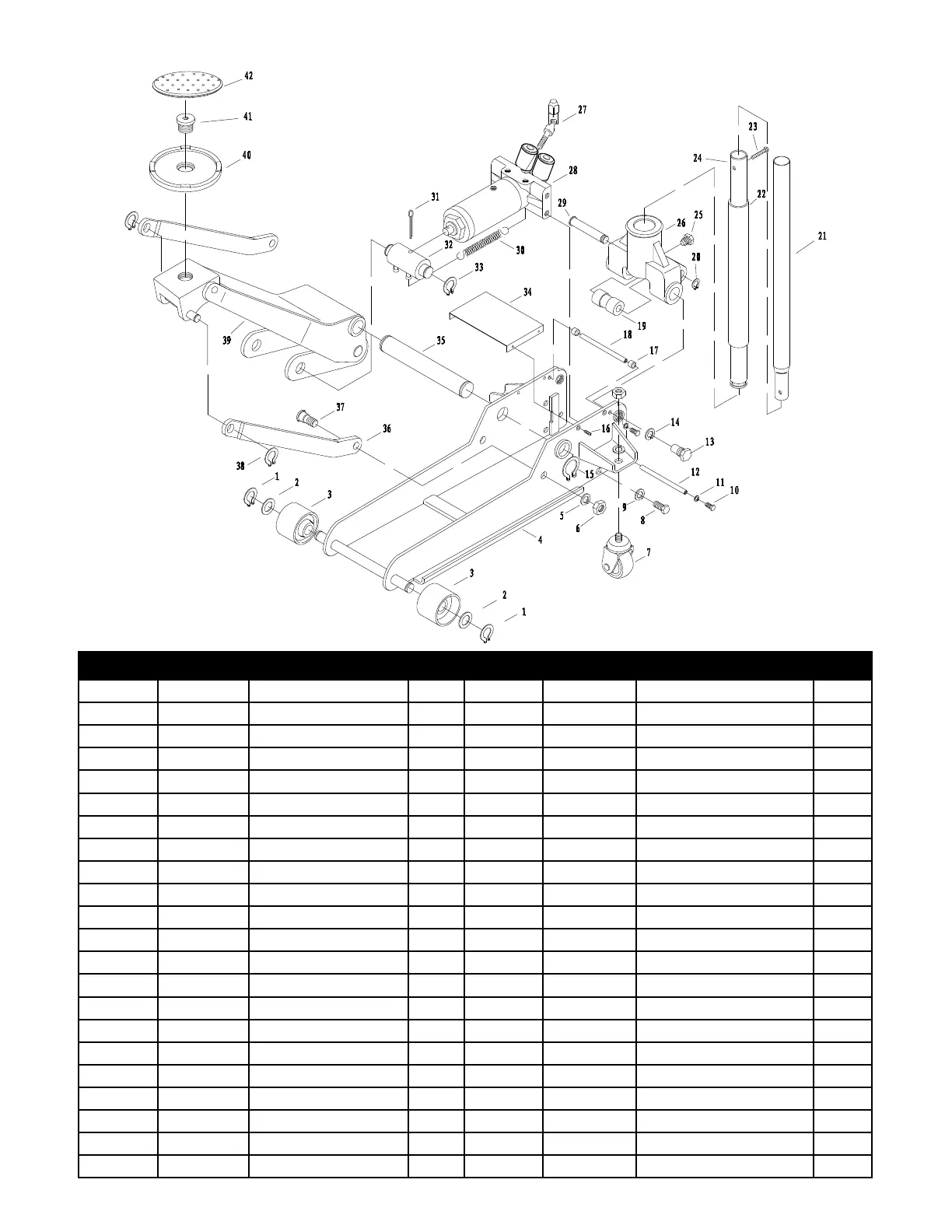

PARTS LIST AND DIAGRAM
ITEM NO. PART NO. DESCRIPTION QTY ITEM NO. PART NO. DESCRIPTION QTY
1 RS35T01 Retaining Ring 20 2 23 RS35T16 Bolt M6x32 1
2 RS35T02 Washer 20 2 24 RS35T15BK Lower Handle 1
3 RS35T03BK Front Wheel 2 25 RS35T13 Handle socket screw 1
4 Frame 1 26 Handle Yoke 1
5 Washer 16 4 27 RS35T18 Universal Joint Assembly 1
6 Nut M16 4 28 RS20T28 Power Unit Assembly 1
7 RS35T09BK Rear Caster Assembly 2 29 Roller Shaft 1
8 Bolt M10x22 4 30 RS35T19 Spring 2
9 Washer 10 4 31 Pin 4x55 1
10 Bolt M8 4 32 Hydraulic Unit Adaptor 1
11 Washer 8 4 33 Retaining Ring 19 2
12 Shaft 2 34 Cover plate 1
13 RS35B11 Handle Yoke Bolt 2 35 Lift Arm Shaft 1
14 Washer 18 2 36 Linkage 2
15 Retaining Ring 25 2 37 Screw 2
16 Bolt M5x12 4 38 RS35T04 Retaining ring 16 2
17 Rubber sleeve 2 39 Lifting arm assembly 1
18 Connecting Rod 1 40 Saddle 1
19 Roller 1 41 RS35018 Saddle screw 1
20 Retaining Ring 12 1 42 RS35T05B Rubber Saddle Pad 1
21 RS35T17BK Upper Handle 1
22 RS35T20NL Handle Bumper 1
