Arcan A20018 - Parts List and Diagram

A20018 User Manual 5 02/07/2020

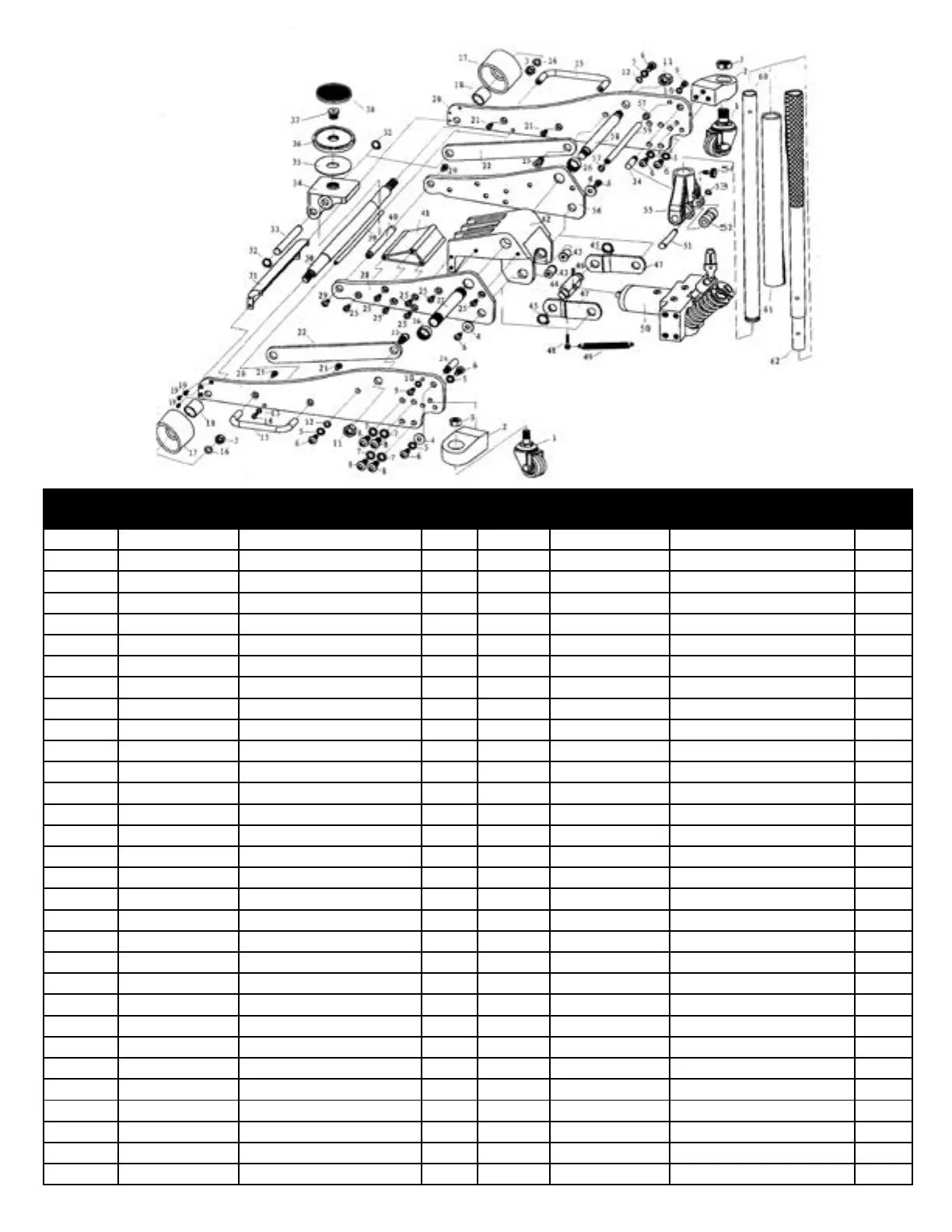

PARTS LIST AND DIAGRAM
ITEM NO MODEL NO DESCRIPTION QTY ITEM NO MODEL NO DESCRIPTION QTY
1 RS6603ASJ01R Rear Caster 2 34 Saddle Base 1
2 Rear Caster Bracket 2 35 Saddle Gasket 1
3 RS6603ASJ03 Locking Nut M12 4 36 RS6603ASJ36BK Saddle 1
4 Washer 10 4 37 Saddle Bolt 1
5 Tooth Washer 10 10 38 RSALJ3T38 Saddle Pad 1
6 Bolt M10x25 10 39 Rod 1
7 Tooth Washer 12 8 40 Saddle Base Axle 1
8 Bolt M12x25 8 41 Lift Arm Core 1
9 Bolt M8x25 2 42 Lift Arm Mounting Plate 1
10 Tooth Washer 8 2 43 Linkage Pin 2
11 Locking Nut M18 2 44 Linkage Block 1
12 Washer 10 2 45 Retaining Ring 22 2
13 Tooth Washer 6 2 46 Pin 4x40 1
14 Bolt M6x25 2 47 Linkage 2
15 RS6603ASJ15 Carry Handle (w/hardware) 2 48 Bolt M6x25 2
16 Washer 2 49 Lift Arm Return Spring 2
17 RS6603ASJ17 Front Wheel Assembly 2 50 RS6603ASJ50 Power Unit Assembly 1
18 Bushing 2 51 Pump Roller Axle 1
19 Bolt M6x20 6 52 Pump Roller 1
20 Side Plate 2 53 Retaining Ring 12 1
21 RS6603ASJ21 Bolt M8x25 4 54 RS6603ASJ54 Handle Set Screw 1
22 Radius Linkage 2 55 RS6603ASJ55 Handle Yoke Assembly 1
23 Radius Linkage Axle Bolt 2 56 Lift Arm Right Side Plate 1
24 Yoke Axle 2 57 Rubber Guard 2
25 Bolt M10x25 14 58 Lift Arm Axle 1
26 Screw Sleeve 2 59 Rod 1
27 Axle Sleeve 1 60 RS6603ASJ60BK Lower Handle Section 1
28 Lift Arm Left Side Plate 1 61 RSALJ3T61 Handle Bumper 1
29 Bolt M10x16 2 62 RS6603ASJ62BK Upper Handle Section 1
30 Front Wheel Axle 1 RSA20018PLK Product Label Kit 1
33 Radius Linkage Axle 1
