Arcan XL20 - PARTS LIST AND DIAGRAM

XL20 User Manual 5 rev. 011413

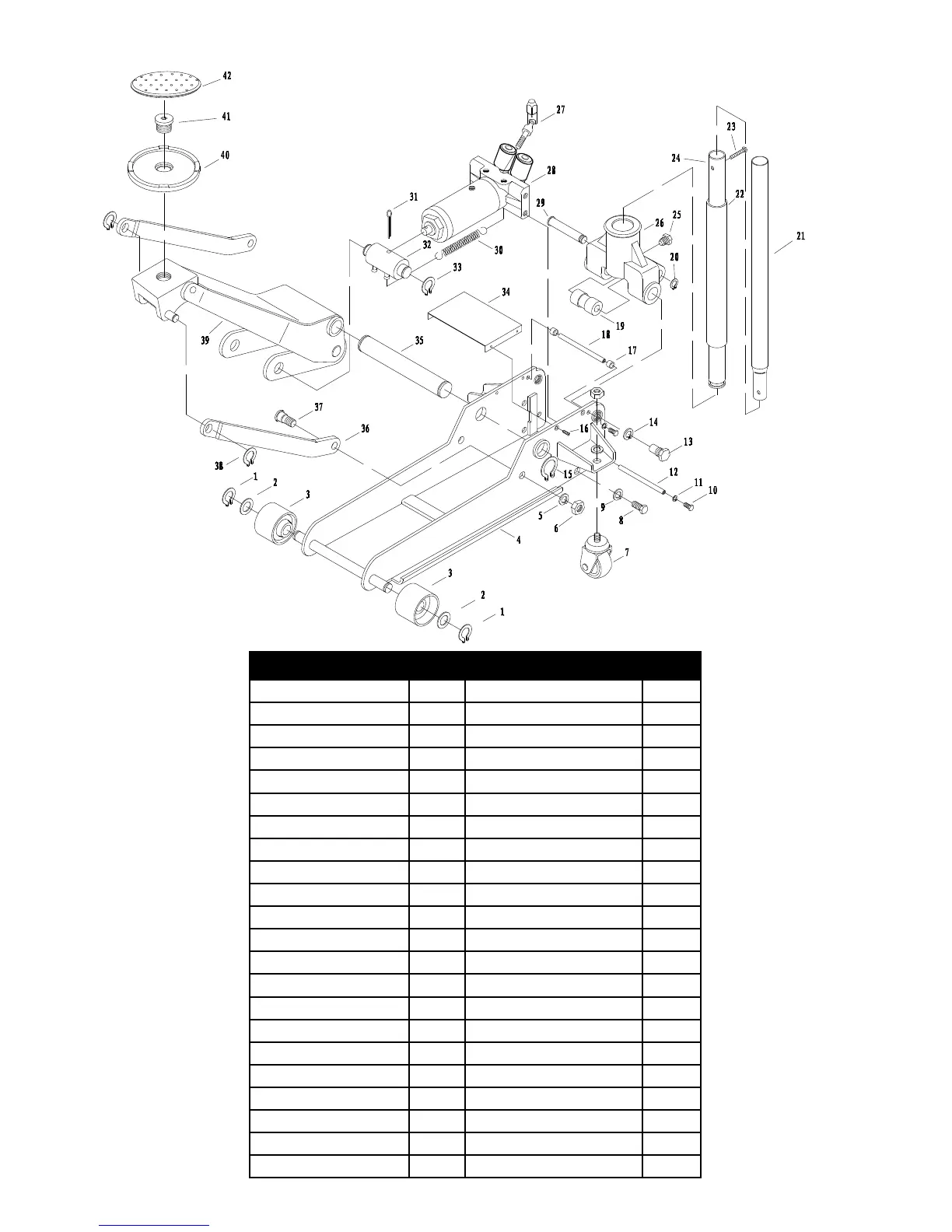

PARTS LIST AND DIAGRAM
DESCRIPTION QTY DESCRIPTION QTY
Retaining Ring 20 2 Bolt M6x32 1
Washer 20 2 Lower Handle 1
Front Wheel 2 Handle socket screw 1
Frame 1 Handle Yoke 1
Washer 16 4 Universal Joint Assembly 1
Nut M16 4 Power Unit Assembly 1
Rear Caster Assembly 2 Roller Shaft 1
Bolt M10x22 4 Spring 2
Washer 10 4 Pin 4x55 1
Bolt M8 4 Hydraulic Unit Adaptor 1
Washer 8 4 Retaining Ring 19 2
Shaft 2 Cover plate 1
Handle Yoke Bolt 2 Lift Arm Shaft 1
Washer 18 2 Linkage 2
Retaining Ring 25 2 Screw 2
Bolt M5x12 4 Retaining ring 16 2
Rubber sleeve 2 Lifting arm assembly 1
Connecting Rod 1 Saddle 1
Roller 1 Saddle screw 1
Retaining Ring 12 1 Rubber Saddle Pad 1
Upper Handle 1
Handle Bumper 1
