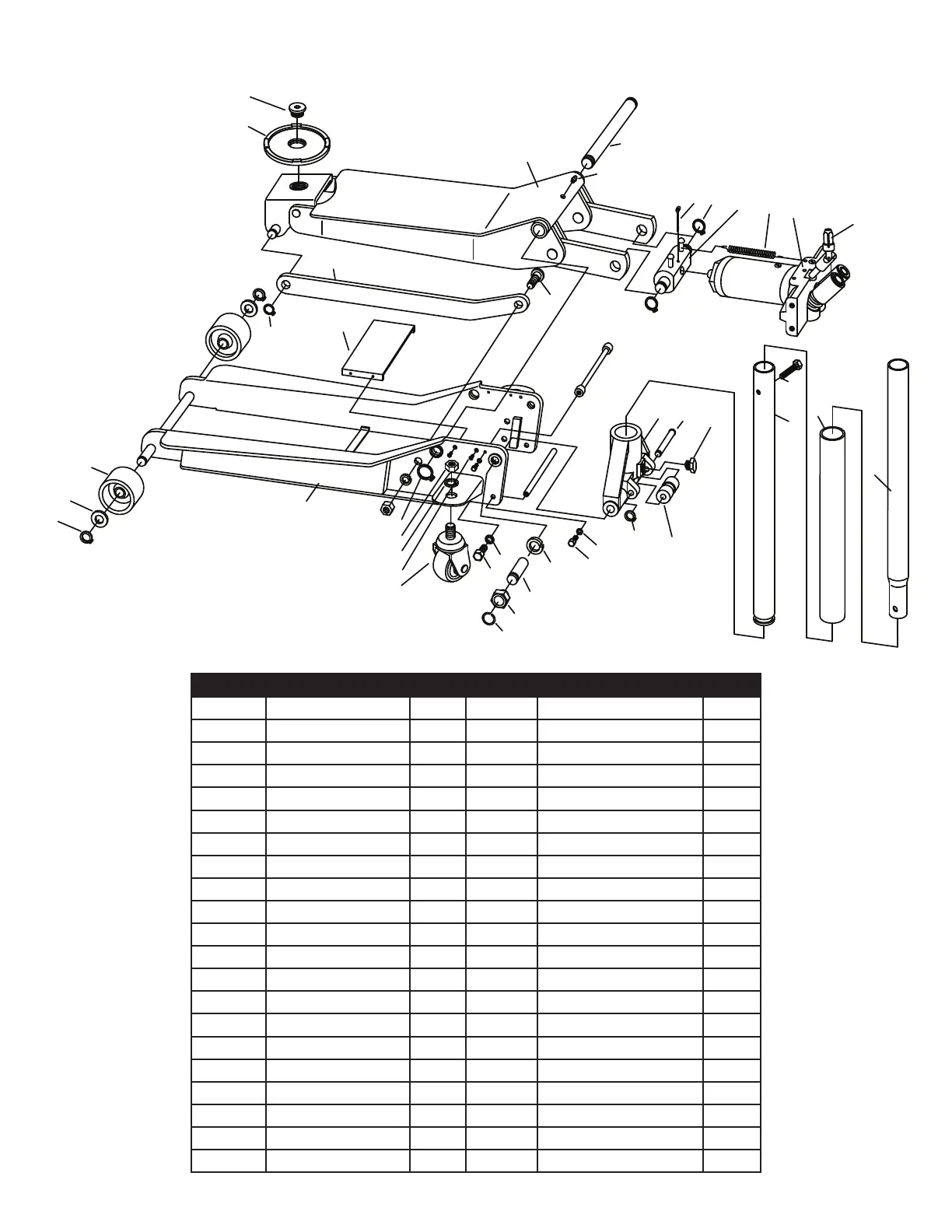

PARTS LIST AND DIAGRAM
ITEM NO DESCRIPTION QTY ITEM NO DESCRIPTION QTY
1 Retaining Ring(20) 2 22 Roller Shaft 1
2 Washer(20) 2 23 Screw 1
3 Front Wheel 2 24 Handle lever “A ” 1
4 Frame 1 25 Handle Bumper 1
5 Retaining Ring(25) 2 26 Handle lever “A ” 1
6 Nut(M16) 4 27 Hydraulic Unit 1
7 Washer(16) 4 28 Spring 2
8 Screw(M5X12) 4 29 Hydraulic Unit Adaptor 1
9 Rear Caster 2 30 Retaining Ring(22) 2
10 Screw(M10X25) 4 31 Pin(A4X55) 1
11 Washer(10) 4 32 Lift Arm Shaft 1
12 Retaining Ring(15) 2 33 Zerk 1
13 Nut 2 34 Lift Arm 1
14 Shaft 2 35 Bolt 2
15 Washer(20) 2 36 Cover Plate 1
16 Nut(M8X20) 4 37 Retaining Ring(14) 2
17 Washer(8) 5 38 Radius Linkage 2
18 Set Screw Handle 1 39 Saddle 1
19 Handle Socket 1 40 Saddle Screw 1
20 Retaining Ring(12) 1 41 Universal rotating device 1
21 Roller 1
