HYDRAULIC MAINTENANCE GUIDE
IMPORTANT: Service jacks are designed for lifting purposes only; always support raised load with jack stands.
REGULAR MAINTENANCE
MONTHLY or as necessary (depending on usage)

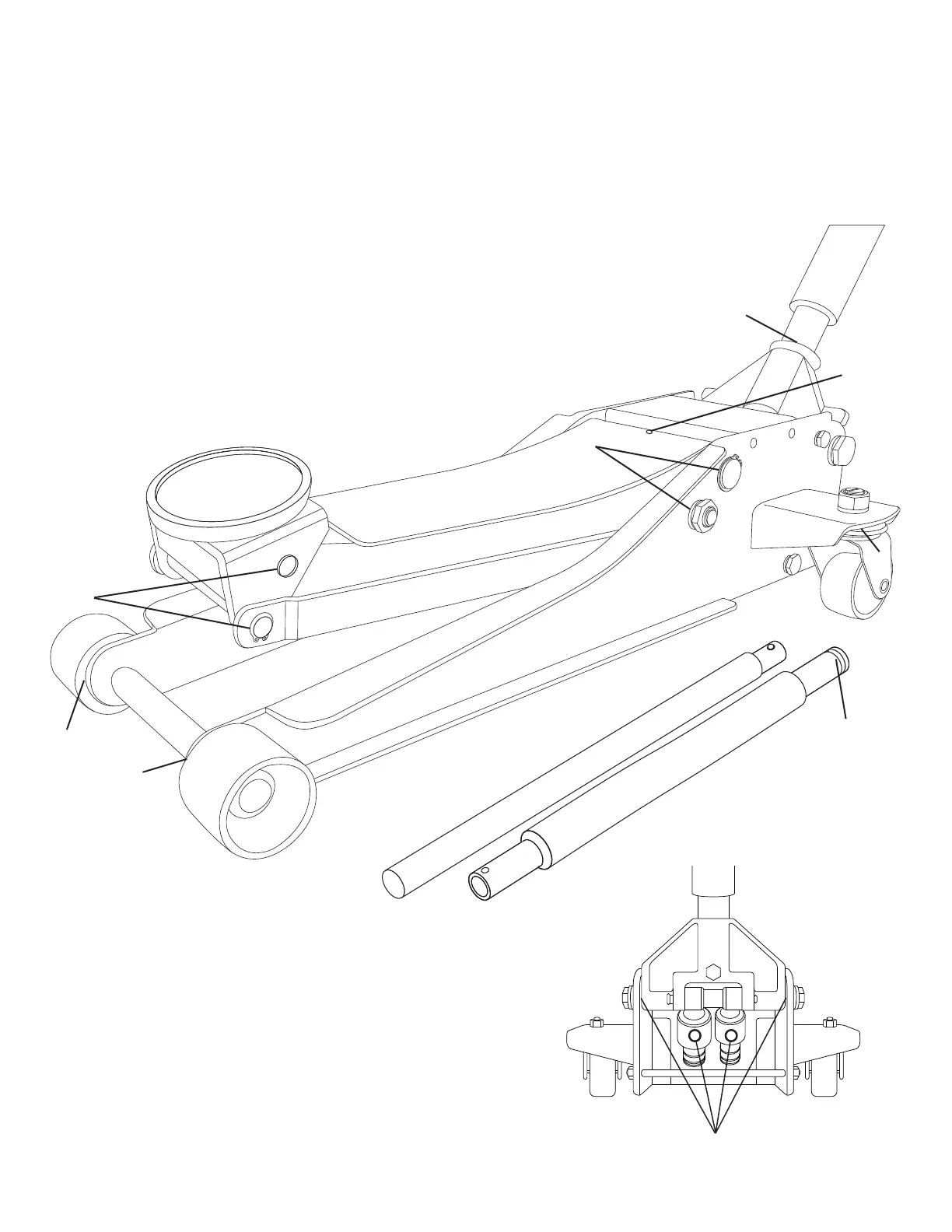

#1 Using a grease gun, add grease to grease tting in the lift arm pivot shaft.
(Use a multi-purpose NLGI type grease only.)
#2 Lubricate all linkages and pivot points.
(Use white lithium spray grease only.)
#3 Remove handle; lubricate handle receptacle and handle end.
(Use white lithium spray grease only.)
#4 Lubricate both rear casters bearings and both front wheels.
(Use white lithium spray grease only.)
Tighten all accessible hardware.
#2
#3
#4
#4
#4
#1
#2
#3
#2
