XL3000 5 rev. 121218

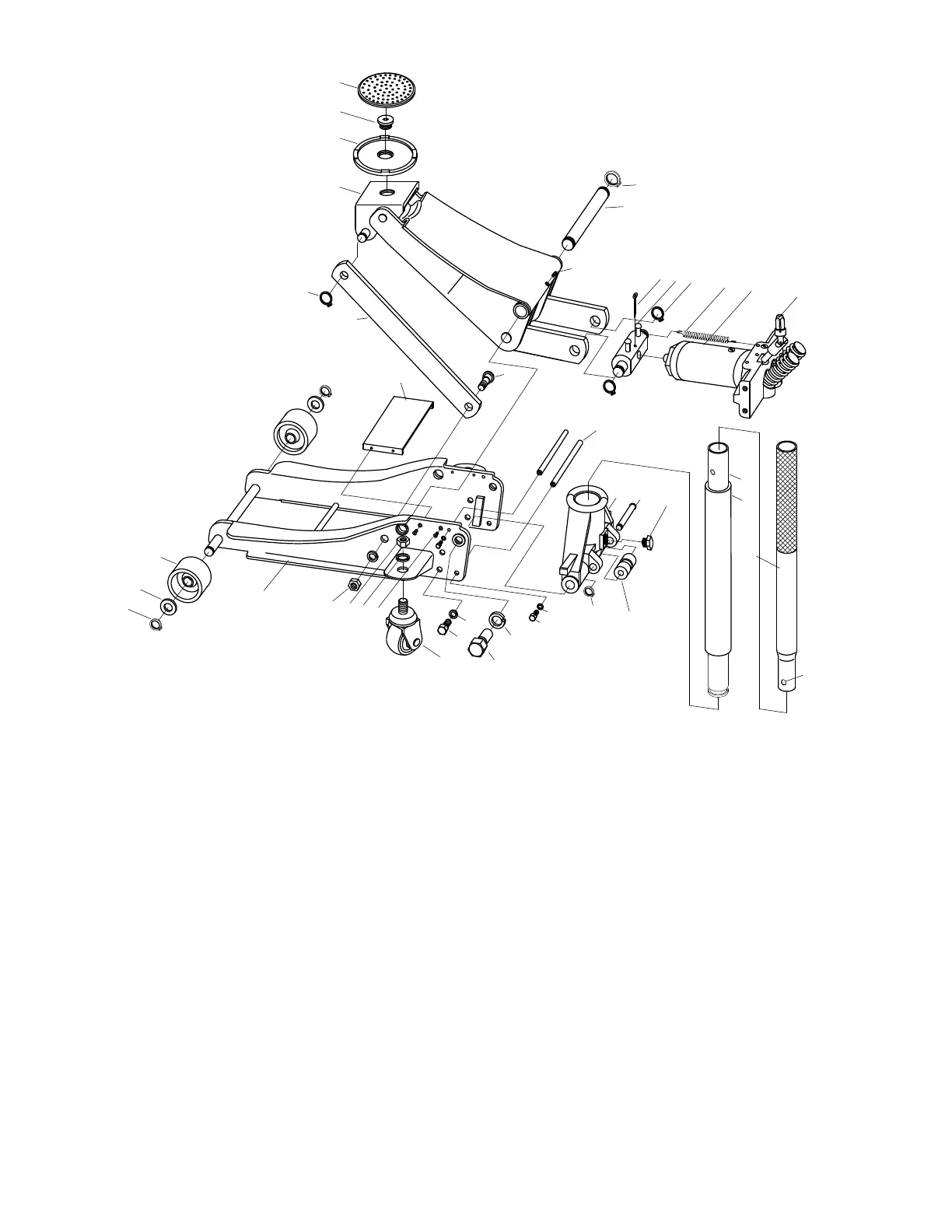

PARTS LIST AND DIAGRAM
2
1
4
3
7
6
8
11
9
10
12
13
17
16
18
19
20
21
22
24
35
40
38
39
41
31
29
30
28
27
28
26
25
23
33
14
15
34
32
36
37
5
ITEM
NO. DESCRIPTION PART NO. QTY
1 Retainer ring 20 2
2 Washer 2
3 Front wheel RS300002 2
4 Frame 1
5 Nut M16 (thinner) 2
6 Nut M16 2
7 Washer 16 4
8 Bolt M5X12 4
9 Rear caster assembly RS300003 2
10 Bolt M10X22 4
11 Washer 10 4
12 Yoke Bolt 2
13 Washer 18 2
14 Bolt M8X20 4
15 Washer 8 4
16 Retainer ring 12 1
17 Roller 1
18 Yoke RS300005 1
19 Roller pin 1
20 Yoke set screw RS300006 1
21 Upper handle RS300007 1
ITEM
NO. DESCRIPTION PART NO. QTY
22 Haddle bumper RS35T20NL 1
23 Lower handle RS300012 1
24 Handle button RS1300216 1
25 U-joint 1
26 Power unit RS300009 1
27 Return spring RS300010 2
28 Retainer ring 25 4
29 Linkage block 1
30 Cotter pin 1
31 Lift arm axle 1
32 Grease fitting 1
33 Cross bar 2
34 Link rod bolt 2
35 Cover plate 1
36 Link rod 2
37 Retainer ring 16 2
38 Lift arm 1
39 Saddle 1
40 Saddle bolt RS300011 1
41 Saddle pad RS35T05B 1
not shown Product Label Kit RSXL3000PLK
