ARCHEON EOlife X - Quick Start Guide of the Device

9
EN
VII. Quick start guide of the device
This section gives a short step-by-step description of how to use the EOlife X device. There is a more detailed description in
the next section, “VIII. Detailed product description and operating instructions”.

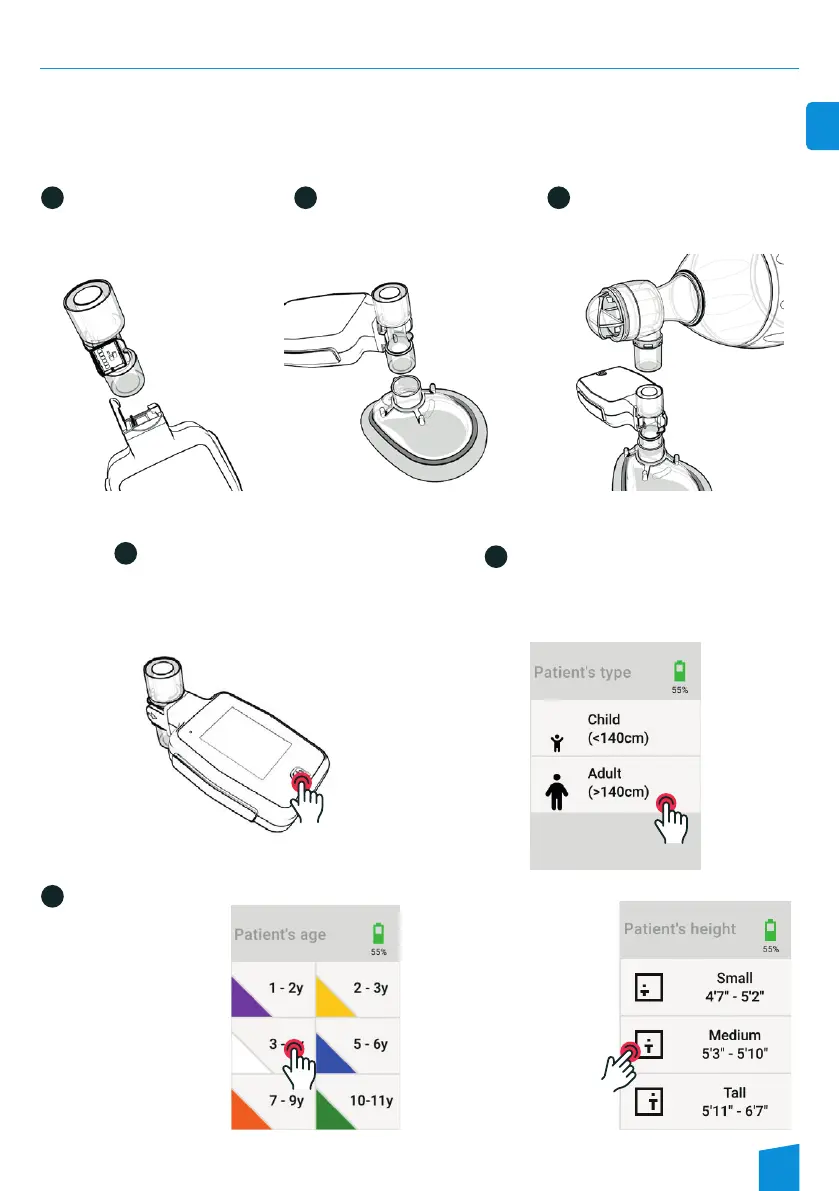

Assembly with the bag
EOlife X assembly with
the FlowSense® sensor
See “VIII 1 a) Assembly”
Assemble EOlife X, attaching the FlowSense® single use sensor and other devices to ventilate the patient (ventilation
interface and bag)
Start up EOlife X by pressing the
physical ON/OFF button
Press on the type of the patient :
▶ Child : the patient is a child
under 140 cm (4’7’’) tall.
▶ Adult : the patient is an adult
above 140 cm (4’7’’) tall.
According the patient type (child or adult), press on :
▶ Age of the
child patient
- purple : 1-2 years
- Yellow : 2-3 years
- White : 3-4 years
- Blue : 5-6 years
- Orange : 7-9 years
- Green : 10-11 years
1
4
5
6
Assembly with the
ventilation interface
2
3
▶ The height of the adult
patient :
- small : the patient’s height
is between 140 cm (4’7’’) and
160 cm (5’2’’)
- medium: the patient’s
height is between 160 cm
(5’3’’) and 180 cm (5’10’’)
- tall : the patient’s height is
between 180 cm (5’11’’) and
200 cm (6’7’’)
