Optima/ag3600
10
Removing the Glass Door
❖ Remove the top & bottom louvers (or optional front).
❖ Unhook the door latches found on the bottom of the firebox - shown below
❖ Carefully lift and remove the door.
❖ Place the door at a safe location where it cannot be scratched or damaged.
❖ If the glass door is damaged, it must be replaced with another glass door certified for this
appliance.
❖ Replacement glass doors are available through your Archgard dealer (See Replacement
Parts page 36)
Replacing the Glass Door
❖ Check the condition of the glass and the gasket before installing door.
❖ Carefully hook the door onto the 4 tabs on the top of the firebox. (2 left, 2 right)
❖ Connect the door latches, at the bottom of the door, by pulling forward on the 2 bottom
latches and hooking them over the lower door frame flange.
❖ Install the top & bottom louvers (or optional front).
If the glass has been damaged contact your dealer and replace the door assembly with a new
assembly provided by your dealer.
WARNING:
❖ Do not attempt to remove the glass door when the appliance is hot.
❖ Do not abuse the glass door.
❖ Do not strike or slam the glass.

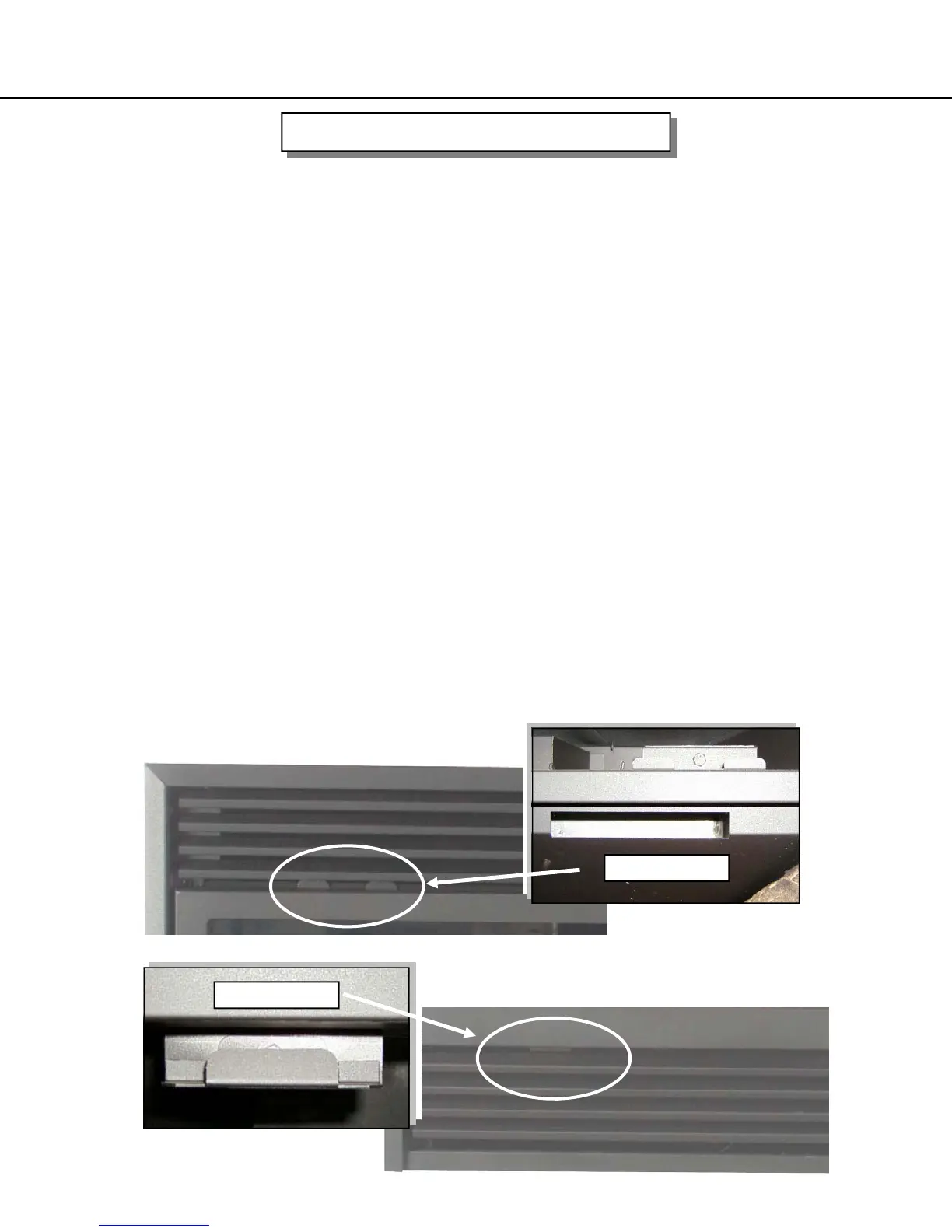

GLASS DOOR REMOVAL
TOP LATCH
BOTTOM LATCH
To Next Page
