Archgard Optima - Installation Clearance Requirements; Mantle and Sidewall Clearances

Optima/ag3600
8
INSTALLATION CLEARANCES
Mantle Height from Floor (B) Mantle Depth (A)
40" (1016 mm) 12" (305 mm)
39" (991 mm) 10-5/16" (262 mm)
38" (965 mm) 8-9/16" (217 mm)
37" (940 mm) 6-7/8" (175 mm)
36" (914 mm) 5-1/8" (130 mm)
35" (889 mm) 3-7/16" (81 mm)
34" (864 mm) 1-11/16" (43 mm)
Sidewall clearance (C) = 6" (305 mm) from edge of unit
Unexposed Back & Sidewalls = 0"
Internal Ceiling = 40" (1016 mm) from floor
Floor = 0"
Mantle = See Chart
Vertical Vent = 1” (25 mm) to outside surface
Horizontal Vent = 1” (25 mm) to outside side and bottom surface
Horizontal Vent = 2” (50 mm) to outside top surface.
Note: Check local codes for floor requirements. This fireplace is suitable for installation
on a combustible surface.

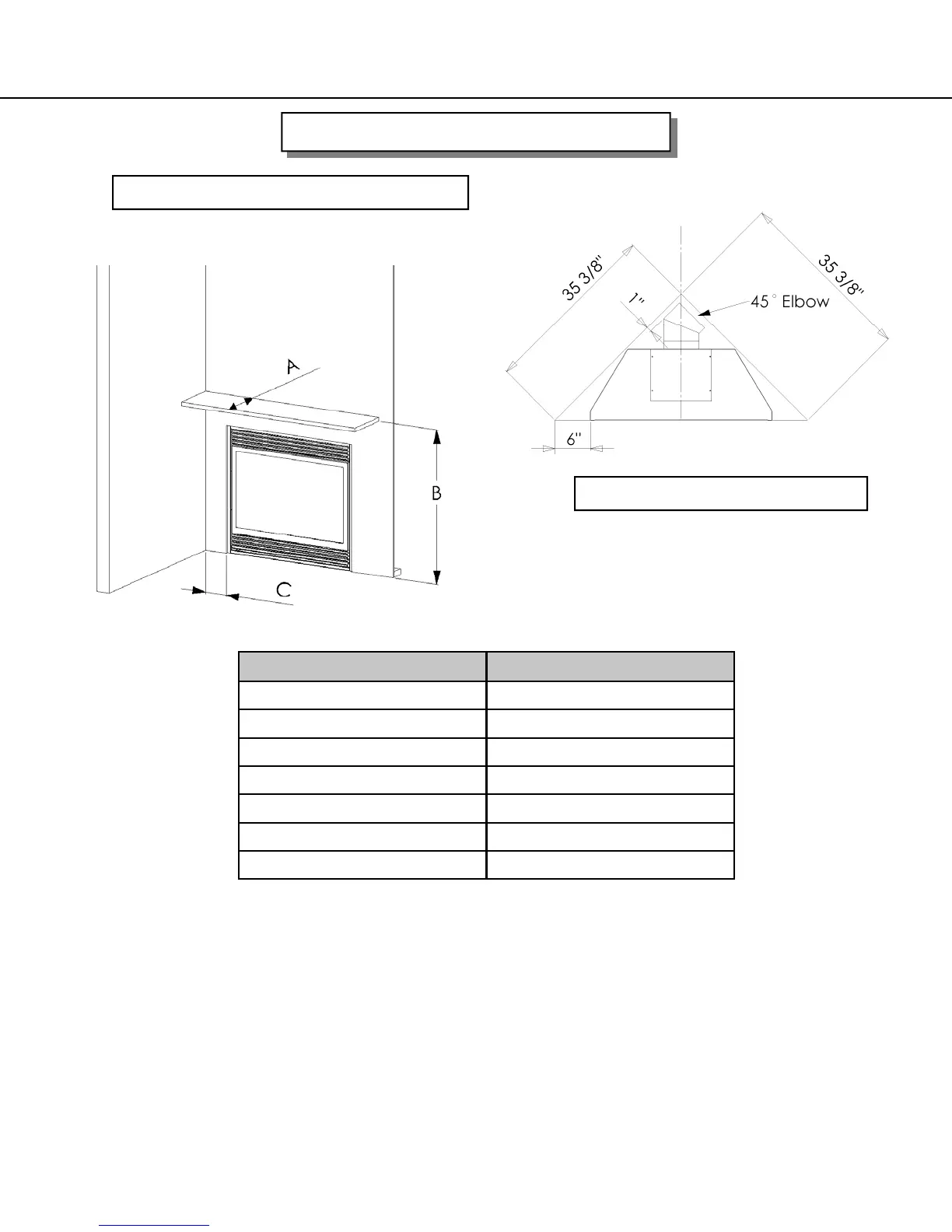

MANTLE & SIDEWALL CLEARANCES
CORNER FRAME DIMENSIONS
