Archgard Optima - Top or Rear Vent Conversion Procedure

Optima/ag3600
19
The appliance is easily converted from top vent
to rear vent.
The steps for converting are as follows:
1. Remove the top vent outer shell cover (#1)
2. Remove the top vent heat shield cover (#2)
3. Remove the outer collar assembly (#3)
4. Remove the exhaust collar assembly (#4)
5. Rotate the exhaust collar assembly and the
outer collar assembly to the rear vent
configuration and reinstall.
6. Install rear vent heat shield cover (#5)
7. Install rear vent outer shell cover (#6)
5
1
4
3
6
4
3
2

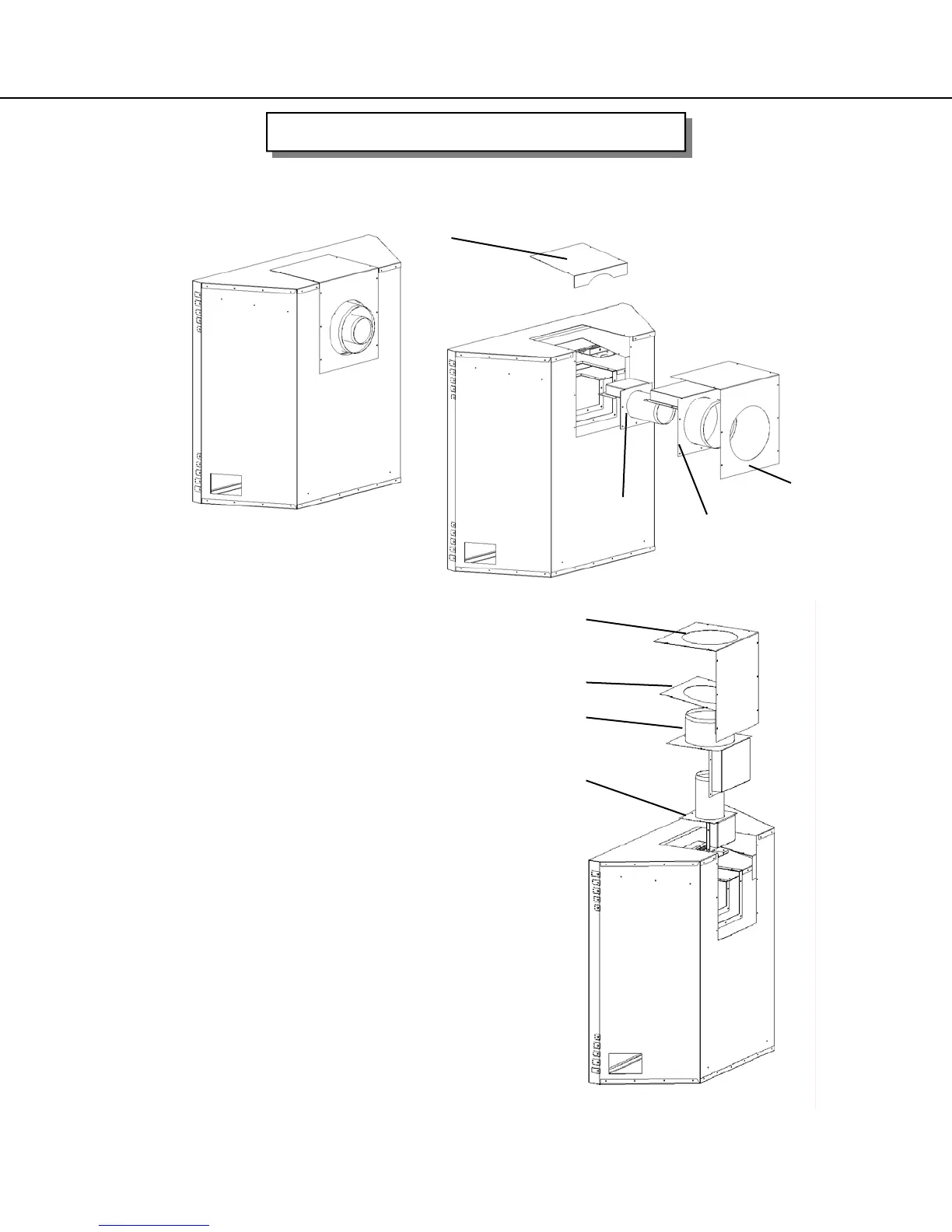

TOP / REAR VENT CONVERSION
