42

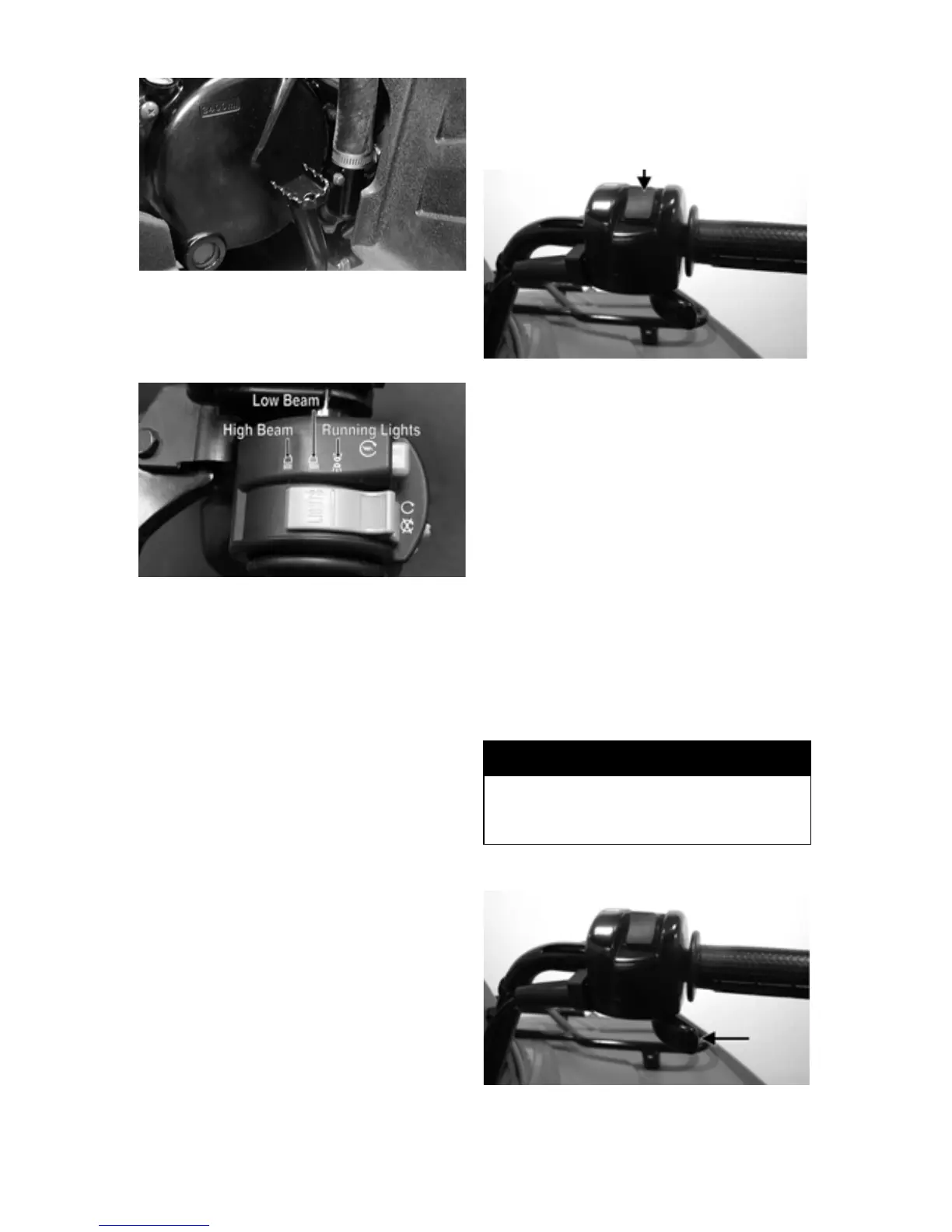

Rear Foot Brake
CF117
Pressing the rear foot brake downward
will apply the brake to the rear wheels.
Headlight HI/LO Switch
KM850A
Use the headlight HI/LO switch to select
the high or low headlight beam when the
ignition switch is in the LIGHTS posi-
tion. When the switch is in the HI posi-
tion, the high beam will illuminate. When
the switch is in the LO position, the low
beam will illuminate. When the switch is
in the Running Light position, the tail-
lights and running lights will illuminate.
Engine Stop Switch
OFF position — The ignition circuit is
off. The engine cannot be started or will
not run. If the engine stop switch is used
to stop engine without turning off igni-
tion switch, the battery may discharge.
RUN position — The ignition circuit is
on. The engine can start and run.
Starter Button
Pushing in on this button activates the
starter motor. Before starting the engine,
make sure the ignition switch is in the
ON position, the transmission is in neu-
tral, and the brake lever lock is engaged.
NOTE: This ATV has safety inter-
lock switches which prevent the
starter motor from activating when
the transmission is not in neutral.
Drive Select Switch
KC342B
This switch allows the operator to oper-
ate the ATV in either two-wheel drive
(rear wheels) or four-wheel drive (all
wheels). For normal riding on flat, dry,
hard surfaces, two-wheel drive should be
sufficient. In situations of aggressive trail
conditions, four-wheel drive would be
the desired choice.
To either engage or disengage the front
wheels, move the switch to the 4WD
position or to the 2WD position.
Reverse Override Switch
This ATV is equipped with a reverse
speed limiter system. When additional
RPM is needed in reverse, depress and
hold the override switch.
Throttle Lever
KC342A
! WARNING
Never activate the override switch
while the throttle is open as a loss of
control may result.
