7. Odometer/Trip Meter - Odometer
registers the total distance the vehi-
cle has traveled. The trip meter is
resetable and can be used to measure
trip or trip legs. The odometer can-
not be reset.
8. Gear Position Indicator - Indicates
which gear is currently selected - R
(reverse)/N (neutral)/L (low range)/
H (high range).
9. High Beam Indicator - The High
Beam icon will appear only when
the headlights are on high beam.
10. 4WD Lock Indicator - Displays
LOCK when the front differential
lock has been engaged. Not utilized
on this model.
11. Drive Select Indicator - Displays
4WD when selected by the drive
select switch or when the 4WD lock
is engaged. The display is blank
when in 2WD.
12. Speedometer/Tachometer - Indicates
the approximate vehicle speed in miles
per hour (MPH), kilometers per hour
(KPH), or RPM.
Condition Warning Display - Uses odom-
eter/trip meter display of the LCD to
warn of a system error condition requir-
ing attention.
A. Volt - The LCD will go blank
except the word VOLT will flash
on the LCD whenever a low volt-
age (<9 DC volts) or a high volt-
age (>16 DC volts) is detected.
When voltage returns to normal,
the gauge must be reset by turning
the ignition key to the OFF posi-
tion and then to the ON position.
B. EFI - The LCD will go blank
except a diagnostic trouble code
(DTC) code will flash on the
LCD and a wrench icon will be
displayed whenever an elec-
tronic fuel injection malfunction
is detected. After 30 seconds,
the LCD will return to normal;
however, the DTC and wrench
icon will continue to be dis-
played until the malfunction is
corrected.
 NOTE: Take the ATV to an autho-
rized Arctic Cat ATV dealer to have
the EFI error corrected and to have
the ECM reset as soon as possible.
Primer - Cold Start
(400)

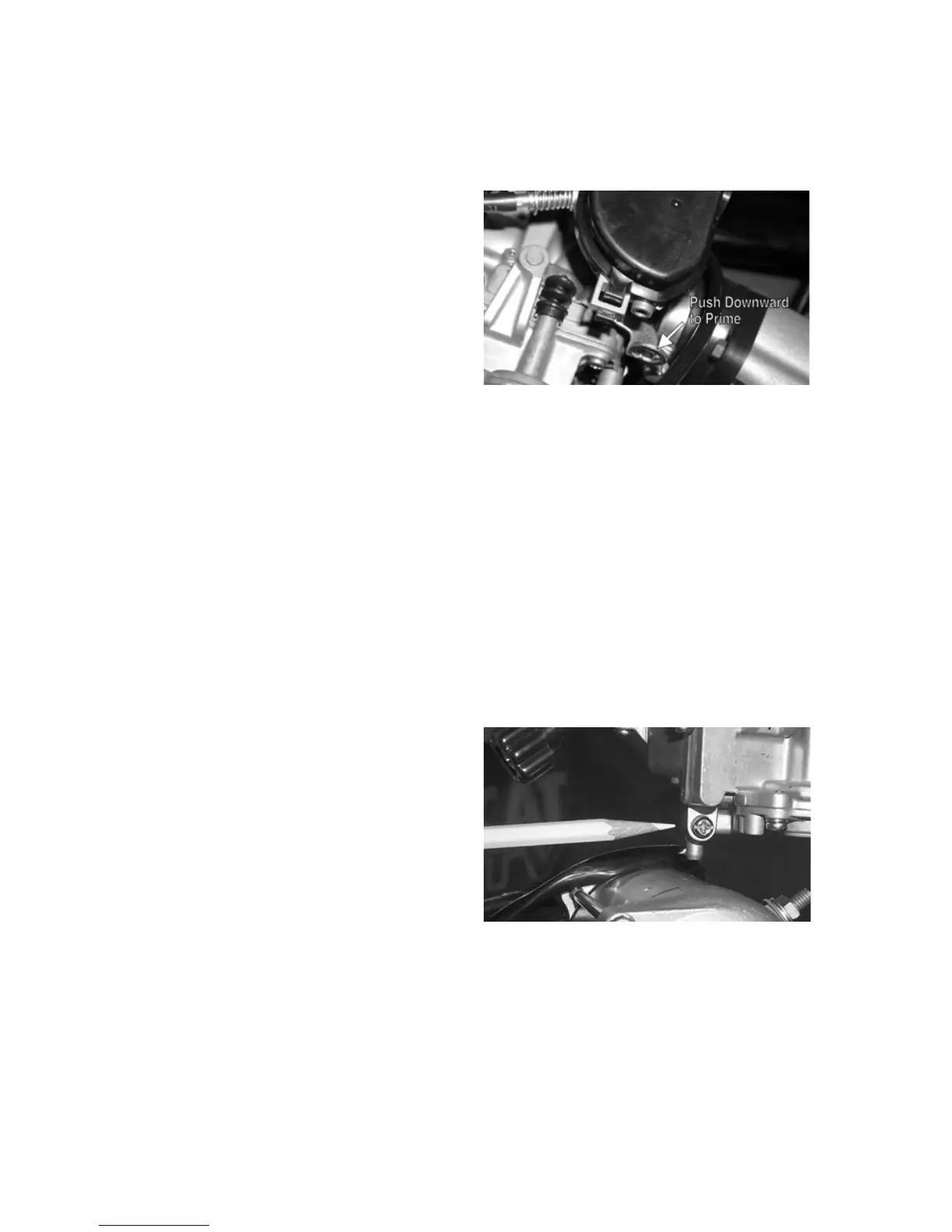

CF123A
The primer is located on the carburetor.
Depress and release the lever several times
prior to attempting to start a cold engine.
Gas/Vent Hoses
Replace the gas hose every two years. Dam-
age from aging may not always be visible.
On the 400, do not bend or obstruct the
routing of the carburetor vent hose. Make
certain that the vent hose is securely con-
nected to the carburetor and hose holder
and the opposite end is always open.
Carburetor Float Bowl
Drain (400)
AF925
Periodically, the float bowl should be
drained to remove condensation. To drain
the float bowl, use the following procedure.
1. Direct the hose from the float bowl
drain into a container.
