45

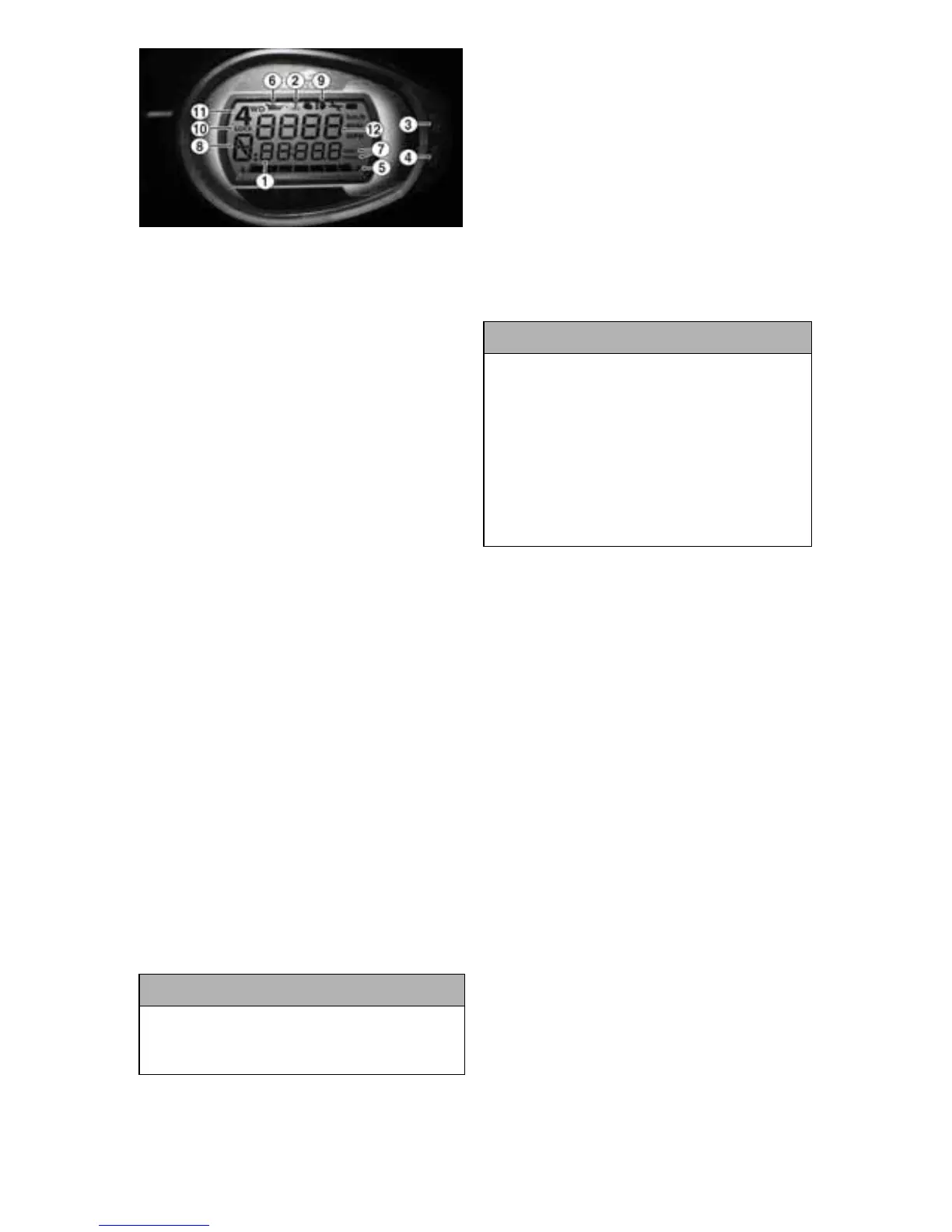

EFI-011A
A. With the ignition switch ON,
press and release the Set Button
(4) until the Clock (1) is dis-
played; then press and hold the
Set Button (4) to activate the set
mode (clock display flashing).
B. Press and release the Set Button
(4) to set minutes or the Mode
Button (3) to set hours. Holding
the respective button down will
scroll the display.
NOTE: Clock memory power is
supplied through the 15-amp acces-
sory fuse and verified during gauge
“power-up” and reset. In the event of
clock memory power failure (blown
fuse, etc.), the gauge will “power-
up,” reset, and shut down repeatedly
until clock memory power is
restored. Always check the 15-amp
accessory fuse if this gauge condi-
tion is noted.
NOTE: The engine hour meter will
not activate until engine speed
exceeds 500 RPM.
2. Temperature Indicator - If the engine
coolant temperature exceeds the nor-
mal operating range, the temperature
icon will begin flashing and the LCD
will go blank for 30 seconds; then the
LCD will return to normal. However,
the temperature icon will continue to
flash.
NOTE: High engine RPM, low vehi-
cle speed, or heavy load can raise
engine temperature. Decreasing
engine RPM, reducing load, and
selecting an appropriate transmis-
sion gear can lower the temperature.
NOTE: Debris in front of the
engine (or packed between the
cooling fins of the radiator) can
reduce cooling capacity. Using a
garden hose, wash the radiator and
the engine to remove any debris
restricting air flow.
3. Mode Button - Shifts the gauge
through two operating modes:
speedometer/tachometer and MPH/
KPH.
NOTE: The Mode Button must be
pressed and released to shift
speedometer/tachometer modes. It
must be pressed and held to shift
MPH/KPH modes.
4. Set Button - The Set Button is used
to select the gauge display of clock,
hour meter, trip 1, trip 2, and odome-
ter. It is also used to activate the
clock set function and adjust the
minute display on the clock.
5. Fuel Level Indicator - Indicates
approximate amount of gasoline in
the gas tank.
NOTE: When the bottom seg-
ment flashes, approximately 3.5 L
(0.92 U.S. gal.) of gasoline remains
in the tank.
6. Oil Pressure Indicator - Will be dis-
played during self-test at start-up. It
will not be displayed during normal
operation as oil pressure is not moni-
tored on these models.
CAUTION
Continued operation with high
engine temperature may result in
engine damage or premature wear.
CAUTION
Arctic Cat does not recommend
using a pressure washer to clean the
radiator core. The pressure may
bend or flatten the fins causing
restricted air flow, and electrical
components on the radiator could
be damaged. Use only a garden hose
with spray nozzle at normal tap pres-
sure.
