11. Install the center console; then install
the driver and passenger seats making
sure they are securely latched.
Front Differential/Rear
Drive Gear Lubricant
(Inspecting/Changing)
Inspect and change the gear lubricant in
each according to the Maintenance
Schedule. When changing the lubricant,
use the appropriate hypoid oil and use the
following procedure.

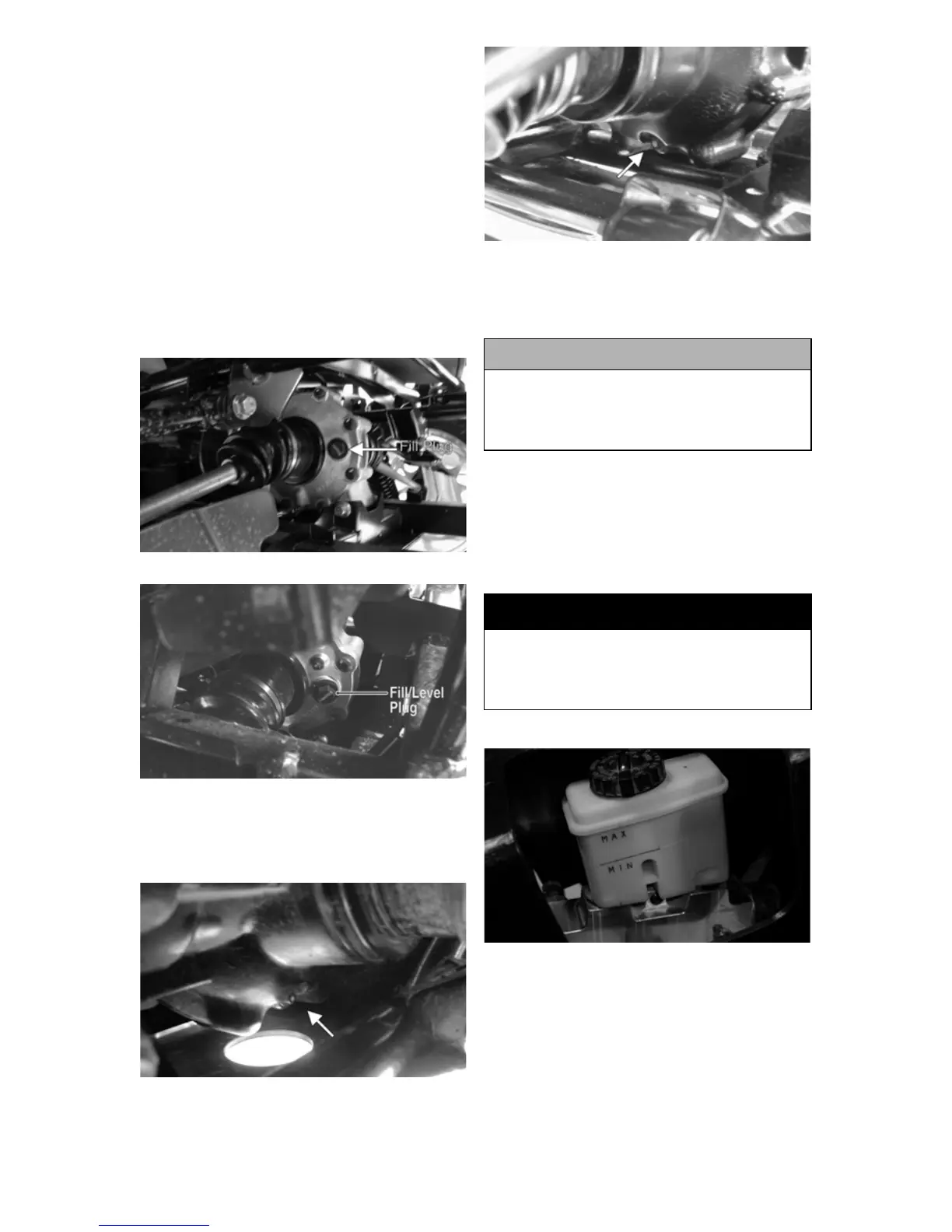

1. Place the vehicle on level ground.
2. Remove each oil fill plug.
PR064A
PR065A
3. Drain the oil into a drain pan by
removing in turn the drain plug from
each.
CF107A
CF106A
4. After all the oil has been drained,
install the drain plugs and tighten to
45 in.-lb.
5. Pour recommended oil into each fill
hole.
6. Install the fill plugs and tighten to 16
ft-lb.
Hydraulic Brake
Brake Fluid
CF127
1. Check the brake fluid level in the
brake fluid reservoir. The fluid level
must be maintained between the
MAX and MIN level marks. If the
level in the reservoir is low, add DOT
4 brake fluid.
CAUTION
Inspect the oil for any signs of metal
filings or water. If found, take the
vehicle to an authorized Arctic Cat
dealer for servicing.
! WARNING
Be sure to inspect the hydraulic
brake system before each use.
Always maintain brakes according to
the Maintenance Schedule.
