Fuses
The fuses are located in a power distribu-
tion module under the driver seat. If there
is any type of electrical system failure,
always check the fuses first.

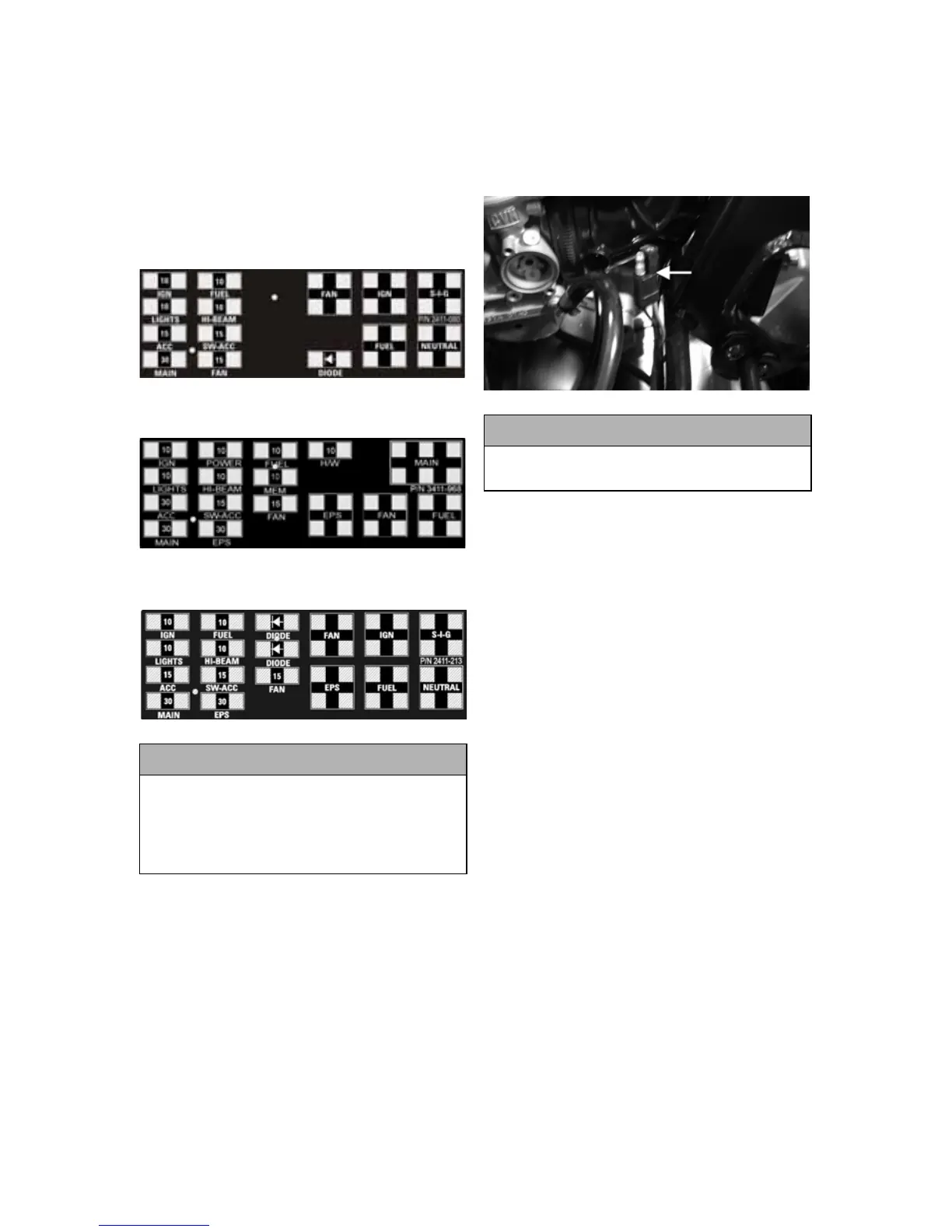

NOTE: To remove the fuse, com-
press the locking tabs on either
side of the fuse cover and lift out.
2411-080
3411-968
2411-213
Electrical Output
Terminals
Two output terminals for electrical acces-
sories are located on the front and rear
wiring harnesses. Two accessory plugs
are located on the dash board.
NOTE: The rear output terminal is
located beneath the center console
near the right-side of the throttle
body. The front output terminal is
located beneath the dash board in
front of the left-side accessory
plug.
PR049A
Storage Compartment/
Tools
A basic tool kit (located under the passen-
ger seat) is provided with this vehicle.
Maintain the tool kit with the vehicle at all
times.
This vehicle has a storage compartment
within the dashboard and a storage com-
partment beneath the hood. To access the
compartment located under the hood,
release the two hold-down straps at the
rear of the hood and tilt the hood forward.
Seat Belts
Inspect the seat belts for frayed or torn
edges. Check that the belts extend and
retract smoothly and fully without binding
or catching. Check that the latch plate locks
securely in place in the buckle and releases
when the button is pressed. Wash off any
dirt and make sure the retractors are free of
debris. Do not grease or oil the retractors.
Occupant Side
Restraints
Inspect the occupant side restraints for
frayed edges, cuts, or separation of
seams. Wash off any dirt and make sure
the latch straps lock securely into the foot
restraints with straps taut.
CAUTION
Always replace a blown fuse with a
fuse of the same type and rating. If
the new fuse blows after a short
period of use, consult an authorized
Arctic Cat dealer immediately.
