Arctic Cat Prowler - Diagnostic Trouble Codes

31
9. Drive Select Indicator - Displays
4WD when selected by the drive
select switch or when the differential
lock is engaged.
10. Seat Belt Reminder Indicator - Each
time the ignition switch is turned ON,
the indicator will illuminate on the
speedometer for 8-10 seconds to remind
occupants to secure their seat belts.

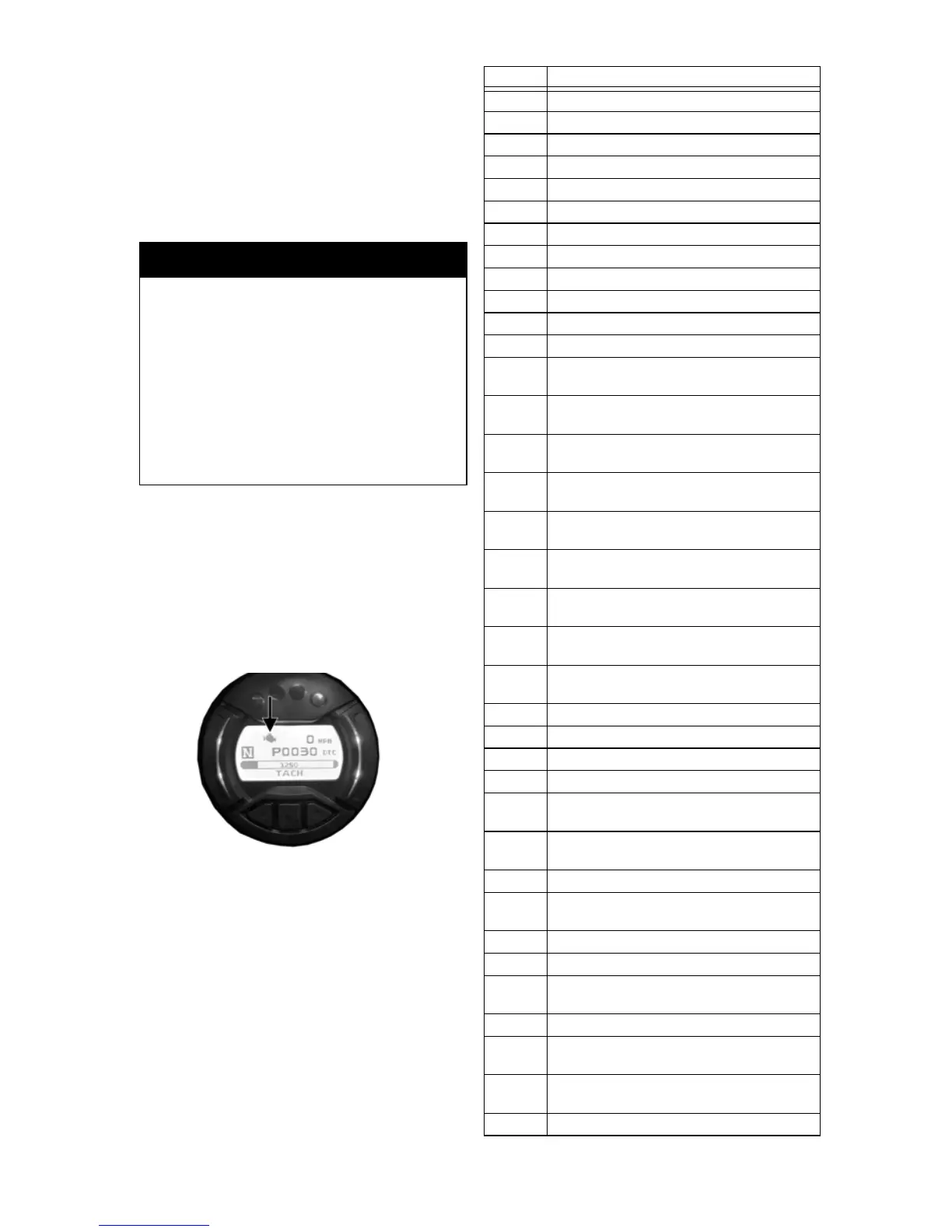

11. EFI Malfunction Indicator - A diag-
nostic code (see list below) and
engine icon will be displayed on the
LCD whenever an EFI error is
detected. The LCD will be normal,
but the code and engine icon will con-
tinue to be displayed on the LCD
until the error is corrected.
WT114A
 NOTE: Take the vehicle to an
authorized Arctic Cat dealer to have
the error corrected and the system
error reset as soon as possible.
Diagnostic Trouble Codes
! WARNING
The seat belt indicator is only a
reminder and automatically extin-
guishes after 8-10 seconds. It does
not indicate that seat belts are prop-
erly secured. It is the operator’s
responsibility to ensure all vehicle
occupants are properly seated with
seat belts secure and doors are prop-
erly latched. Serious injury or death
could occur as a result of falling out-
side a moving vehicle.
Display Fault Description
C0063 Tilt Sensor Circuit High
C0064 Tilt Sensor Circuit Low/SG/Open
C1263 Backup/Reverse-Light Circuit Open
C1264 Backup/Reverse-Light Circuit High
C1265 Backup/Reverse-Light Circuit Low/SG
C1400 Fuel Level Sender Open
C1418 Memory Power Failure
P0030 O2 Heater Intermittent/Open
P0031 O2 Heater Low/SG
P0032 O2 Heater High/SP
P0107 MAP Sensor Circuit Low/SG/Open
P0108 MAP Sensor Circuit High/SP
P0112 Intake Air Temp Sensor Circuit Low/
SG
P0113 Intake Air Temp Sensor Circuit High/
Open
P0114 Intake Air Temp Sensor Circuit Inter-
mittent
P0116 Engine Coolant Temp Sensor Circuit
Range/Performance
P0117 Engine Coolant Temp Sensor Circuit
Low/SG
P0118 Engine Coolant Temp Sensor Circuit
High/Open/SP
P0119 Engine Coolant Temp Sensor Circuit
Intermittent
P0121 Throttle Position Sensor Range/Per-
formance
P0122 Throttle Position Sensor Circuit Low/
SG
P0123 Throttle Position Sensor Circuit High
P0130 O2 Sensor Intermittent/Open
P0131 O2 Sensor Low/SG or Air-Leak
P0132 O2 Sensor High/SP
P0171 O2 Feedback Below Minimum Correc-
tion
P0172 O2 Feedback Exceeds Maximum Cor-
rection
P0219 Engine Over-Speed Condition
P0231 Fuel Pump Relay Circuit Low/SG/
Open
P0232 Fuel Pump Relay Circuit High
P0233 Fuel Pump Relay Circuit
P0261 Cylinder #1 Fuel injector Circuit Low/
SG
P0262 Cylinder #1 Fuel injector Circuit High
P0263 Cylinder #1 Fuel injector Balance/
Open
P0264 Cylinder #2 Fuel injector Circuit Low/
SG
P0265 Cylinder #2 Fuel injector Circuit High
